Volk Eye Check - VOLK

Volk Eye Check

Objective data. Faster decisions. Superior care.

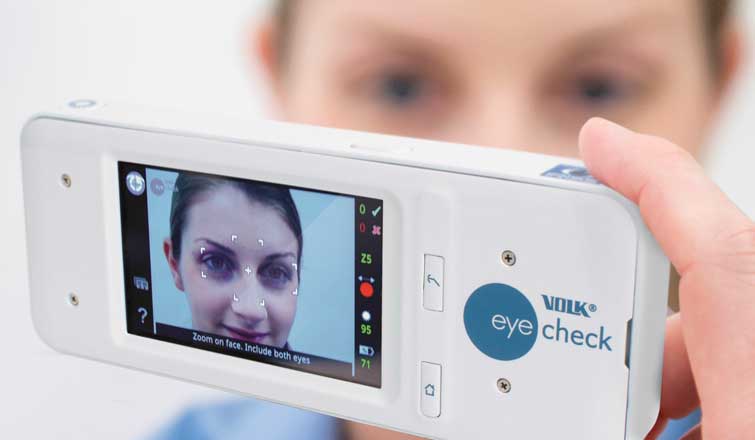

Volk Eye Check is an electronic handheld ocular measurement device providing real time, objective data to enable smarter, faster decisions.

Eye Check can be incorporated seamlessly into your environment, bringing instant value as a simple method for quick, costeffective ocular measurements.


USB and WiFi connectivity enable real time transfer of results to your PC for documentation of patient records.


Ease Of Use.

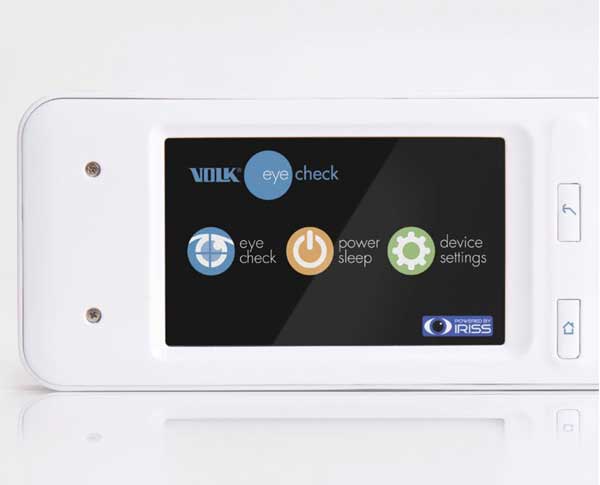

Familiar interface with touchscreen, patient fixation and point and click results.

Contact Lens Fitting

Over 20% of patients are candidates for specialty fit contact lenses. Research data shows that of 37- 38 million contact lens users in the US1, 16% or 6,000,000 patients drop out of contact lens wear annually2. Of those, an estimated 750,000 patients choose to stop wearing contact lenses due to discomfort caused by poorly fitting lenses. Eye Check can help identify specialty lens candidates and provide specific measurements to facilitate proper lens fitting.


Notification of software upgrades ensures you benefit from the latest features.

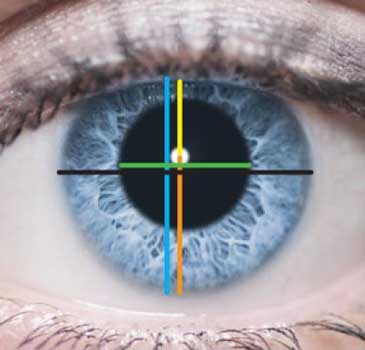

Measurement parameters taken to facilitate lens fitting are:

  • Horizontal Visible Iris Diameter (HVID) to assess correct contact lens diameter.
  • Pupil diameter and eccentricity for GP lens fitting and multi focal contact lens choice
  • Lid margin to pupil margin for bifocal lens fitting

General Patient Care

Used as a routine complementary diagnostic and data gathering tool, Eye Check measurements may be usefully gathered and recorded to track patient ocular health over time.


“I used Eye Check as a diagnostic tool to help with my patient management. Plus it helped me to understand how I could improve the fitting of patient’s contact lenses.”

Erik Roberstad, Interoptik, Tonsberg, Norway

Pediatric Examination

Eye Check’s consistent outputs provide objective accurate measurements. Ease of use enables quick analysis of uncooperative patients to support other examination methods such as the cover test.

  • Objective documentation of strabismus amplitude
  • Additional data for detection of other abnormalities

Other applications include Neuro-Ophthalmology, Endocrinology and Oculoplastics

Accurate Output

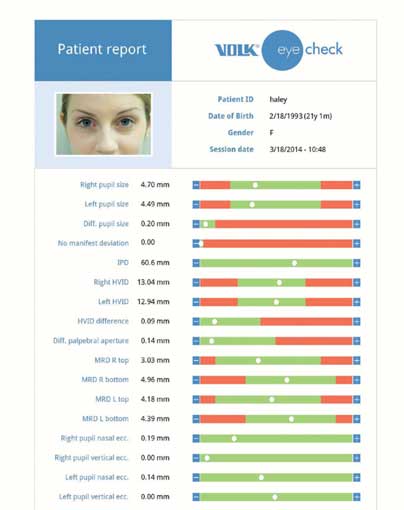

Eye Check instantly produces a report detailing all measurements.

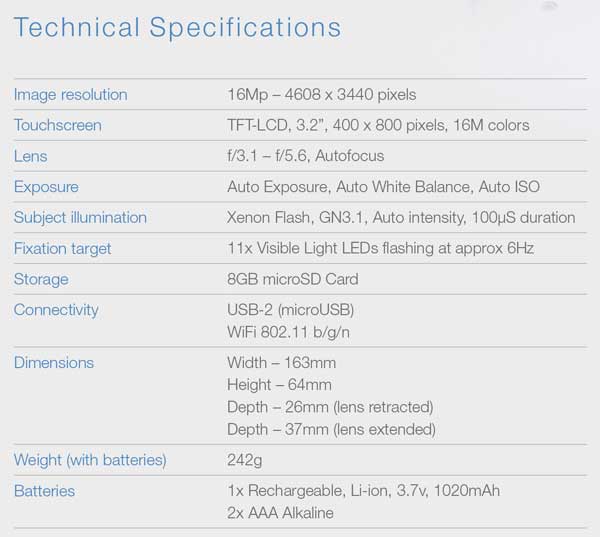

Technical Specifications

Image resolution 16Mp – 4608 x 3440 pixels
Touchscreen TFT-LCD, 3.2”, 400 x 800 pixels, 16M colors
Lens f/3.1 – f/5.6, Autofocus
Exposure Auto Exposure, Auto White Balance, Auto ISO
Subject illumination Xenon Flash, GN3.1, Auto intensity, 100µS duration
Fixation target 11x Visible Light LEDs flashing at approx 6Hz
Storage 8GB microSD Card
Connectivity USB-2 (microUSB)
WiFi 802.11 b/g/n
Dimensions Width – 163mm
Height – 64mm
Depth – 26mm (lens retracted) Depth – 37mm (lens extended)
Weight (with batteries) 242g
Batteries 1x Rechargeable, Li-ion, 3.7v, 1020mAh 2x AAA Alkaline
  • Volk EyeCheck Introduction

  • Volk EyeCheck User Interface

  • Volk EyeCheck Setting Up The Device

  • Volk EyeCheck Capturing A Patient Session

  • Volk EyeCheck Reviewing Patient Data

  • Volk EyeCheck USB Data Transfer

  • Volk EyeCheck Storing The Device and Customer Care
