Image Inverter and Lens Set HHSM-6622

New Product Microscopy Inquiry About this product

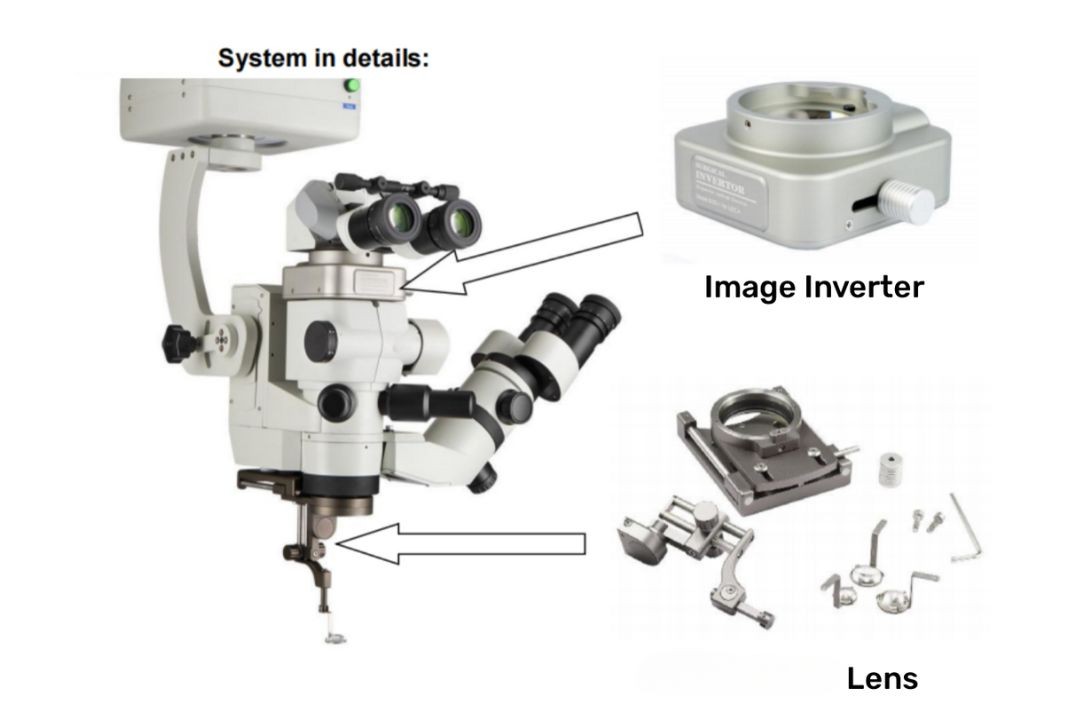

Our system includes a Lens Set and Image Inverter for retinal vitreous surgery. Image Inverter is designed to upright image for doctor, when he does retinal surgery. There are 3 lenses provided in a standard Lens Set.

Features:

All durable metal materials.
Anti-mildew and anti-moisture.
Simple installation and operation, no focus adjustment.
Compact and generous design.
Light weight for easy carrying.
Workable with Stereo indirect Ophthalmoscope to meet different posterior surgery requirements

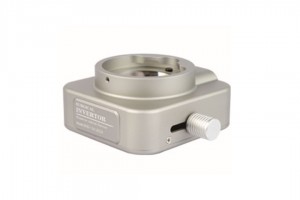

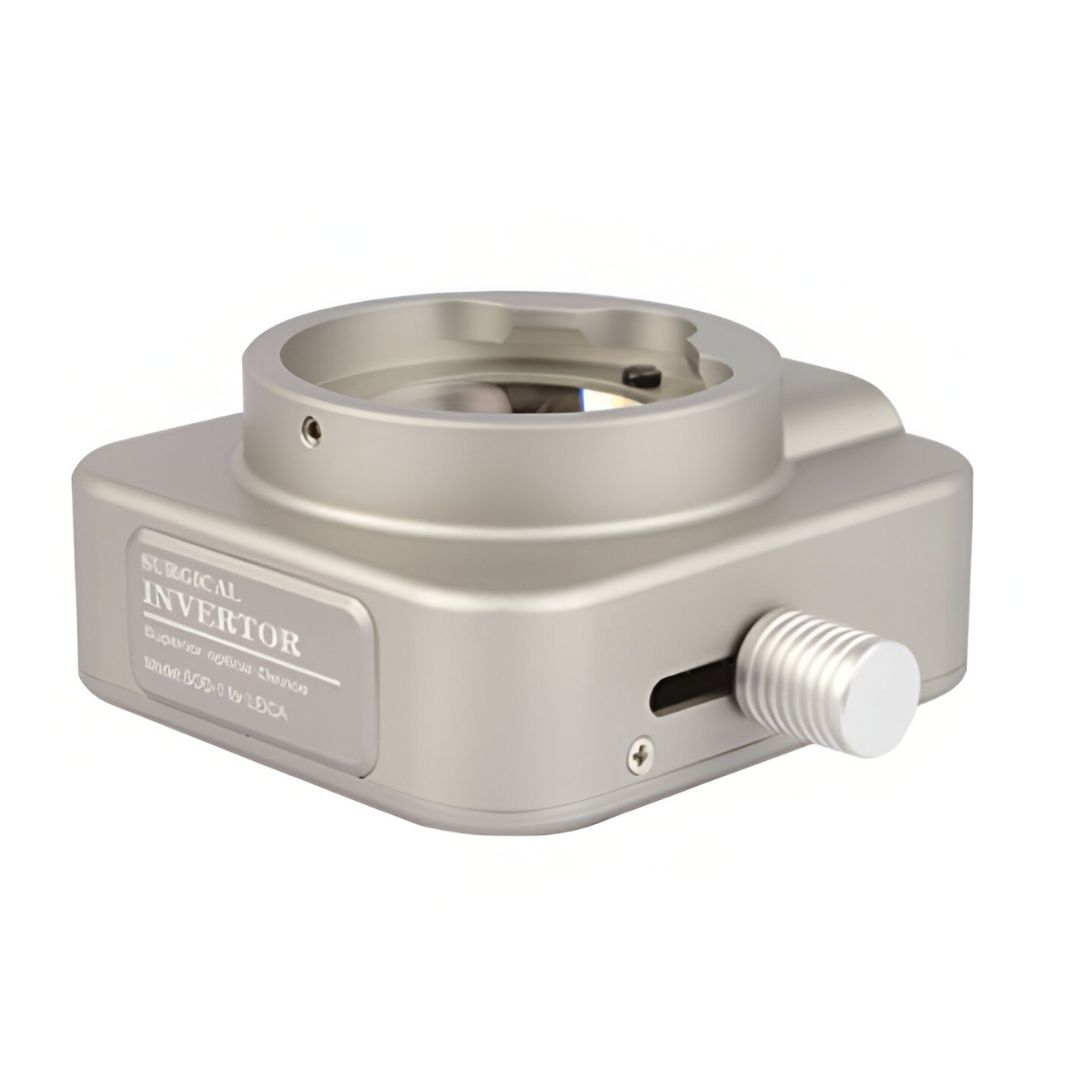

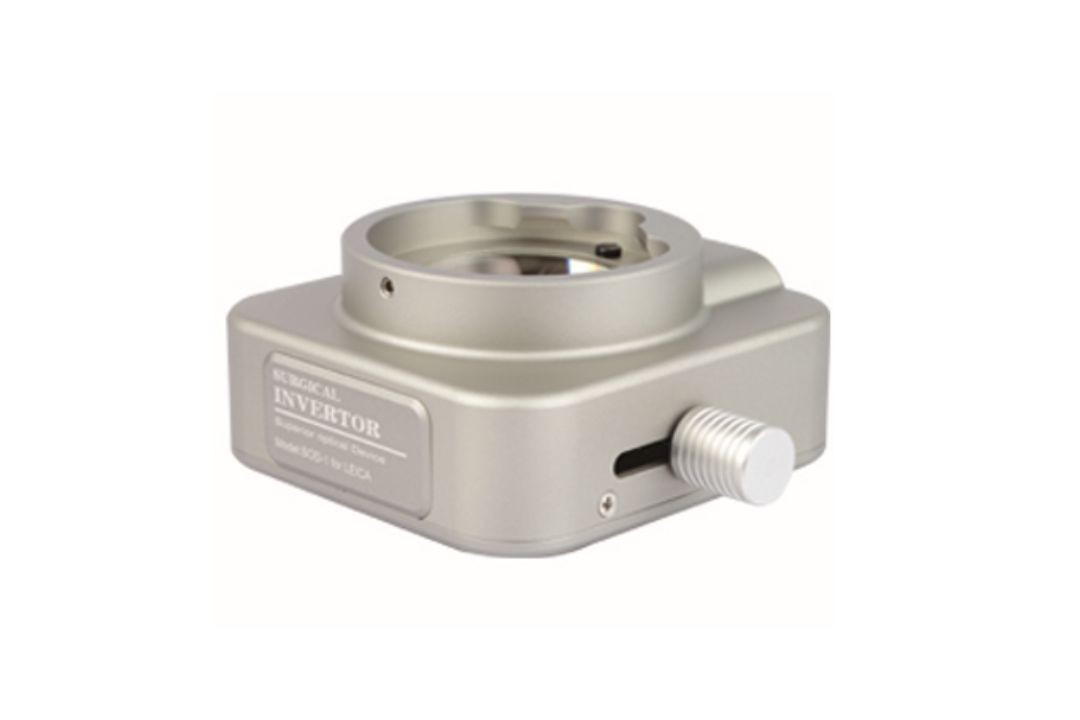

lmage lnverter

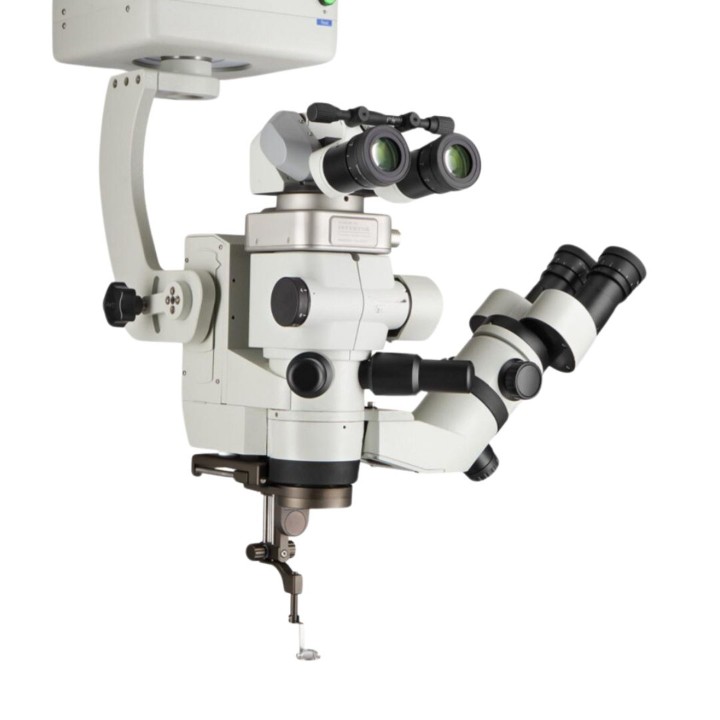

Our image inverter is a kind of adapter, used to put between Objective Lens and Eyepieces Lens of an Operating Microscope to provide an upright image for the observer, while he is doing retina! vitreous surgery.
The image can be inverted by angle of 180º.
There is a thick metal stick to open and close, invert by moving up and down, without any focus adjustment needed. The operation is quite easy and convenient, even for beginners.
lt is applicable to ZEISS, TOPCON, MOLLER, ALCON, TAKAGI,INAMI, LEICA & VISUMATE and many other Ophthalmic Operating Microscopes.

Ophthalmic Operating Microscopes.

Related Matching Models

Brands	Models
Leica	M500, M501,M520, M620, M650, M651, M655, M690, M695, M820, M822, M840, M841, M844.
Zeiss	Lumera,Lumera T, MDI, MDO, MDU, OPMll,OPMl6, OPMl6-CFC, OPMl6S,OPMl6-SFC , OPMl6-SFR ,OPMl6-CH, OPMIPico,OPMIVa- no, OPMIVISU 150, OPMIVISU 160, PMIVISU 200, OPMIVISU 210.
Topcon	OM 800 series,OMS 710, OMS 90.
Moller-wedel	Hi-R 900
Takagi	OM-18, 0M-9
Alcon	LuxOR (lllumin-i)
lnami	L-0980A
Prescott	OMNl- FLEX
Huvitz	HOM-700
Visu Mate	SM-2000L, SM-3000L

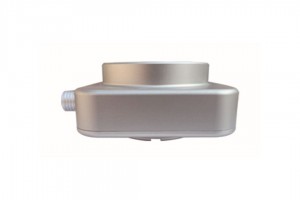

Front

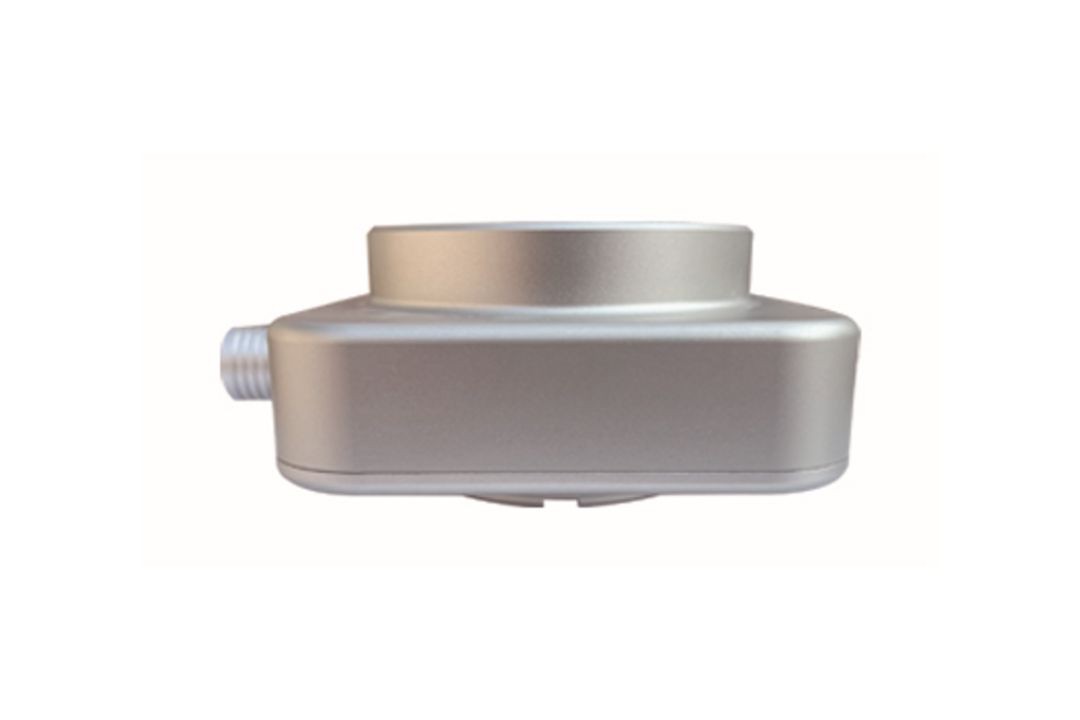

Side

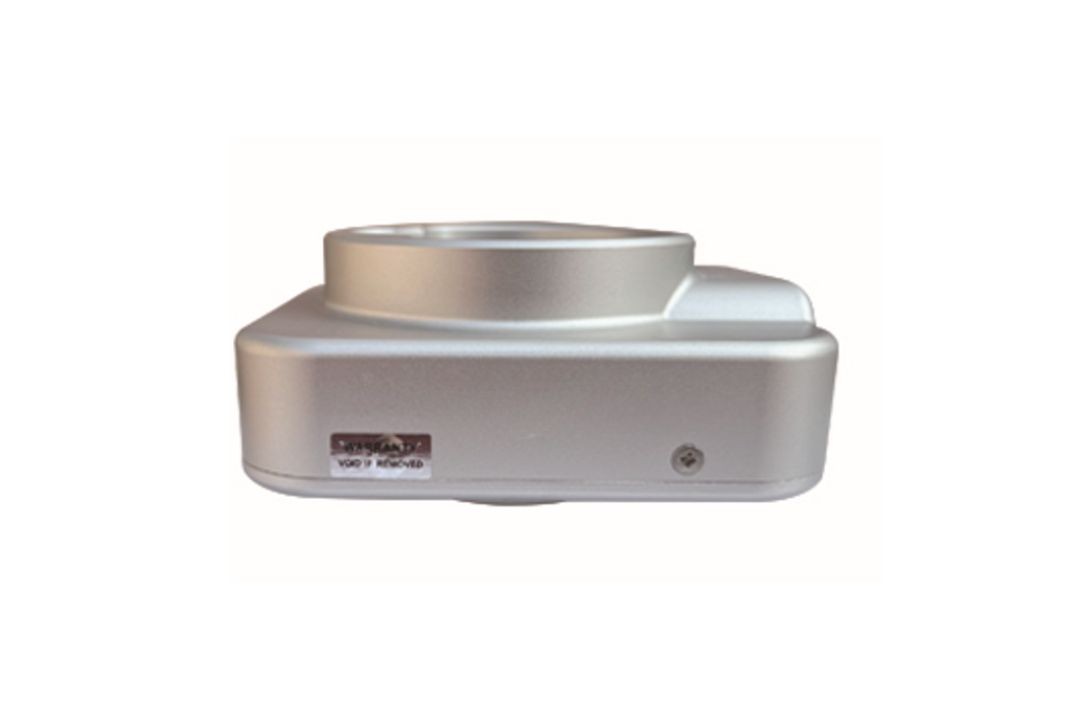

Back

Specifications: HHSM-6622

Lens (3 pieces)	Field of View (F175mm/F200mm)	lmage Magnification	Lens Diameter
No.l Lens	102º/120º	0.34X	19mm
No.2 Lens	95º/112º	0.42X	13mm
No.3 Lens	80º/95º	0.74X	19mm
