Reliable. User-friendly.

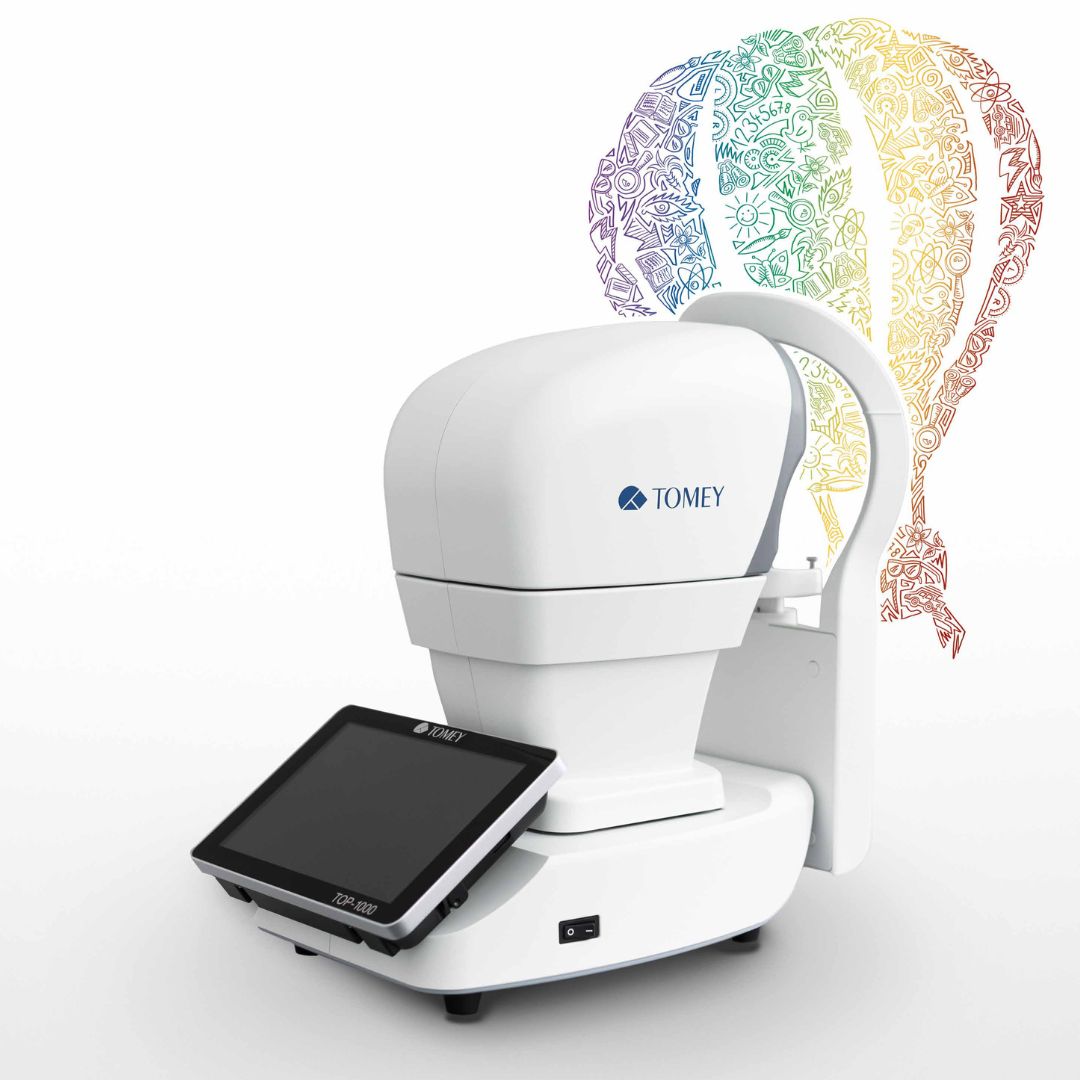

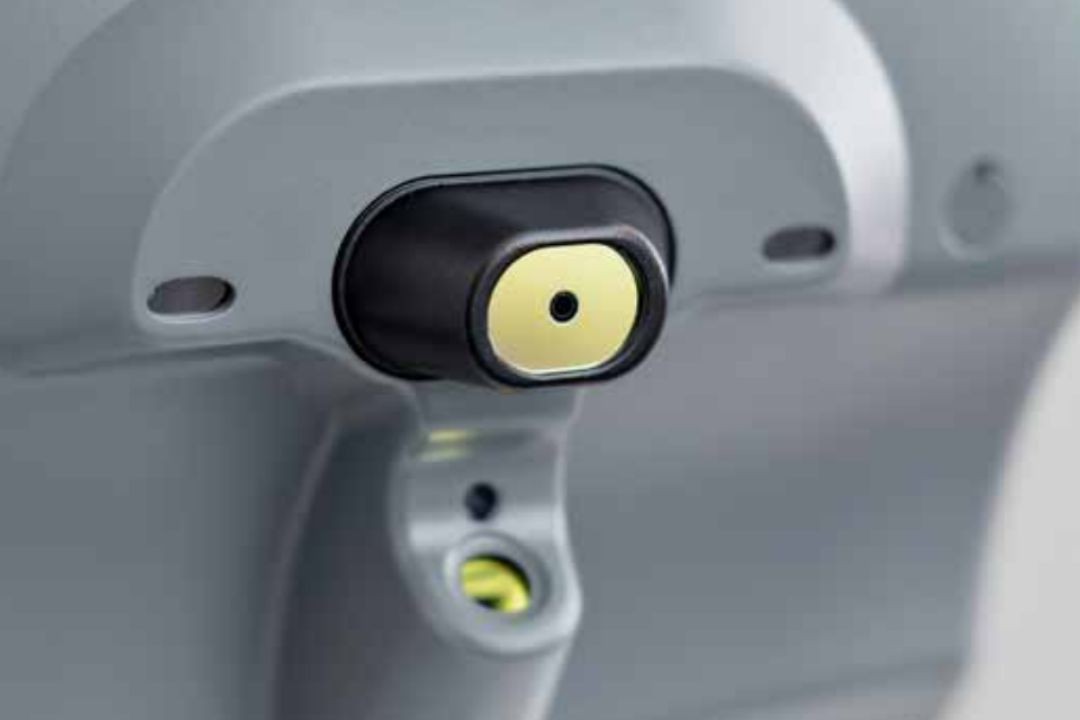

By combining soft air puffing, 3D auto-tracking, and a Scheimpflug camera, TOP-1000 delivers excellent IOP measurements that are corrected for central corneal thickness.
The right amount of air is determined for each individual eye to make the IOP measurement as soft as possible. Thanks to 3D auto-tracking, measurement is extremely fast, easy, and efficient.

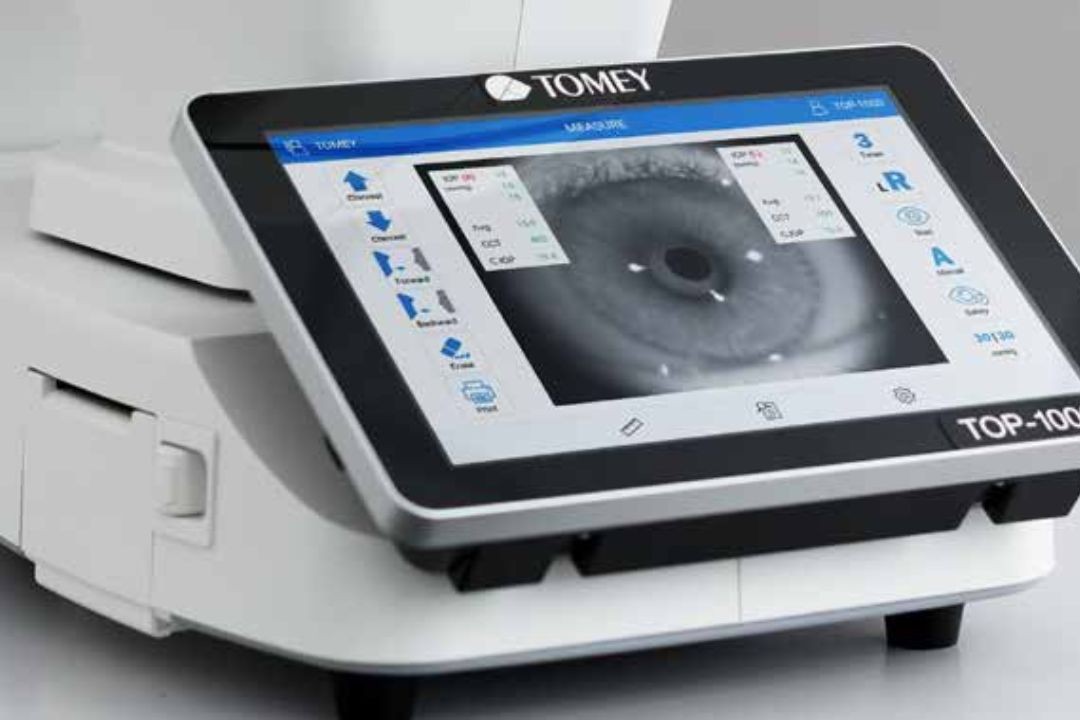

All controls are displayed on the 10.1” LCD touch screen, which is very responsive and makes it easy to access the patient database.

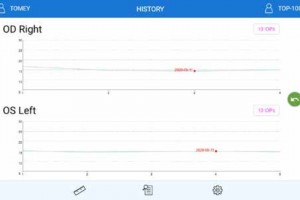

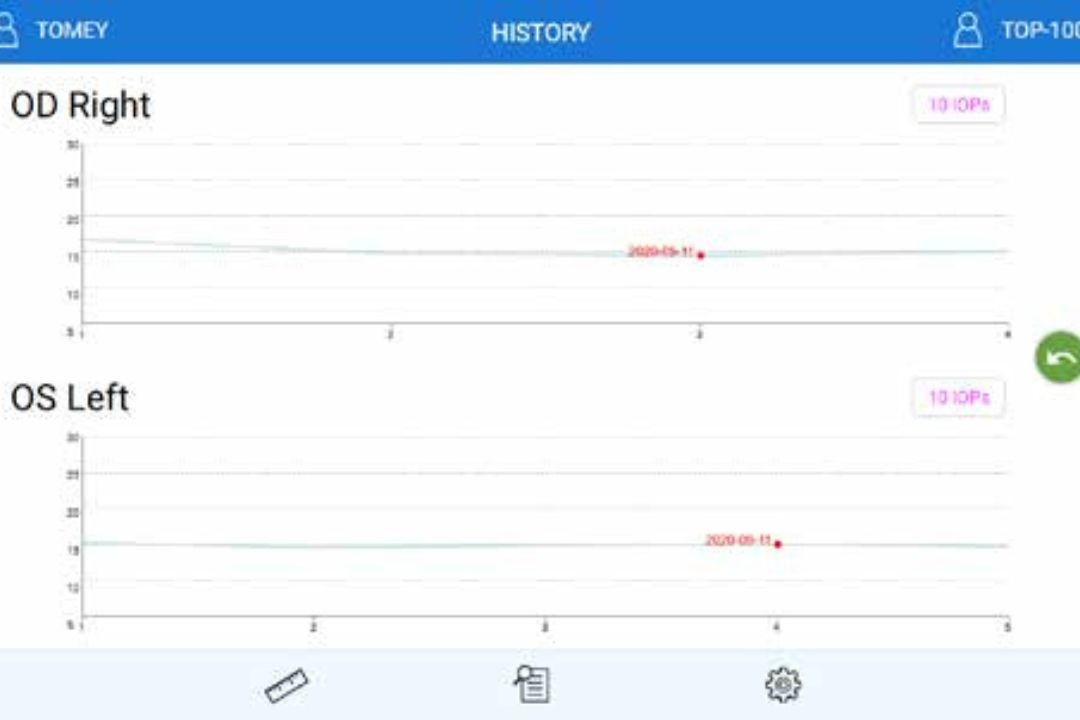

TOP-1000 has a built-in printer with an auto-cutter, an RS-232 export function, and an integrated data base for displaying the patient’s history of IOP
TOP-1000 provides auto CCT measurement using the Scheimpflug camera’s technology. TOP-1000 displays the corrected IOP value that takes the central corneal thickness into account.
| Measurement range | 1–60 mmHg |
|---|---|
| Measurement range setting | Auto/30 mmHg/60 mmHg |
| Measurement principle | Air puff method |
| Display units | mmHg/hPa |
| Working distance | 11 mm |
| Measurement range | 400–800 μm |
|---|---|
| Measurement principle | Slit image on central cornea |
| Light source | Blue LED |
| Measurement mode | Fully automatic/Automatic/Manual |
|---|---|
| Alignment | Fully automatic 3D tracking |
| Chin rest | Motorized |
| Display | 10.1” touch LCD screen |
| Printer | Thermal line printer with auto-cutter |
| Eye fixation target | Internal LED fixation light |
| Operation movement range | Front/Back: 40 mm left/Right: 90 mm Up/Down: 30 mm |
| Chin-rest movement range | Up/Down: 70 mm |
| Interface | USB, RS-232 |
| Dimensions WDH | 282 mm x 500 mm x 500 mm |
|---|---|
| Weight | 17 kg |
| Power supply | AC 100 V to 240 V (1.1 A~1.9 A), 50/60 Hz |
