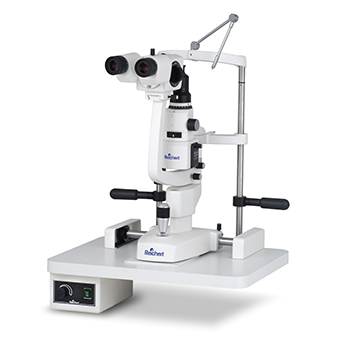

XCEL 255 Slit Lamp

The XCEL 255 is wide-field optics provide excellent clarity and detail. The compact design, combined with conveniently placed controls, make this slit lamp a pleasure to operate.

The outstanding optical performance, features, and quality, combined with an affordable price, make the XCEL 255 slit lamp a compelling value.

Compact design
Wide-Field optics
Halogen lamp
10X, 16X, 25X magnification
Feather-touch XYZ joystick

Specifications: XCEL 255

Catalog Numbers:
15120 XCEL 255 Slit Lamp
12597 CT 210 Tonometer Mount
12598 CT 210 Tonometer
15122 1 port beam splitter
15121 6V 20W Halogen Lamp
12596 Tonometer Prism

Microscope: Galilean
Magnification Change: 3 step rotation
Eyepiece: 12.5x
Magnification Ratio: 10x, 16x, 25x
PD Range: 48.5 - 80
Dioptric Adjustment: ±5
Slit Width: 0 - 13.5mm
Slit Length: 0 - 13.5 mm
Slit Apertures: 0.6, 5.8, 9, 13.5 mm
Slit Rotation: 0 - 180°
Filters: Red free, cobalt blue, heat absorbing
Movement Ranges:
Longitudinal (in/out) 90 mm
Lateral (left/right) 107 mm
Vertical (up/down) 30 mm
Chin Rest Range 80 mm
Illumination: 6V 20W halogen
Voltage: 90 - 250 VAC
Frequency: 50/60 Hz
Table Base Dimensions: 465 x 316 mm
Weight: (packed) 52 lbs. (23.64 kg)
