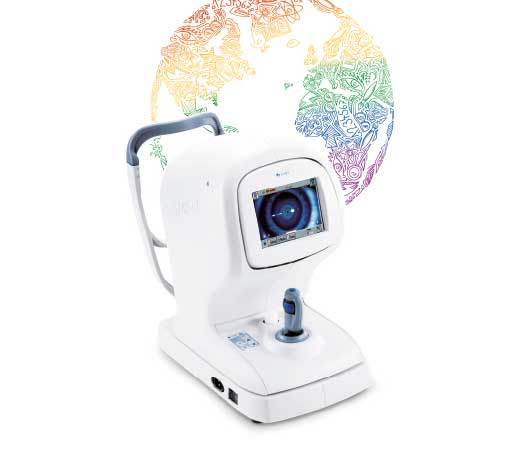

Tomey Topographic Modeling System TMS-5

SCHEIMPFLUG TOPOGRAPHER

The Tomey Topographic Modeling System TMS-5 is a hybrid anterior segment analyzing system consisting of a Placido ring topographer and a 3D Scheimpflug camera. It is designed for cross-sectional imaging of anterior segment components of the human eye, including the anterior and posterior surface of the cornea and the anterior chamber, as well as dimension measurements such as curvature, length, and area by computed analysis

The prominent features of the TMS-5 are the high speed Scheimpflug camera that takes only 1.0 sec. /exam, which can be very beneficial in preventing motion artifacts, and a high speed computer processing algorithm that reduces the time it takes to delineate the images.

Light condition independent measurement analysis:

Due to its superior light cone design and the resulting very short working distance, the TMS-5 creates its own measurement environment – for both, topography and Scheimpflug imaging. The great advantage is that both measurements work independently of the surrounding light conditions.

 High speed measurement:

The very small diameter of the TMS-5 light cone makes the traveling distance of the Scheimpflug measurement camera much shorter than conventional placido disc based systems. As a result, the measurement time is extremely reduced. Therefore any artifacts caused by eye movements are minimized.

 Advanced IOL calculation:

The topographic map achieved by the TMS-5 can be transferred to the OKULIX software. OKULIX runs as a standard application to the TMS-5 and provides an easy way of IOL power calculation without using traditional formulas.

By means of Ray tracing OKULIX precisely calculates the necessary IOL power in all eye conditions even after refractive surgery or keratoplasty.

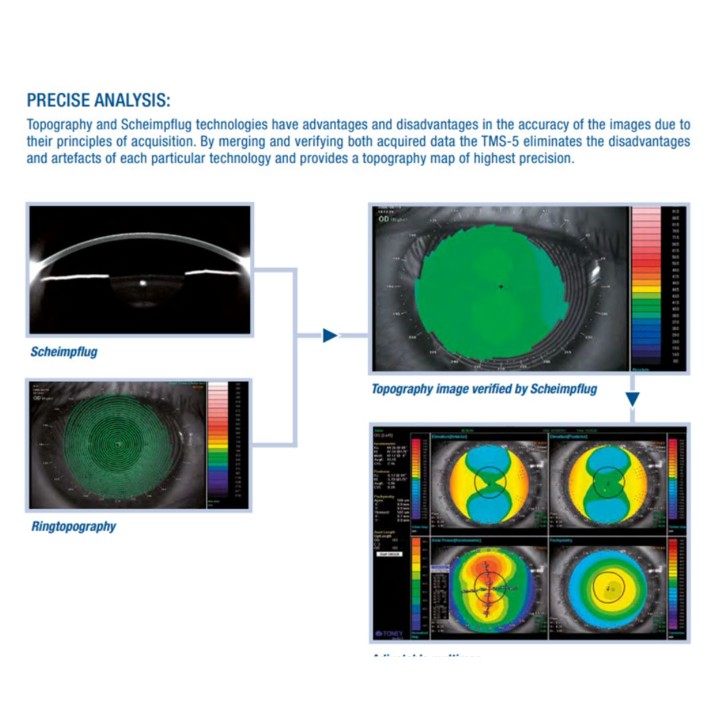

• Placido Topography verifies Scheimpflug imaging
• High resolution
• Anterior + posterior map

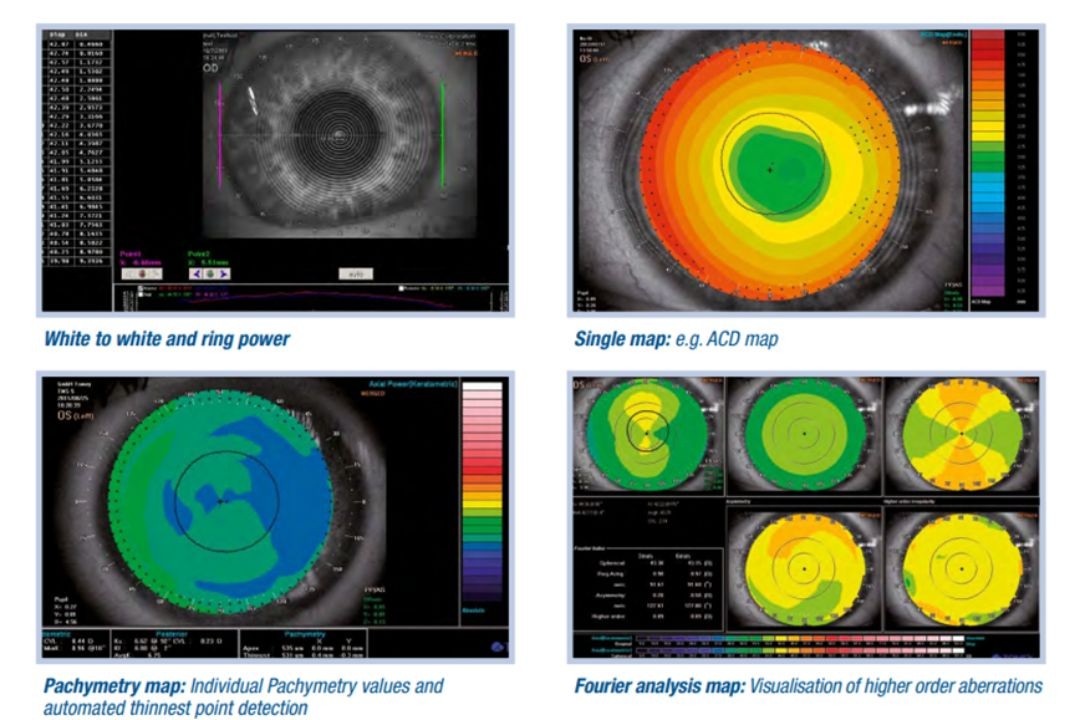

• Pachymetry map
• Anterior chamber depth
• High speed measurement: 0.5 sec.

Operates in all light conditions

High-speed

Scheimpflug camera with a measurement time of 0.5 seconds per image (4 images maximum per eye)

• Placido ring topographer with a measurement range of 5.5-10.0 mm (spherical) and an accuracy of ±0.02 mm (spherical).
• Minimum/maximum ring diameter: Ø0.35-10.7 mm/Ø0.45-11.7 mm (25 rings/31 rings) or Ø0.46-8.8 mm/Ø0.57-10.9 mm (25 rings/31 rings) for 43D measurement.
• Measurement points: up to 6,400/7,300 maximum (25 rings/31 rings).
• Scan speed: 64 flames/1.0 second (default) or 32 flames/0.5 second.
• Image capturing: auto or manual.
• Experience the future of eye care with our advanced technology that offers remarkable benefits:

 High-Speed Measurement Capabilities:  Say goodbye to motion artifacts and hello to enhanced patient comfort. Our system ensures quick and accurate measurements, making the examination process smoother for both patients and practitioners.

Advanced Computer Processing Algorithm: Our cutting-edge algorithm delivers rapid image delineation, allowing for swift analysis and improved diagnostic accuracy. This means you can make informed decisions faster than ever before.

 Comprehensive Anterior Segment Analysis: By combining Placido ring topography with Scheimpflug technology, we provide an in-depth analysis of the anterior segment. This powerful combination equips you with the insights needed for precise assessments and tailored treatment plans.

Compatibility

The TMS-5 seamlessly integrates with conventional TMS systems, ensuring backward compatibility. This means you can effortlessly import patient data without any disruption to your workflow. Embrace innovation without sacrificing the familiarity of your existing systems!
Upgrade your practice today and elevate the standard of care you provide.
