ML1 Manual Lensometer® - Reichert

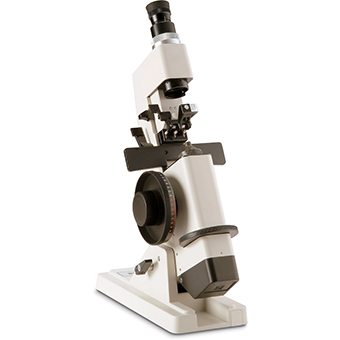

ML1 Manual Lensometer®

The Reichert ML1 Manual Lensometer enables you to measure a variety of lenses accurately including single vision, bifocal and contact lenses.

LED Illuminated Target

The ML1 is LED light source ensures that you will never need to change bulbs again. The comfortable glare-free, green illumination and sharp mires make measurements easy.


Battery operated and completely cordless, the ML1 Manual Lensometer gives you total mobility and no cord clutter. The LED is low power consumption and auto sleep feature ensure a long battery life. The standard AAA batteries are inexpensive and available everywhere.

Unrestricted tilting angle

The ML1 can be adjusted to any angle, providing maximum convenience while measuring. Full 90 degrees tilting allows for easy measurement of contact lenses.

Accepts large diameter lenses

The ML1 can measure lenses from 24 to 90mm in diameter and uses a bold crossline target for easier reading.

Prism compensator

The prism compensator extends the range to 15 diopters for more flexibility.

Reichert Quality

The Reichert name ensures a high quality, reliable instrument that you can count on every time.

Specifications: ML1


  • Catalog Number: 15110 ML1 Lensometer
  • Vertex Power:
    Range +25 to -25 diopters
    Step 0.125 diopters up to ±3 diopters
    0.25 diopters beyond ±3 diopters
  • Prismatic Power:
    Range 5 prism diopters
    Step 0.5 prism diopters up to 2 diopters
    1 diopter beyond 2 diopters
  • Cylindrical Axis: Range 1 to 180 degrees, step 1 degree
  • Target Method: American Crossline
  • Lens Diameters: 24 to 90 mm
  • Tilting Angle: 30 to 90 degrees
  • Eyepiece Focusing: +7D to -10D
  • Light Source: LED
  • Dimensions: 130 x 475 x 330mm. (W x H x L)
  • Weight: 10.8 lbs. (4.9 kg)
  • Standard Accessories: 1 Dust cover, 1 contact lens holder
  • Prism Compensator:
    Diopter Range: 15 diopters
    Graduations: 1 diopter step
    Angle scale: 0-180 degrees
    Graduations: 5 degrees
