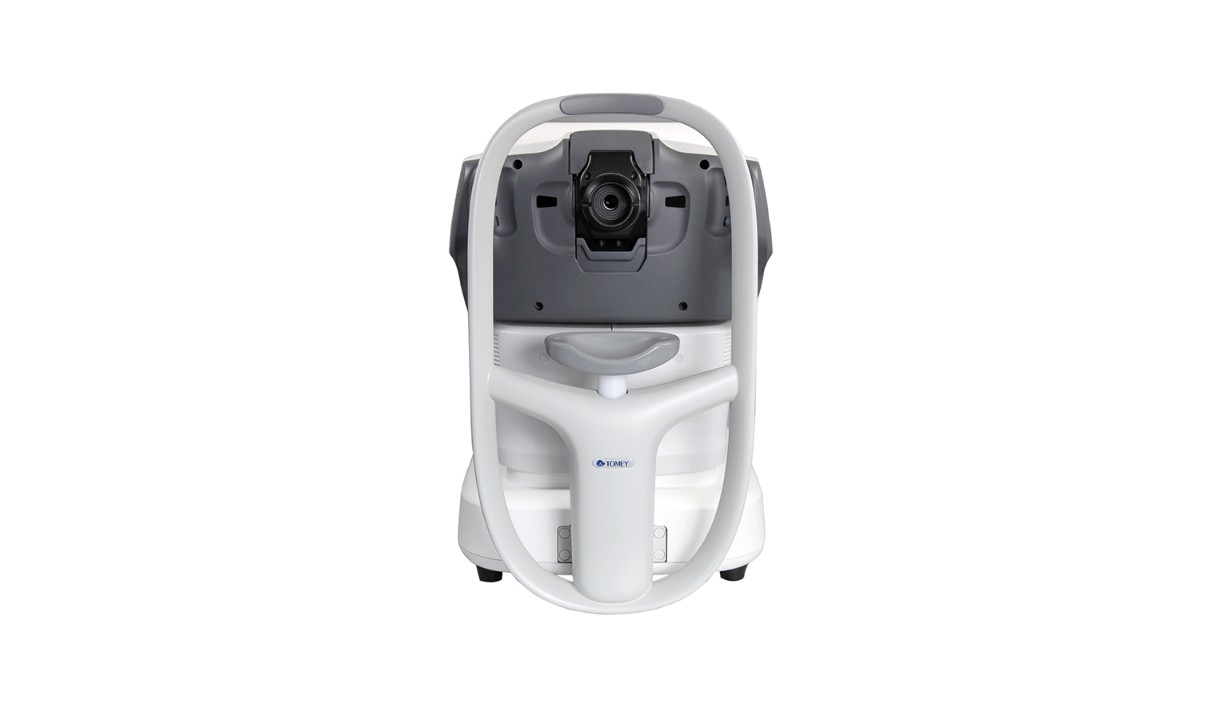

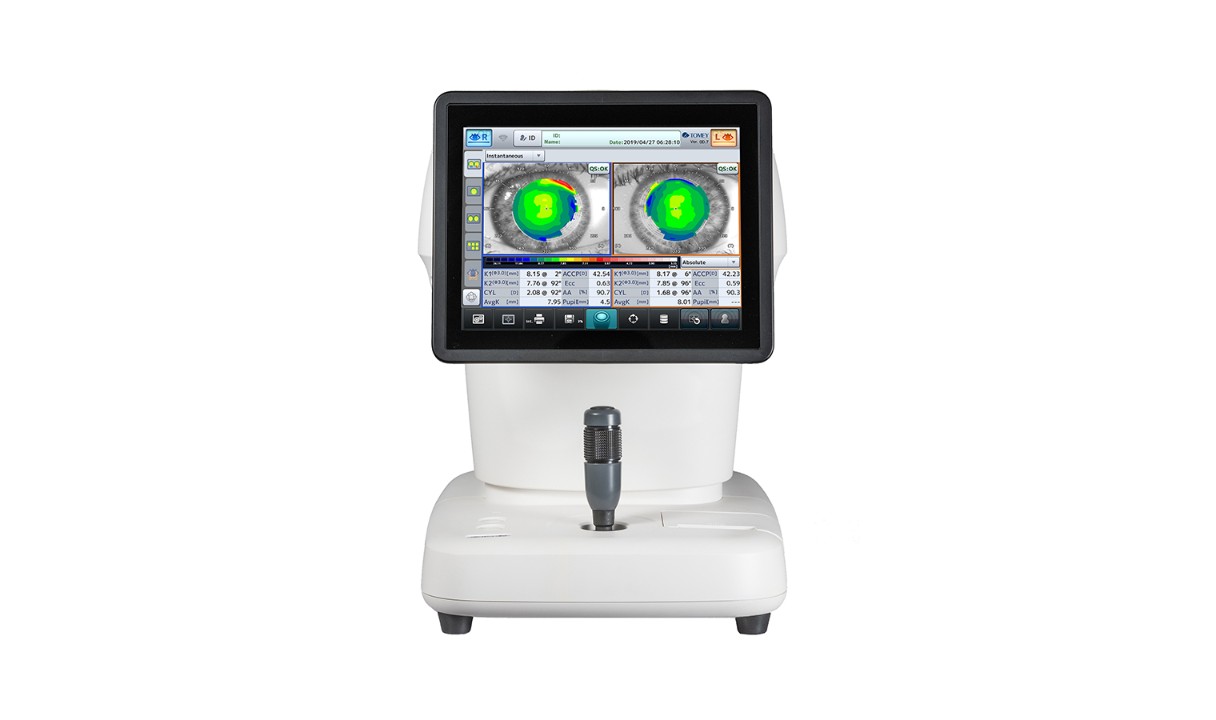

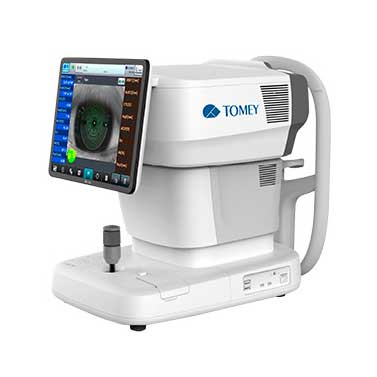

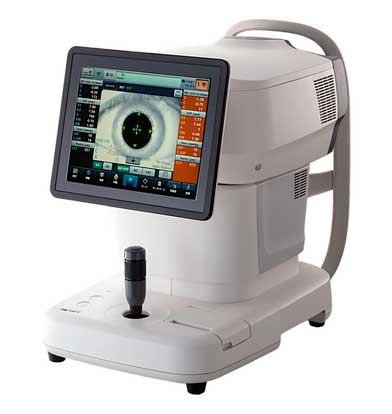

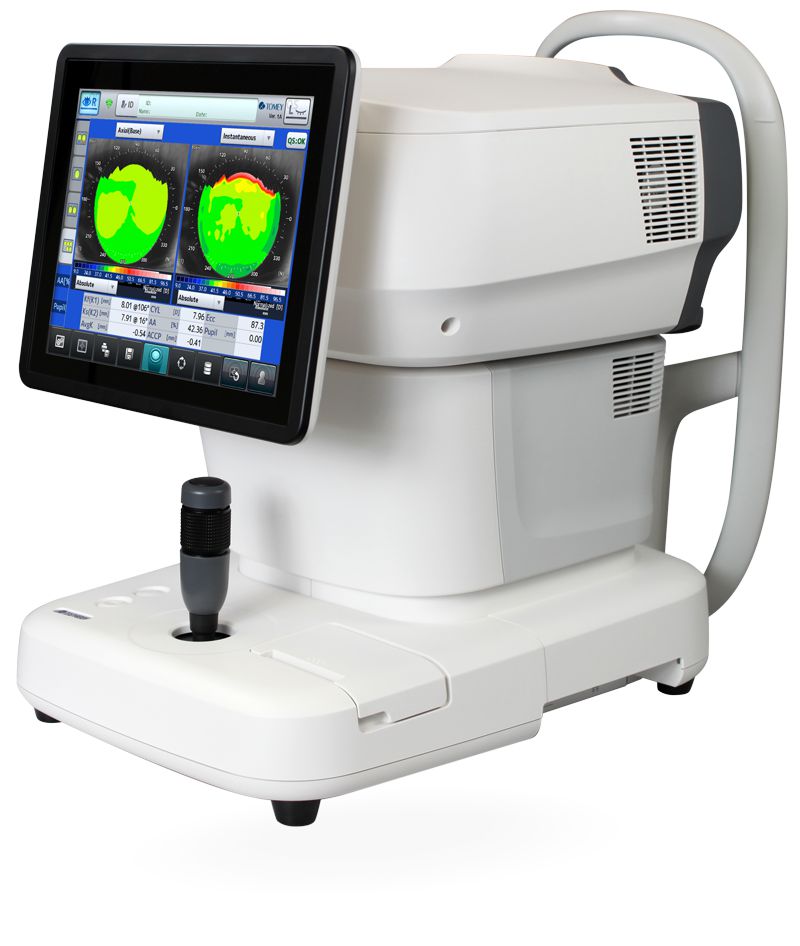

MR-6000 Multifunction Refractometer

6 systems in one product






Dry Eye Analysis

The MR-6000 is a smart combination of six different eye examinations. This means, that together with the advantage of automatic alignment, the MR-6000 speeds up your workflow and makes it more efficient.

the fast exchange of measurement cones in less than four seconds reduces your examination time down to just 90 seconds for refraction, keratometry, tonometry, pachymetry, and topography.

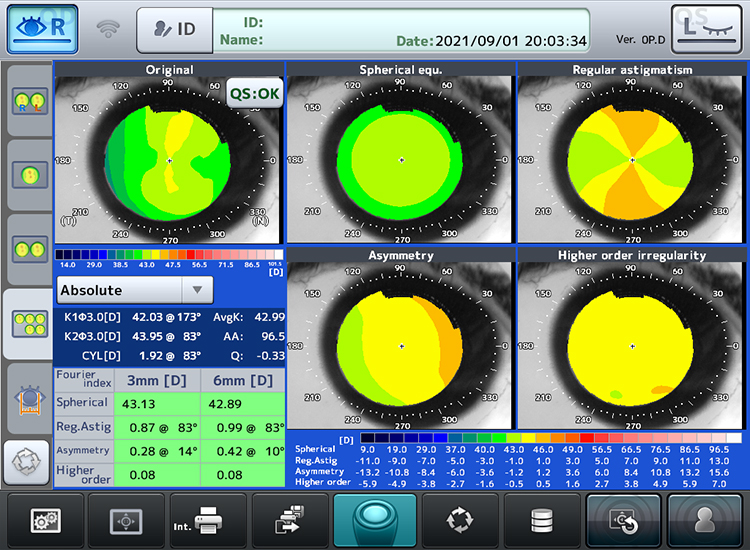

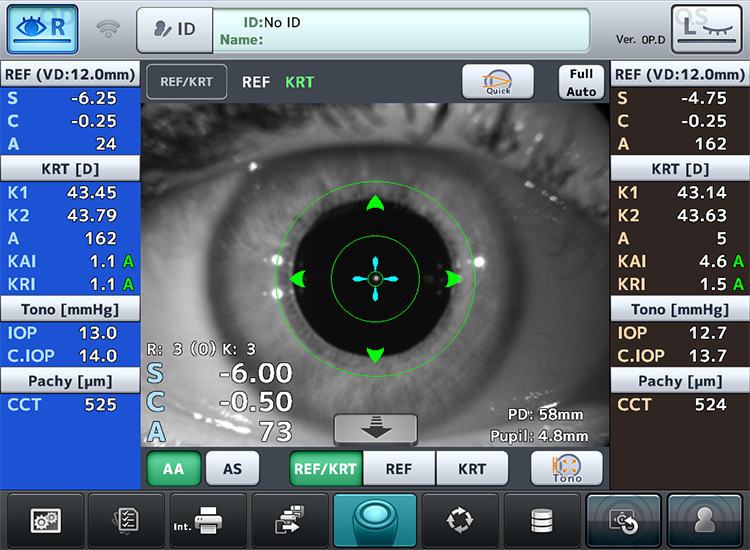

It is a combination of 6 systems in one product: 1. Topography, 2. Refraction, 3. Keratometry, 4. Tonometry, 5. Pachymetry, 6. Dry eye analysis tool.

Advantages of MR-6000:

  • Easy operating: Auto alignment and familiar user interface
  • Space saving: Five systems in one device
  • Time saving: Change between the different modes in just 3 seconds
  • High accuracy: Combined data of different measurements for precise results (e.g. Tono + Pachy)
  • Improved features: friendly air puff control and enhanced refraction function

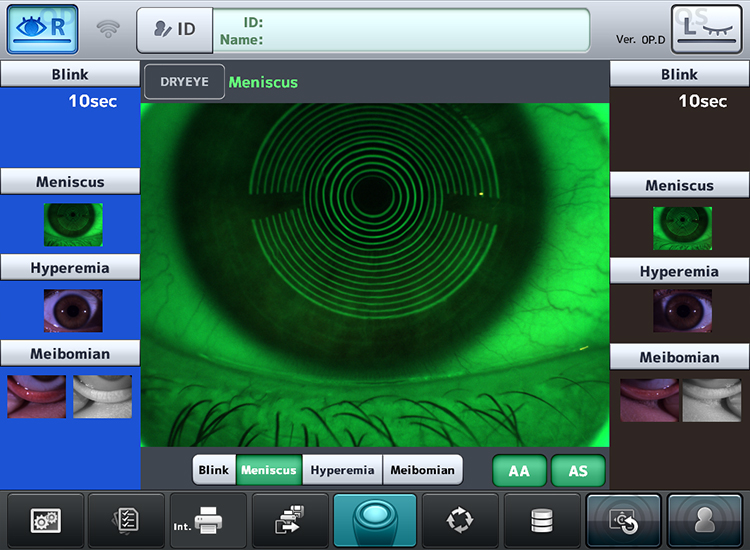

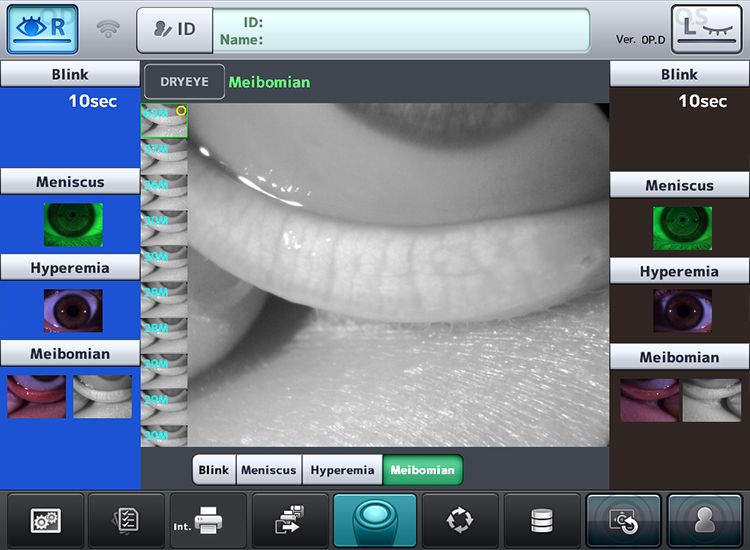

  • Complete dry eye analysis: Combination of 6 different measurements of blinking, tear film, Meibomian glands and conjunctiva
  • 6 in one: Ref, Kerato, Tono, Pachy, Topo, Dry Eye

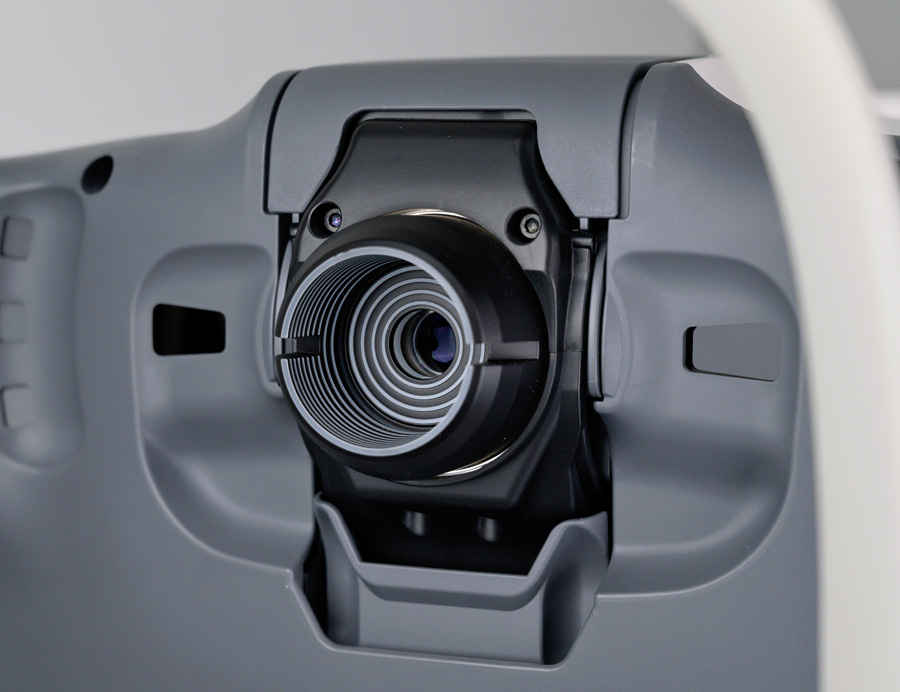

  • Cone interchange in just 4 seconds
  • Auto alignment and auto measurement
  • Quick refraction mode
  • Pupil and cornea ø measurement
Specifications: MR-6000
Measurement performance
Refractive power measurement
Spherical refractive power -30.00 D to +25.00 D (VD= 12.0 mm)
Cylindrical refractive power 0 D to +/-12.50 D (VD= 12.0 mm)
Astigmatic axis °0 to 180°
Corneal curvature measurement
Corneal curvature radius 5.00 mm to 13.00 mm
Corneal astigmatic axis °0 to 180°
lntraocular pressure measurement

Measurement range

1 mmHg to 60 mmHg (1 hPa - 80 hPa)
Corneal thickness measurement
Measurement range 300 µm to 800 µm

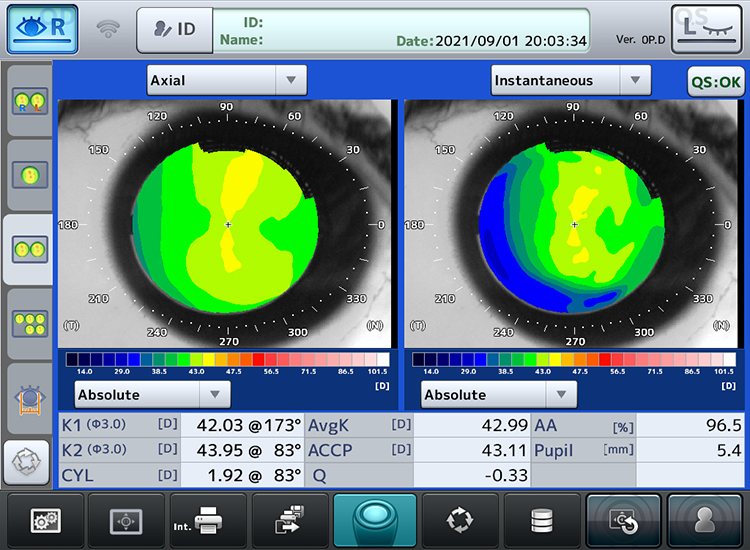

Corneal shape measurement
Corneal curvature radius 5.50 mm to 10.00 mm
Corneal astigmatic axis °0 to 180°
Auxiliary functions
lnterpupillary distance measurement
Measurement range 20mm to 85mm
Corneal diameter and pupil diameter measurement
Measurement range 1.0mm to 14.0mm
Main unit
Display type 10.4-inch color TFT-LCD
Dimensions and weight 312 (W) X 491 (D) X 450 (H)mm, Approx. 23.0 kg
Voltage 100 VAC to 240 VAC
Frequency 50/60 Hz
Power consumption 110 VA
  • Multifunction Refractometer TOMEY MR-6000 General overview

  • TOMEY MR-6000 Measurement and application
