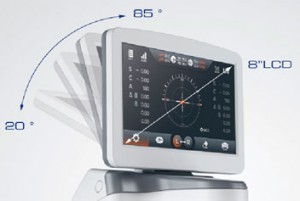

New capacitive touch panel with high resolution.

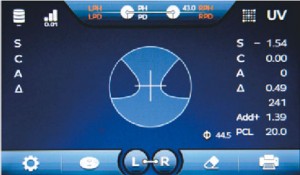

Measurement of PD, PH and PCL (Progressive Channel Length).

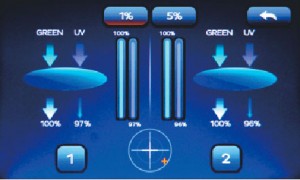

The wavelength of UV and green light can be measured simultaneously.
Bluetooth, RS232 serial port, USB, WIFI, 4 forms of data communication.
| Range of measurement | |||
| Sphere | 0~±25 m-1 0.01/0.12/ 0.25m-1 steps | ||
| Cylinder | 0~±9.99m-1 0.01/0.12/ 0.25m-1 steps | ||
| Axis | 0°~180° (1°step) | ||
| Addition | 0~±9.99m-1 0.01/0.12/ 0.25m-1 steps | ||
| Prism | 0~15cm/m 0.01/0.12/ 0.25cm/m steps | ||
| Measurement mode | |||
| Cylinder | +,+,/-,- | ||
| Prism | X-Y,P-B | ||
| Contact lens | Soft/hard lens | ||
| Measurement mode | Single/progressive/automatic recognition | ||
| Specifications | |||
| Diameter of lens | Φ12～Φ112mm | ||
| P D | 40~90mm(0.5mm steps) | ||
| Measuring speed | 0.1 second | ||
| Abbe number | 30～60 | ||
| Display | 7"LCD/TFT | ||
| Printer | Thermal Printer | ||
| Dimension | 180mm×255mm×455mm | ||
| Package | 620mm×390mm×390mm | ||
| Weight | ～12kg | ||
| Power Supply | 100～240V 50/60Hz 25VA | ||
