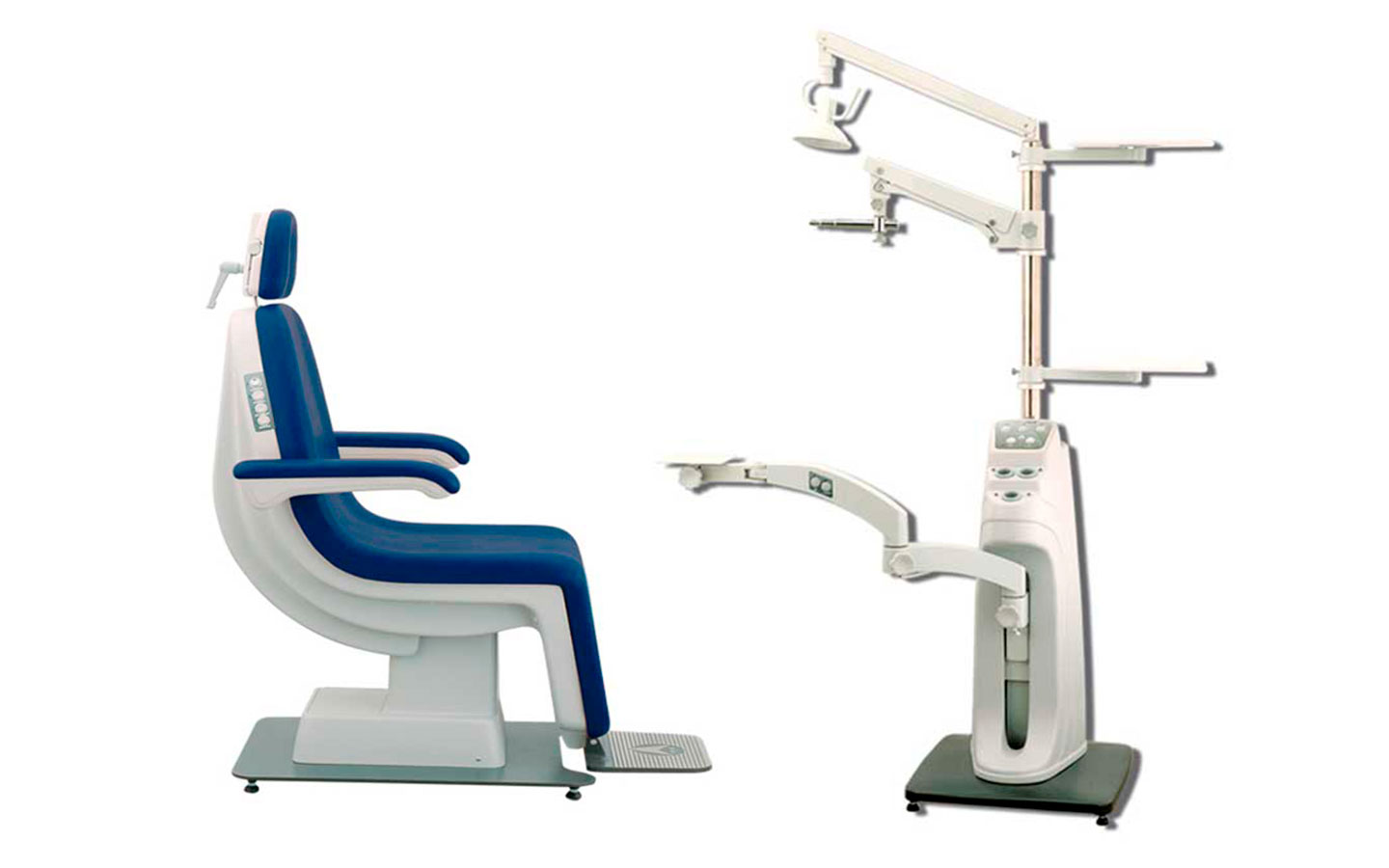

Refraction Unit Exceller HHOU-2050

Unit Chair Exceller

• Automatic Rests 45 °.
• Patient Resting Sitting.
• Movement seesaw.
• Support Head tilt / reclines and up / down.

General Specifications.

• Operated by buttons on the side of the chair.
• Low noise nvel.
• Total Swing Arms.
• Support Head tilt / reclines and up / down.
• Injected foam (best finish).
• Upholstered with stitching.
• Movement seesaw.
• Pedal drive (optional).
• Folding pedals.
• Foot Levelers.
• System rise and fall in aluminum with speed geared motor.
• Return to Zero (the starting position).
• Carrying capacity - 180 kg.

Technical Specifications.

• Feeding tension. 127 / 220V
• Operating frequency. 50/60 Hz
• Chargin Current. 2A
• Energy consumption. 150W
• Maximum lifting capacity. 180kg
• Dimensions (normal). 1000 x 700 x 1310mm (C x L x H)
• Dimensions (recumbent). 1640 x 700 x 925mm (C x L xA)
• maximum / minimum seat height. 740mm / 550mm
• Net weight. 90kg
• Gross weight. 124kg

OPHTHALMIC STAND EXCELLER LX - with slit lamp arm.

2 trays.

• External finish in Fiberglass.
• Arm Pantographic for Phoropter, Balanced.
• Battery Charger for Welch Allyn - code. 71670.
• With Slit Lamp Arm (1 team).
• Control up and down the chair, in the Column panel.
• Internal structure in steel.
• Power on / off light room.
• Power on / off projector.
• Iron Lamp pantograph CONTROLLED 3 light intensities.
• Increased course arm with services for children and disabled person
• Movimento rise and descida arm lamp slit balanced, using counter weight (equal Haag Streit - Setting - Reichert).
• Adjustable feet.
• System lock arm through handpieces (rotation)
• Support for OBI.
• Lock on the arm of the slit lamp to release the rise and fall.

Technical specifications.

• Power supply voltage. 127/220 v
• Operating frequency. 50/60 Hz
• Charging current. 2A
• Energy consumption. 120W
• Maximum lifting capacity. 60 kg
• Equipment dimensions. 1000 x 730 x 1735 mm (C x L x H)
• maximum / minimum height Slit Lamp board. 935 mm / 735 mm
• Net weight. 120 kg
• Gross weight. 156 kg
