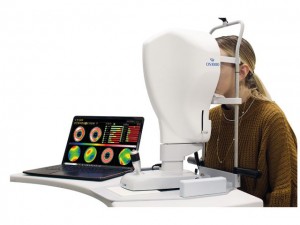

OS1000- Corneal Topographer - PLUS

Topography Inquiry About this product

PLUS

Axial map
Tangential map
Refraction map
Gaussian map
Elevation map
Differential map
Comparison Map
Keratoconus screening
Contact lens fitting simulation
Pupillometry
White to white measurement
Interferometry (manual)
NIBUT
Meibography
Tear Meniscus (manual)
Wizard procedure
Treatment protocol section
Smartphone App "Dry Eye Follow-Up"

TWO-IN-ONE

Corneal Topography includeing the individual analysis of tear film.

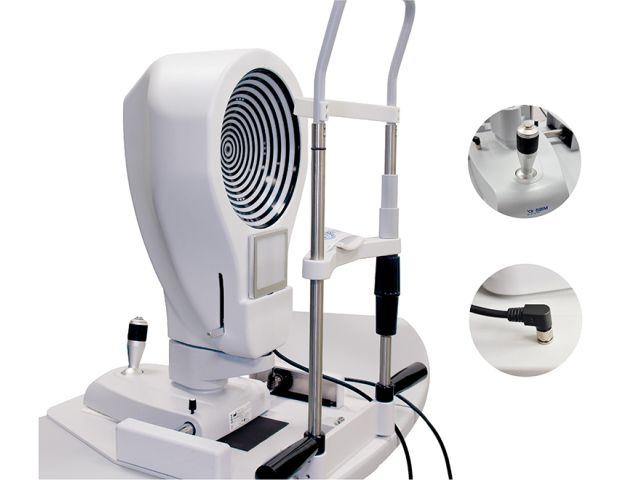

Joystick One-click acquisition

OS1000 is built with a precise smooth and haig-quality joystick. Images and movies can be captured instantly and conveniently by pressing the joystick button.

Left/Right Automatic detection

OS1000 automatically recognizes the right and left eye, allowing an even faster diagnosis of the ocular surface.

Complete evaluation of the anterior surface and tear related structures

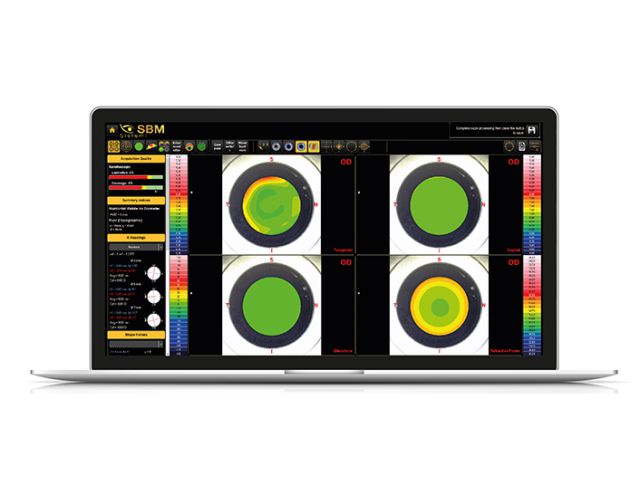

Topography Map, Corneal wavefront analysis
Contac lens fitting simulation
Keratoconus screening
White to white measurement
Comparison Map, Diferentian Map, Corneal height map
Pupillometry

Accessories

Specifications: OS1000- Corneal Topographer - PLUS

TOPOGRAPHY FUNCTIONS INCLUDING:

Axial map
Tangential map
Height map
Refraction map
Rigid Gas Permeable Contact Lens Simulation
Distance measuring tool
23 megapixel image processing

MEASUREMENTS DATA OF TOPOGRAPHY INCLUDE:

Flat k/ Steep k
Ak:corneal astigmatism
Flat e/Steep e
HVID (Horizontal Visible Iris Diameter)
SAI (Surface asymmetry index)
SRI (Surface regularity index)
3mm 5mm 7mm position curvature value
SAG differential at 8mm
PD (Pupil Diameter)
Keratoconus analysis
keratoconus analysis function

Specifications

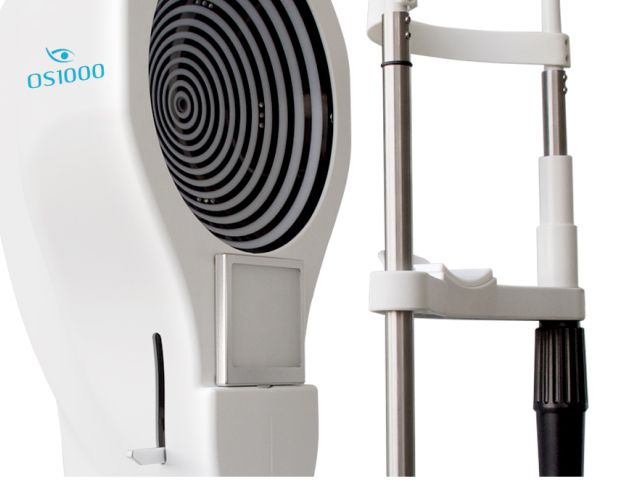

Rings
	24
Measured points
	8760
Camera resolution
	5 Megapixel
Photo resolution
	2592x1944 JPEG format
Upscaled analyzed image resolution
	23 Megapixel
Acquisition mode
	Single shot, multishot, video
Focus
	Manual focus
ISO management
	Variable
Image Color
	Image Color
Lighting source
	Infrared led — White led — Blue led
Working distance
	60 mm - 90 mm from the center of the placid
Output 1
	USB 3.0
Electromagnetic complatible (EMC)
	IEC 60601-1-2 (2015)
Supply voltage
	24V
Device Operating Voltaje
	24V-5V
Dimensions
	40 cm (L) x 60 cm (A) x 45 cm (P)
Weight
	12 Kg
Accuracy
	Class A according to UNI EN ISO 19980-2021
