All in one. For complete ultrasound diagnostic needs.
B-scanner, Biometer, Pachymeter and A-Diagnostic – all in one.

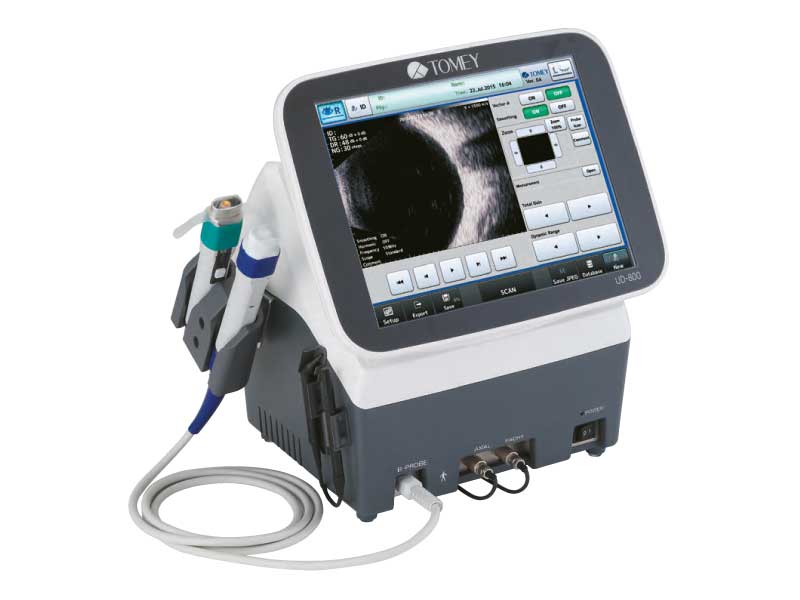

The UD-800 was developed to satisfy all your expectations. Features like the new generation of annular array probes, high resolution touch-screen operation or data communication via USB or LAN makes this device easy in handling and efficient and fast in operation. Simply choose all your needed features! With its included 10 MHz unique 2-ring array B-Scan probe and the A-Scan biometry probe the UD-800 is a fantastic basic tool for a high end performance.
An intuitive software guides you easily through all measurements, which can be printed out (internal printer as well as external printer). Or just simply save the data on the internal database or on the PC. With the DICOM conform export hospital networks are no problem anymore or just simple pure data export, it is your choice.
| Modular configurable | Pachymetry (optional) |
| Internal database | UBM 40 MHz B-probe (optional) |
| Biometer A-scan 10 MHz | A-diagnostic probe (optional) |
| 10 MHz 2-ring array B-probe | Connectable to OA-2000 |

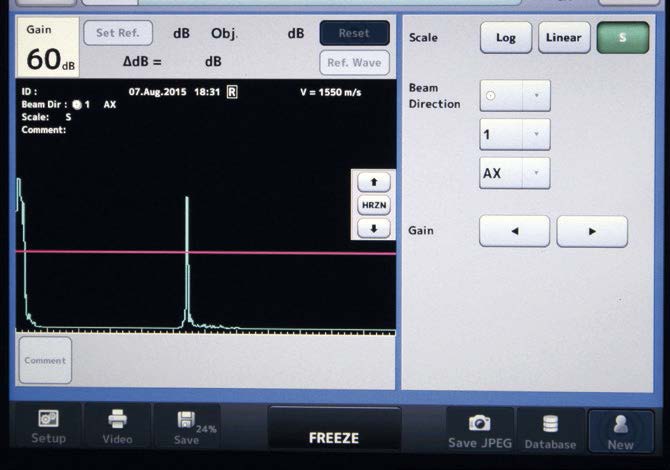

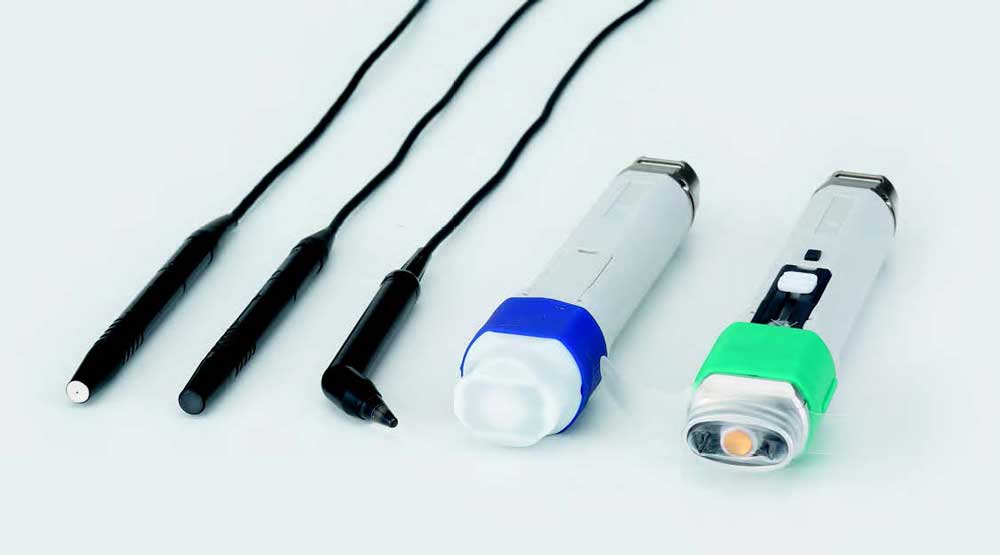

Decide for more options now or later – with the optional 40 MHz linear UBM or 20 MHz Pachymetry probe – they are all easy to attach. Even A-diagnostic with the log, linear or S-mode is no problem.

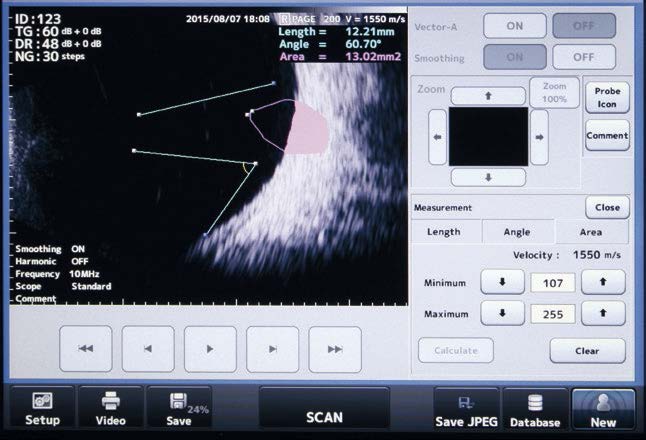

Advanced vitreous diagnostic examination due to our new optimised wide field tissue penetration mode.
Membrane waterproofed cap (disposable) provides fast and easy testing without the need of a water bath. Due to this technology you are able to examine your patient in an upright position with much more comfort – for you and your patient.

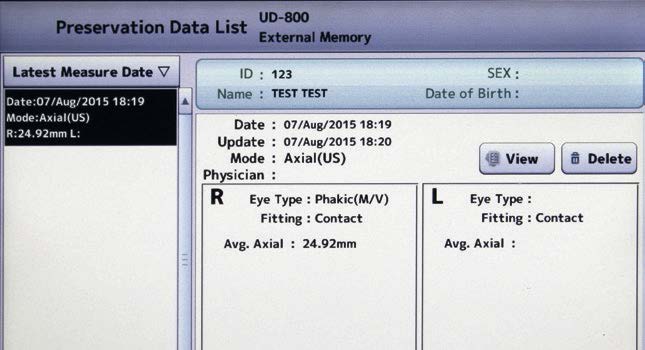

You can simply save the data on the internal database or on the PC.
Intuitive software guides all measurement results, which can be printed out through built-in printer or external printer.
It is also possible to save the data (up to 52,000 eyes) on the internal database and the PC as well. With the DICOM format, hospital intranetworks become efficient. Data export (CSV or JPEG) is available.
10 MHZ B-PROBE
|
|
| Frame rate basic mode | 20 frames / sec |
| Maximum number of pages in a movie | 200 pages x 2 |
| Image display range Standard | 35.2 mm / 52° (at ultrasound velocity = 1,550 m / sec) |
| Wide | 48.0 mm / 52° (at ultrasound velocity = 1,550 m / sec) |
| Axial & lateral resolution / accuracy | 0.6 mm / ±0.5 mm |
| Acoustic lines | 131 lines (step by 0.4°) |
| Colour scale | 256 scale level |

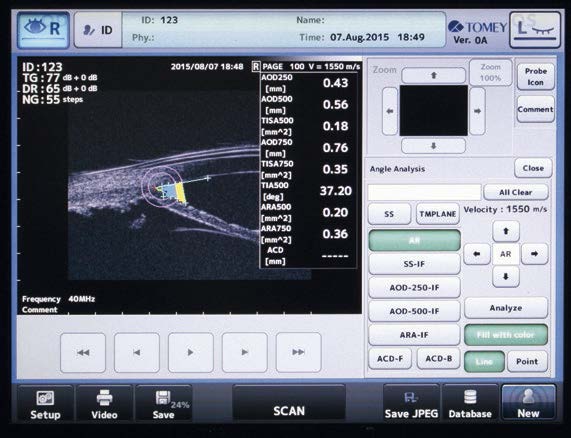

40 MHZ UBM PROBE
|
|
| Frame rate basic mode | 10 frame / sec |
| Maximum number of pages in a movie | 100 pages x 2 |
| Image display range | 9 mm (W) x 7mm (D) (at 1,550 m / sec) |
| Axial & lateral resolution / accuracy | 0.05 mm / ±0.1 mm |
| Minimum distance unit between cursors | 0.02 mm step (at 1,550 m / sec) |
| Acoustic lines | 450 lines (step by 0.02 mm) |
| Colour scale | 256 scale level |

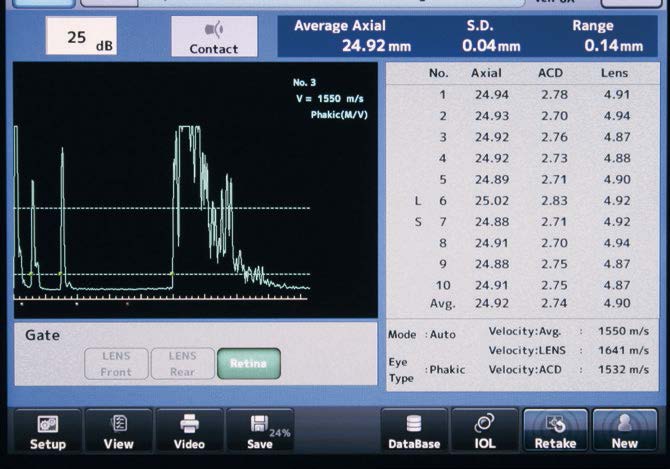

BIOMETRY 10 MHZ SOLID STATE PROBE WITH BUILT IN RED FIXATION LED |
|
| Measurement range | 45.00 mm |
| Measurement resolution / accuracy | 0.01 mm / ±0.1 mm |
| IOL power calculation | Haigis standard Haigis optimised Hoffer ®Q Holladay 1 SRK II SRK/T SRK SHOWA Shammas-PL SRK/T Double K |
A-SCAN DIAGNOSIS 10 MHZ SOLID STATE PROBE |
|
| Measurement range | 60 mm |
| Measurement resolution / accuracy | 0.01 mm / ±0.1 mm |
PACHYMETRY 20 MHZ SOLID STATE PROBE
|
|
| Measurement range | 150 to 1,500 μm |
| Measurement resolution / accuracy | 1 μm / ±5 μm |
| Percent bias | 60 to 130% |
| Plus minus bias | -600 to +450 μm |
| Velocity range / standard | 1,400 to 2,000 m/s / 1,640 m/s |
CONNECTORS |
|
B-scan for 10 or 40 MHz, a-scan / pachymeter, foot switch, LAN, USB 2 x standard 2 x OA-2000/PicBrigde |
|
DIMENSIONS AND WEIGHT |
|
| Dimension WDH | 310 x 214 x 326 mm |
| Weight | 6.0 kg |
DISPLAY |
|
| TFT LCD | 10.4 inches, colour touch screen |
POWER SOURCE |
|
| Input Voltage | 100-240 VAC |
| Frequency | 50 / 60 Hz |
| Power consumption | 120 VA |
