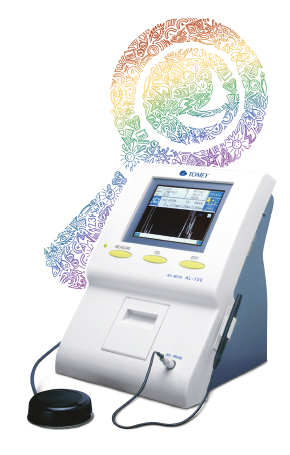

Biometer AL-100

A-SCAN / BIOMETER

• Colour touch screen
• Automated / manual measurement
• Contact / immersion mode
• 6 IOL calculation formulae
• Internal data storage
• Memory card drive

Measurement

• Range:
  • Axial length: 15 ~ 40 mm
  • ACD velocity: 1.8 ~ 7 mm
  • Lens thickness: 2 ~ 6 mm
• Minimum display unit: 0.01 mm
• Accuracy: ± 0.1 mm
• IOL calculation: SPK II, SPK/T, HOLLADAY, Hoffer Q, HAIGIS optimized, HAIGIS standard, SHOWA

Biometry probe

• Type: Solid state
• Fixation light: Built in the probe, Red LED
• Transducer frequency: 10 MHZ ± 10%
• Tip radius: Ø 5 mm (concaved)
• Dimentions / Weight: Ø 8 x 100 mm / 30g

Data Control

• Display: 5.7 inches Color Touch Panel STN LCD
• Printer: Thermal printer

Dimensions and Electric Requirement

• Dimensions: 220(W) x 222(D) x 275(H) mm
• Weight: Approx. 4kg (8.8 lbs.)
• Power supply: AC 100 ~ 240 V (adjusts automatically)
• Frequancy: 50 / 60 Hz
• Consumption power: 35 ~ 42 VA
