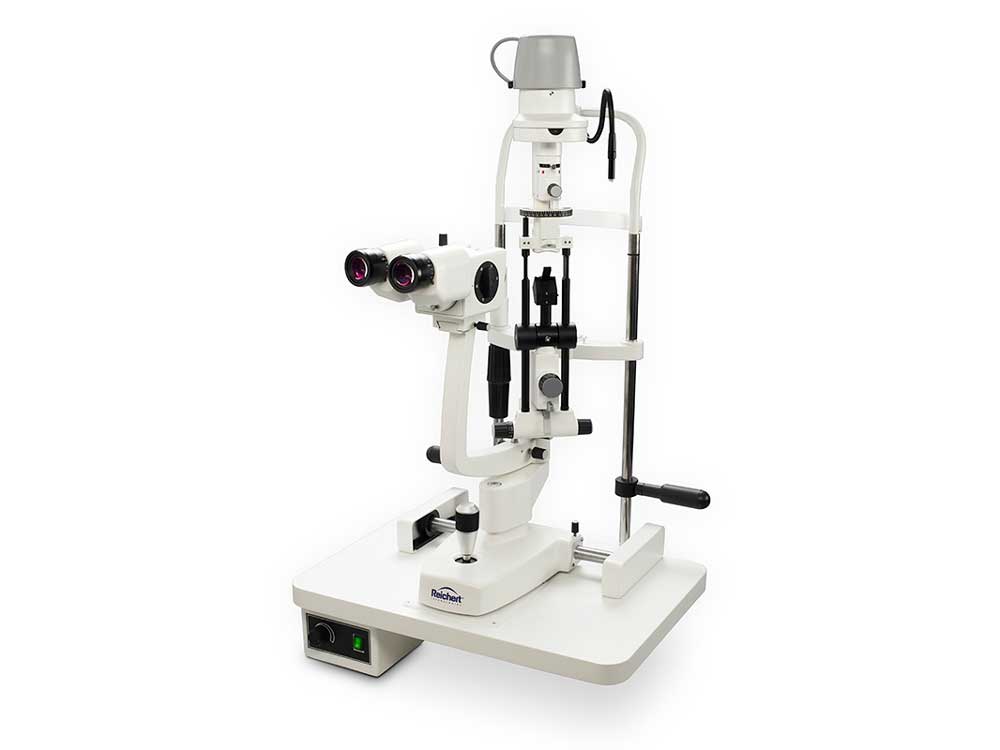

Xcel® 455 Slit Lamp

The all-new Xcel 455 Slit Lamp offers the performance, versatility, and exceptional value to meet the needs of the most discriminating operator.

Lenses with high efficiency coatings provide bright, even illumination. A large field of view with high resolution and depth of focus offers an excellent stereo binocular view.

Traditional tower illumination design
High efficiency multilayer optical coatings for enhanced light transmission
Wide-field optics
5 step magnification 6.5X, 10X, 16X, 25X, 40X
12.5X magnification eyepieces
Slit inclination up to 20 degrees
Red Free, Heat Absorbing, Cobalt Blue, Neutral Density Filters
Halogen illumination
Smooth base movement and slit elevation with X Y Z joystick

Specifications: Xcel 455

Catalog Number
15140 Xcel 455 Slit Lamp

Microscope
Microscope Type: Galilean
Magnification Change: 5 Step Drum Rotation
Eyepiece: 12.5x
Magnification Ratio: 6.5x, 10x, 16x, 25x, 40x
Fields of View: 37, 24, 15, 9.5, 6 mm
PD Range: 49 – 78 mm
Diopter Adjustment: +/- 6 D
Working Distance:

Slit Lamp
Slit Illumination: 6V 20W Halogen
Slit Width: 0 – 12 mm
Slit Length: 1.5 – 12.5 mm
Slit Apertures: 0.3, 1, 3, 5, 9, 12 mm
Slit Rotation: 0 – 180 Degrees
Slit Inclination: -5, -10, -15, -20 Degrees
Filters: Red Free, Heat Absorbing, Cobalt Blue, Neutral Density
Illuminance Range: 0 to >50000 lux

Base Movement Ranges
Longitudinal (In/Out): 110 mm (4.3 in.)
Lateral (Left/Right): 110 mm (4.3 in.)
Vertical (Up/Down): 30 mm (1.2 in.)

Chinrest
Fixation Lamp: White LED
Vertical Movement: 70 mm (2.8 in.)

Power
Voltage: 100 – 240 VAC
Power Input (max): 56 – 73 VA
Frequency: 50/60 Hz
Fuses Time-Lag: (1.6A, 250V), 5x20 mm

Dimensions/Weight
Height: 66.0 cm (26.0 in.)
Width: 45.7 cm (18.0 in.)
Depth: 34.3 cm (13.5 in.)
Table Dimensions: 46.5 x 32 cm (18.3 x 12.6 in.)
Weight, Unpacked: 17.8 kg (39.3 lbs.)
