ICP Slit Lamp - SBM sistemi

ICP Slit Lamp

I.C.P. SLIT LAMP

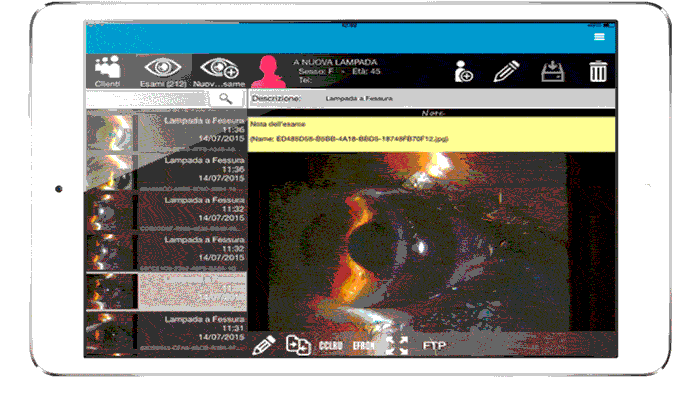

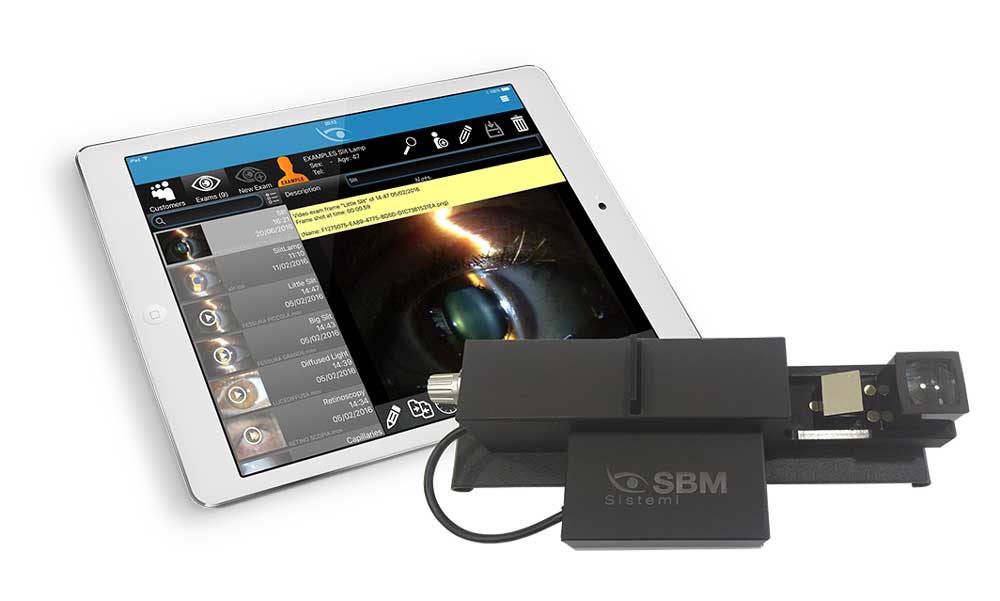

I.C.P is a simple cover support that applies to your iPad Once applied the ICP, thanks to the application downloadable from Itunes you will have the chance to make a lot of visual screening The ICP can also enable health workers to send real-time images or parts thereof to the experts for a more thorough diagnosis.

FEATURES

COMPLETELY PORTABLE

ICP allows to make screening, from urban centers to the suburbs, by examination rooms of hospitals to apartments of patients, by medical studies to field hospitals. You can take it anywhere with you !

SUPER FAST

Rapid screening system, in a few steps you can assess the state of the meibomian glands and quantify the percentage of loss of area of the same. All this in a few moments !

UNIVERSAL

ICP allows you to screen, of patients of different heights, from young to old, of persons with disabilities or with limited motor ability, It does not need any bed or support for the patient, use it freely !

SIMPLE AND INTUITIVE

ICP is a simple and intuitive system, It will allow you to access your data and screening sections with a single finger. Also the use in front of the patient is very simple and of great visual impact, professional and technological risulterete at the same time !

MEDICAL DEVICE

ICP is one Medical instrument of class 1 registrato al Ministero della Salute numero 1340864/R.

FOR PROFESSIONALS

This device is intended exclusively for professionals in the sector!


DESCRIPTION

Once applied the ICP, thanks to the application downloadable from iTunes, you will have the chance to make a lot of visual screening. The I.C.P. can also enable health workers to send in real-time images or parts thereof to the experts for a more through diagnosis.

TECHNICAL SPECIFICATIONS

typology: Digital slit lamp
image resolution: 8.000.000 pixel
photo resolution: 3264 x 2448 in JPEG format
acquisition mode: multi shot, tube
Focus: autofocus, manual focus
ISO management: variable
magnification: 8x to 24x magnification with change via software
Distance of focus: +/- 90mm
slit width: adjustable up to 4 mm
filters: Red-free, cobalt blue filter,giallo, assorbimento di calore
slot inclination: 30°-45°-90° / 30°-45°
Lighting: led 5V - 6 Watts corresponding to 30 W halogen
Intensity of illumination: adjustable from 0 a 100%
beam width: variable
Beam length: da 1 a 15 mm
