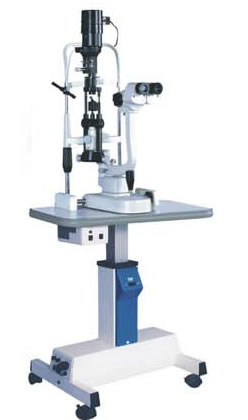

ASL 1600 SLIT LAMP

Specifications:

• Type: cross-angle stereovision.
• Eyepiece:10x.
• Total magnification: 10x(18mm),16x(14.5mm), (diameter of visual fidura light).
• Diopter adjustment: 6D.
• Slit height: 0mm~8mm continuously adjustable.
• Slit width:0mm~9mm continuously adjustable(at 9mm,slit becomes a circle).
• Light spot´s diameter:9,8,5,3,2,1,0.2(mm).
• Slit angle:0º~180º with horizontal scanning capability
• Slit inclination:5º,10º,15º,20º.
• Filter: heat absorption, 13%ND, red-free and blue
• Input voltage:110V/220V 60/50HZ.
• Input power:58VA.
• Illumination bulb:12V 30W halogen bulb.
• Fixation bulb: (red)LED.
