Normal retinal image
Branch retinal vein occlusion
Diabetes phase II
Red-free
New optical design guarantee 45° full-circle image and avoid losing fundus information

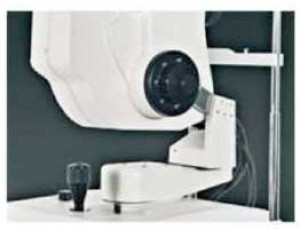

Using additional compensation mode of fundus para-position,cleverly solve the problem of para-position blind area from the ocular surface to fundus, which make the fundus para-position becomes easier
Using split-line aligning focus method which indicates focus status more objectively compared to the traditional one which can avoid turbid eye medium holding back the image focus Even under the black background such as FFA, Split-line aligning system still helpful for clear images capturing.
The system identify patients' retinal status and control exposure intensity automatically which realize the best exposure condition. It assures to get perfect image every time.

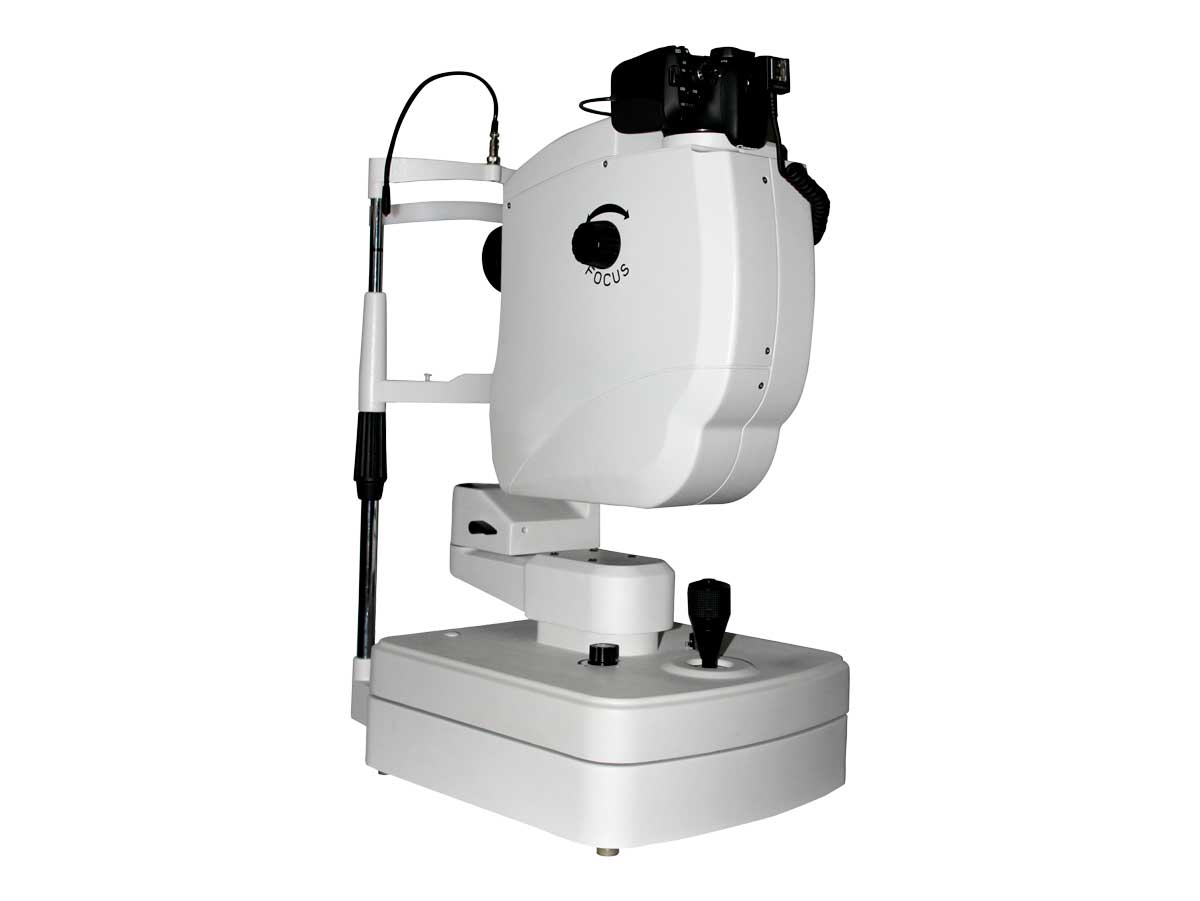

| Model | SK-650A | SK-650B |
| Optical lens | Aspherics system | Aspherics system |
| Test mode | Non-mydriatic fundus | Non-mydriatic and FFA |
| Fundus Obsevation | Switching Optical anterior-posterior compensation lens | Moved platform |
| Red-Free | Yes | No |
| Focus | Split-line aligning focusing | |
| Digital Camera | CANON EOS Technology | |
| Color Image Resolution | 5184*3456 | |
| Monochrome Image resolution | / | 1360*1024 |
| Min. Pupil Size | 3.3mm | |
| Compensation range | de -25D a +30D | |
| Fundus observation para-position indication | Dots overlap | |

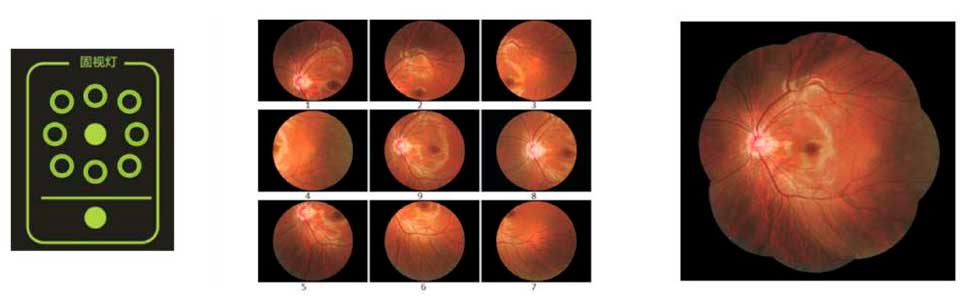

| Fixation target | External eye fixation lamp & 9 internal fixation target (LED dot matrix-Fully controlled by software) | |
| Maximum angle of view | 53° | |
| Optical head tilting | / | Horizontal ± 30° Vertical ± 12.5° |
| Working distance | 40mm +/- 2mm | |
| Software | Support Dicom 3.0, support hospital HIS/PACS system. Image processing, easily operate, strong analysis, support fundus Mosaic, image post processing, measurement, patient profile management |
|
