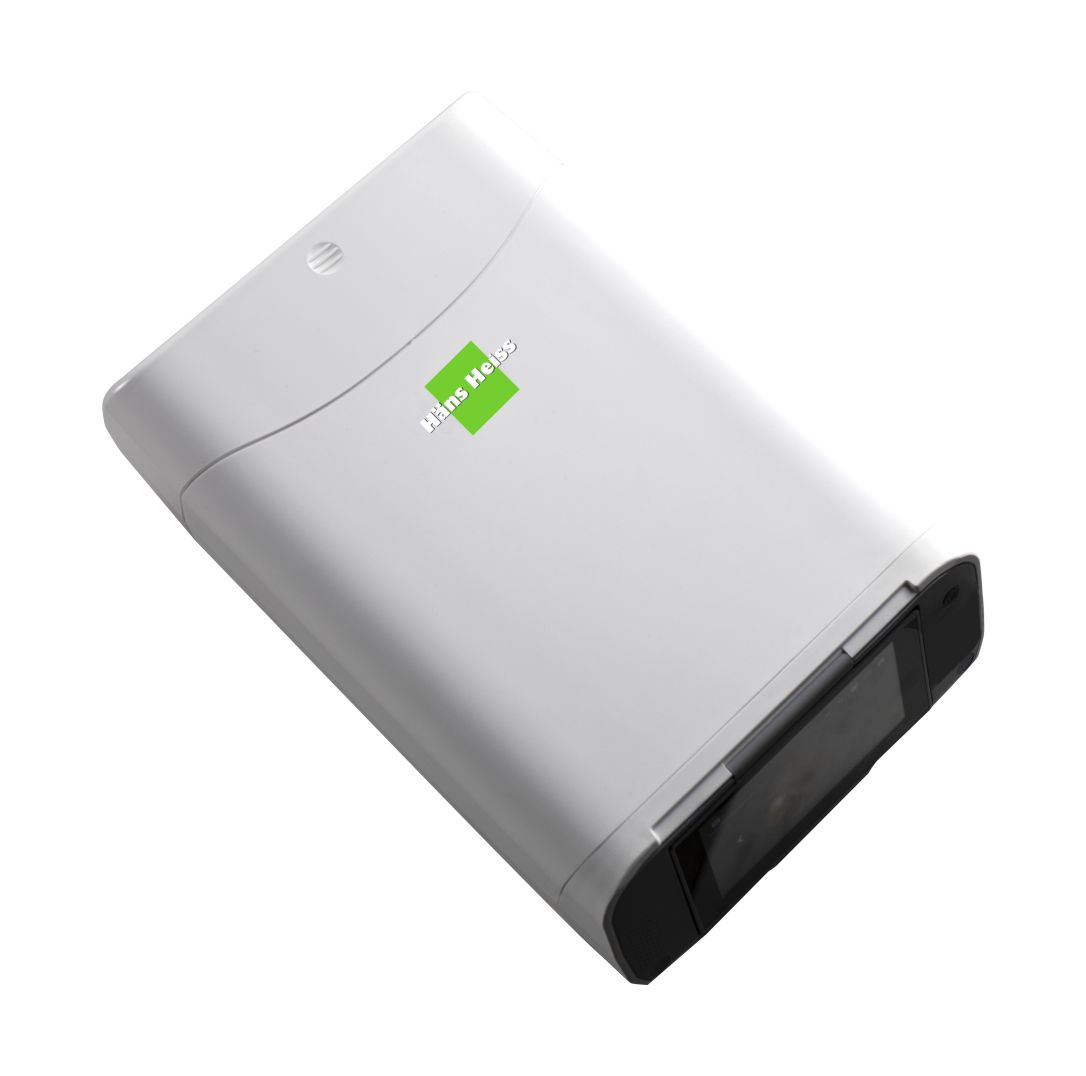

HANS HEISS PORTABLE FUNDUS CAMERA HFC015

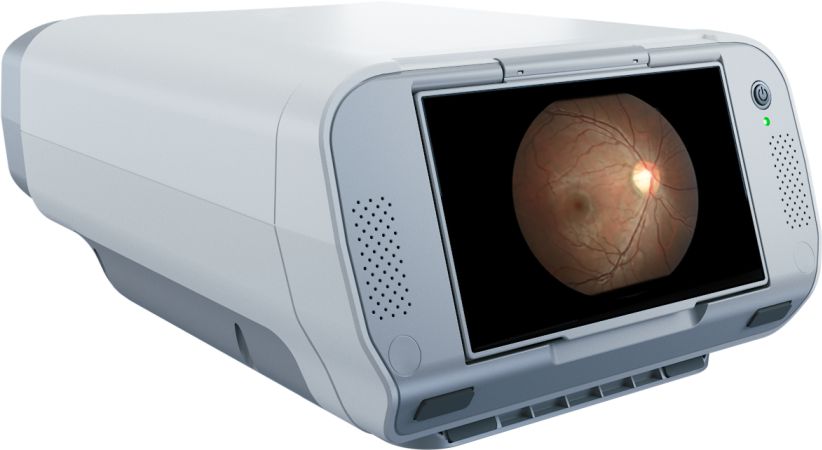

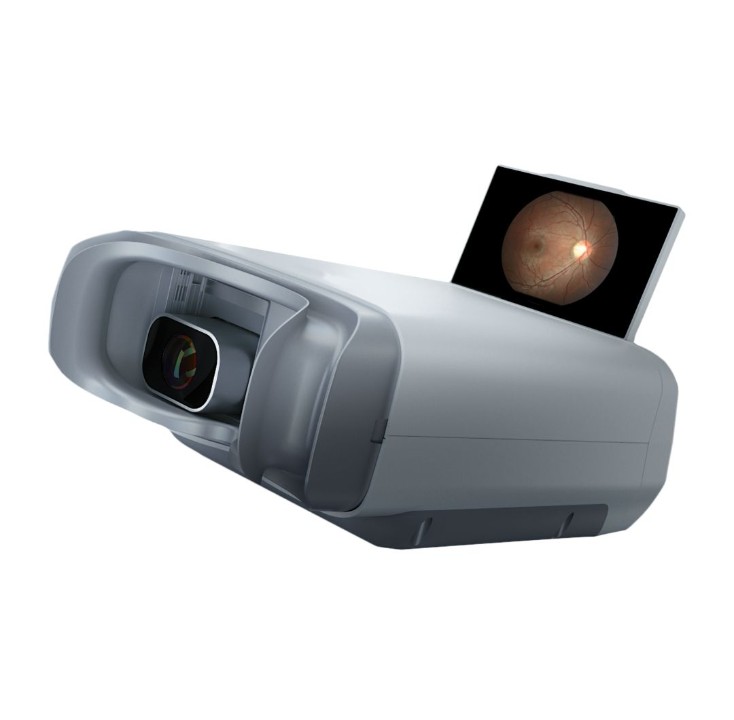

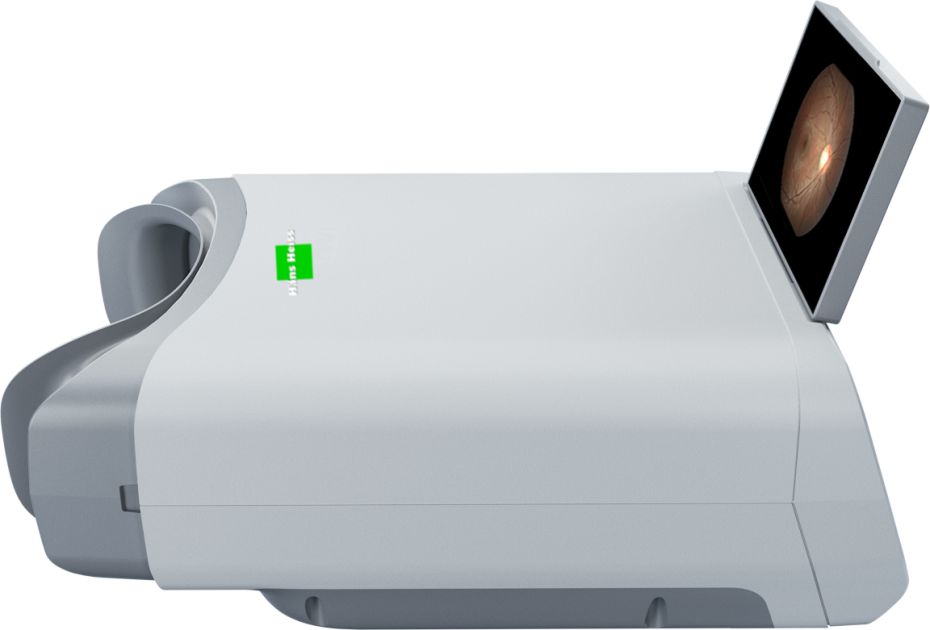

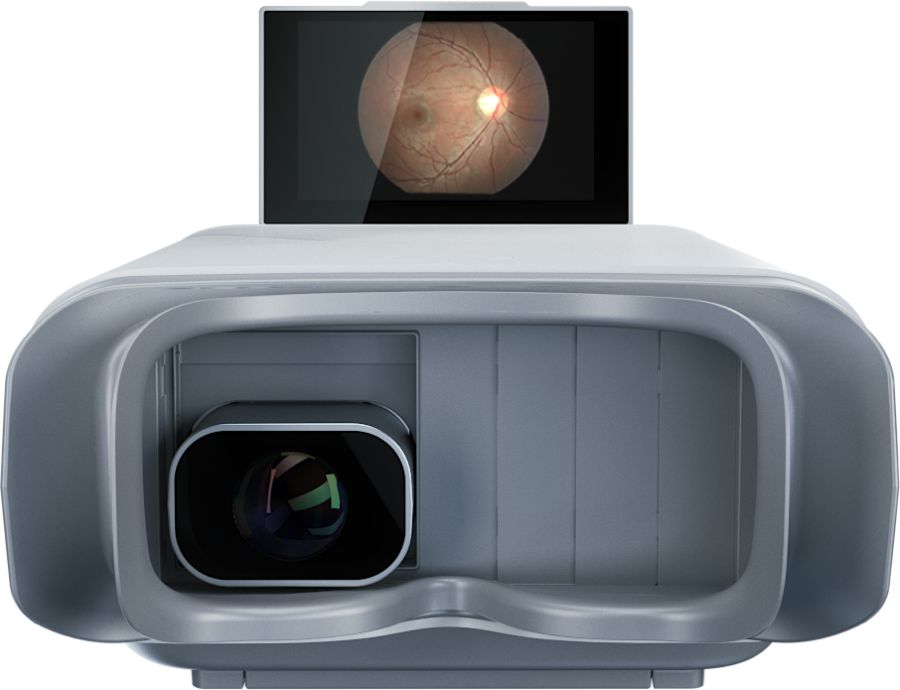

 HFC-015 Automatic Fundus Camera

Get to know the retina

Eyes are the windows of soul and also the only non-invasive way to inspect retina, choroid, blood vessels, nerves and so on. HFC-015 captures binocular fundus images in a fully automatic way( auto alignment, auto focus, auto voice interaction). Generate AI diagnosis report(supported by 3rd party case screening system) to analyze multiple retinal diseases, diabetes, cardiovascular and neurological diseases (such as brain tumors, anemia, etc.). Only 2 mins needed to capture images and get report, super smart solution for early detection and intervention for various diseases.

Capture binocular retina images under voice interaction

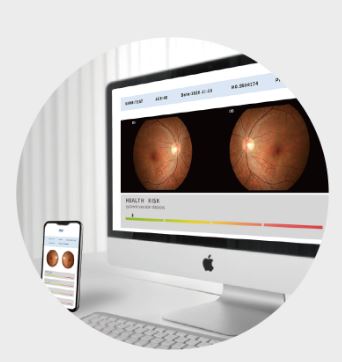

Scan the QR code, system will align pupil and start capture Automatically get the retinal images and generate AI Diagnosis Report (supported by 3rd party)

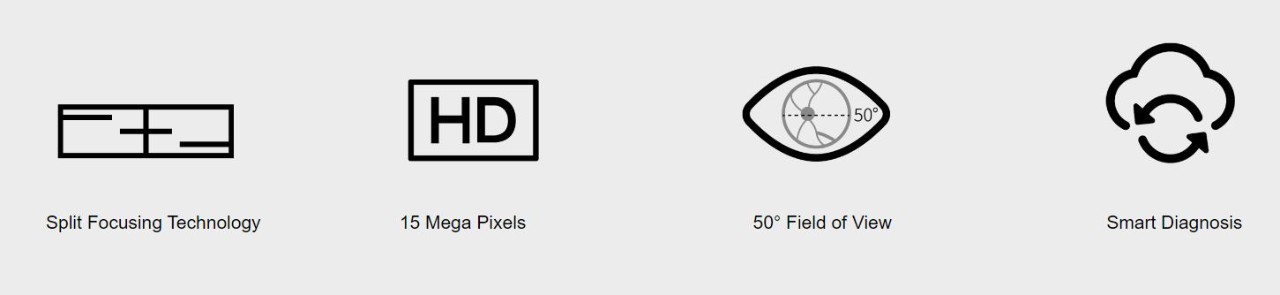

Specifications: HFC-015
Type Non-mydriatic
Field of View 50°
Camera Resolution 15 mega pixels
Fixation Internal fixation
Minimum Pupil Size 3mm
Illumination LED
Focusing Auto focusing
Diopter Adjustment Range -20D~+20D
Display 5” LCD touch screen
Image Format JPEG,DICOM
Type of image Color
Storage 16G
Data WIFI
Battery 47.52Wh
Power Supply ~100V-240V,50-60Hz 1.2A-0.5A
Battery Life 4 hours(Differs under variable environment and circumstances)
Dimension 32cm×21.5cm×12.5cm
Weight 2.7kg
Language Chinese, English

Standard Accessories

Automated Fundus Camera ×1
Eye Mask ×1 pack
Power Adapter ×1
Battery ×1
Portable Case ×1 |
