CX-1 Hybrid Digital Mydriatic/Non-Mydriatic Retinal Cameras - CANON

CX-1 Hybrid Digital Mydriatic/Non-Mydriatic Retinal Cameras

The CX-1 allows the user to take one-shot Fundus Autofluorescence (FAF) photography in a standard configuration, for both mydriatic and non-mydriatic modes.

Overview

The CX-1 Hybrid Digital Mydriatic/Non-Mydriatic (MYD/NM) Retinal Camera is Canon's first hybrid camera and a non-mydriatic camera to use Fundus Autofluorescence (FAF) photography.

Features

  • Five Photography Modes

    The CX-1 offers five photography modes including Color, Red-Free, Cobalt, Fluorescein Angiography (FA), and Fundus Autofluorescence (FAF).

  • Non-Mydriatic Fundus Autofluorescence (FAF) Photography

    With the push of the Myd/Non-Myd button to select the non-mydriatic mode and the FAF mode, the operator is ready to begin taking images.  The FAF mode helps monitor macular waste such as lipofuscin, which assists the eye care professional with detecting age-macular degeneration (AMD), glaucoma, and diabetes.

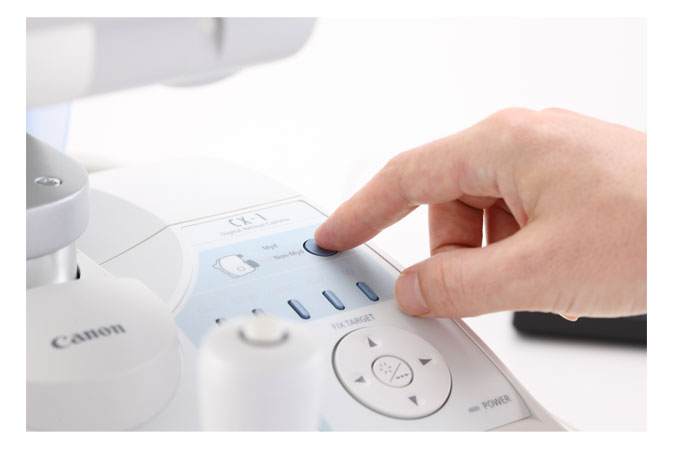

  • One Touch Selection of MYD/NM
    A single push of the Myd/Non-Myd button switches between the mydriatic and non-mydriatic imaging modes.

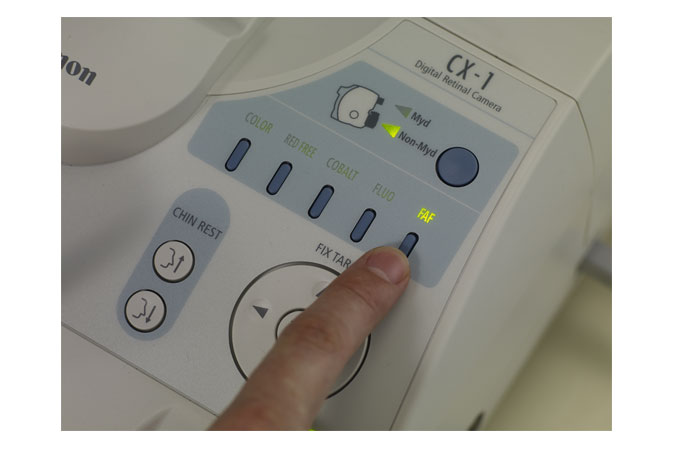

  • Control Panel
    Whether the CX-1 is in mydriatic or non-mydriatic mode, the control panel has simple operation, workflow efficiency, and ergonomic controls.
  • Superior Image Quality
    Clear, high resolution images are available in either mydriatic or non-mydriatic mode.  The 2x mode magnifies the image by automatically cropping out the peripheral edges so the region of interest is larger in the frame.
  • Stereo Photography System

    The LCD monitor displays guides which automatically determine the base length for acquiring successful stereo images.  The two images can be stored as a pair making it easier to manage the files.

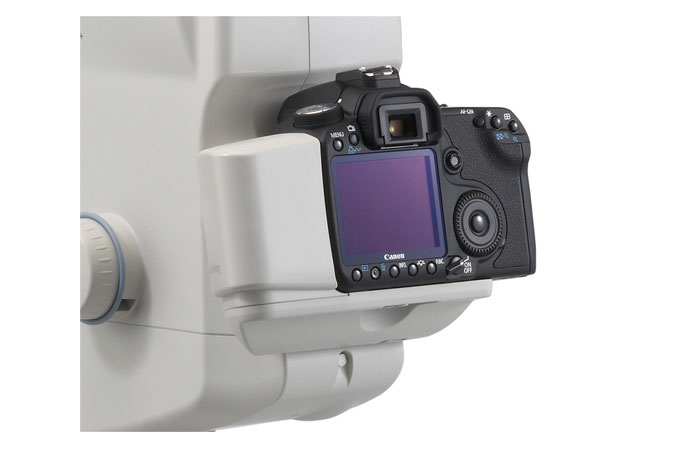

  • EOS Camera Technology

    Made exclusively for the CX-1, the detachable camera features Canon's EOS camera technology with its renowned image processing capabilities providing optimal retinal imaging.  The camera handles five different photography modes including non-mydriatic FAF photography, Color, Red-free, Fluorescein Angiography, and Cobalt.

  • Retinal Imaging Control Software
    Using the Canon Retinal Imaging Control Software (RICS), images can be viewed, manipulated, sent to a DICOM storage device or stored as DICOM or JPEG images and sent to a printer. For more information, visit the Retinal Imaging Control Software webpage.



Specifications

Optional Accessories
  Stereo unit SU-1



Internal eye fixation CX-IF


General
  Types of photography Color, FA, Red Free, Cobalt, FAF
  Retinal observation Mydriatic: Optical viewfinder
Non-Mydriatic: Camera unit monitor
  Angle of view Mydriatic: 50 degrees
Non-Mydriatic: 45 degrees
  Magnification 2X (Digital)
  Minimum pupil size Mydriatic: 5.1 mm or more (4.3 mm or more when SP function is selected)
Non-Mydriatic: 4.3 mm or more (3.8 mm or more when SP function is selected)
  Mounted digital camera Dedicated digital camera by Canon EOS technology
  Sensor 18.0 Megapixels
  Patient's diopter compensation range Without compensation lens: -10D to +15D
With “-” compensation lens: -31D to -7D
With “+” compensation lens: -11D to +33D
  Light source

Mydriatic: halogen lamp for observation, xenon tube for photography
Non-Mydriatic: IRED for observation, xenon tube for photography

Adjustments
  Working distance 35 mm from the front of objective lens
  Working distance adjustment Working distance dots on retina
  Fixation target Mydriatic: external type (Standard), internal type (Optional)
Non-Mydriatic: internal fixation target (LED dot matrix, green)
  Range of base movement 65 mm front and back, 110 mm side to side, 30 mm up and down
  Panning range 30 degrees to the right and left
  Tilting range

15 degrees up, 10 degrees down

Electrical and Environmental
  Power supply AC 100-240V 50/60 Hz 8-4A
  Power consumption 960 VA
  Operating environment

Temperature: 10°C to 35°C
Humidity: 30% RH to 80% RH

Physical Characteristics
  Dimensions (W x D x H) 12.6 inches x 20.9 inches x 22.3 inches
(320 mm x 531 mm x 577 mm)
  Weight Approximately 57 pounds (26 kg)
