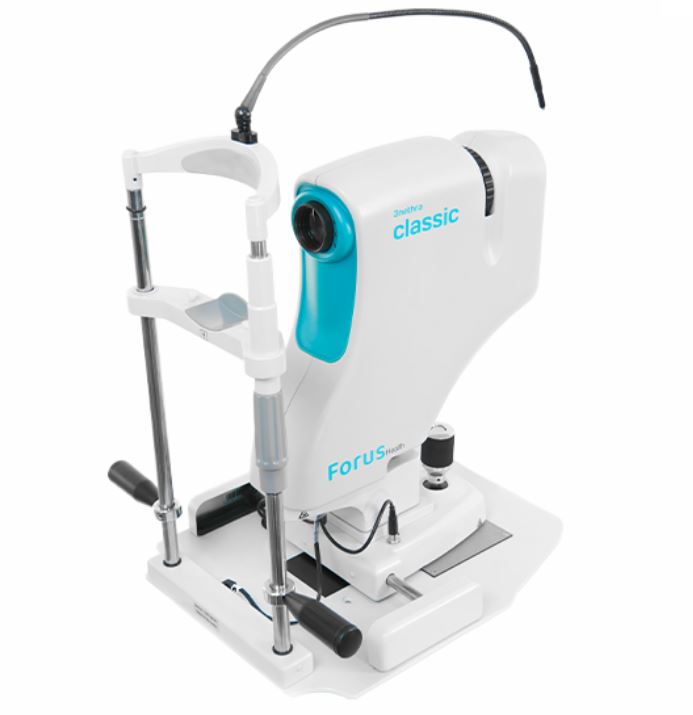

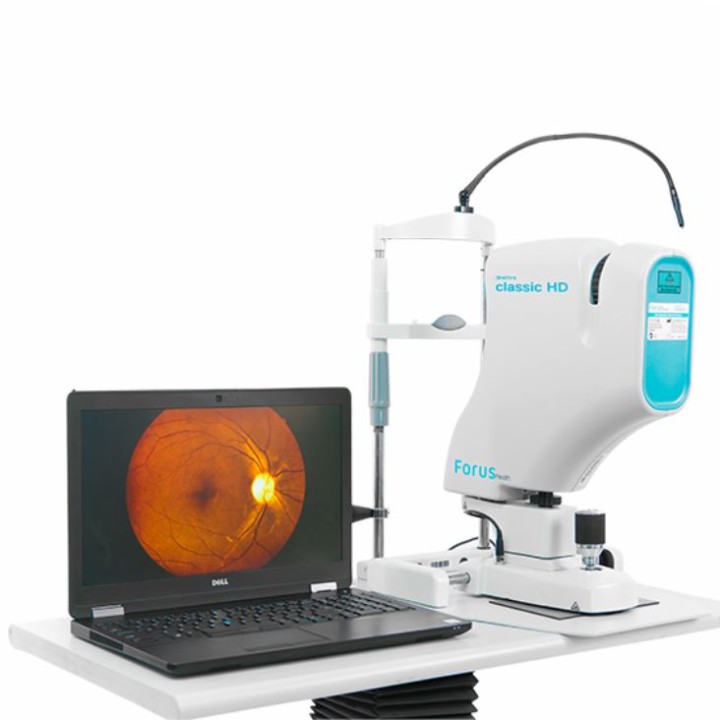

The 3nethra classic HD is a digital fundus camera that combines the best of workflow and design. It captures high-resolution, undistorted, and uniformly illuminated images of the retina and surfaces such as the cornea. With state-of-the-art imaging, software features, and telemedicine capabilities, the fundus camera is fully equipped to help clinicians improve diagnostic accuracy and minimize screening time. The camera offers a variety of imaging modes such as high dynamic range imaging, red-free imaging, and mydriatic modes. The camera assists clinicians in the evaluation, diagnosis, and documentation of ocular diseases.
| FOV | 45 degrees |
|---|---|
| Optical resolution | 8-14 microns |
| Image sensor | 6.4 megapixels |
| Interface | USB 3.0 |
| Dimensions | 520 (H) X 420 (L) X 340 (W) |
| Total weight | 11.1 kgs (3.4 kgs tricam + 7.7 kgs stand) |
| Power consumption | 5-10 W (DC) |
| Power supply | AC 100-240 V, 50/60 Hz (for DC power adapter 5 V/5 A) |
| Minimum system requirements |
The 3nethra classic HD software is compatible with a Microsoft Windows 10 laptop or desktop with i3 Processor of 8th Generation and above. A minimum of 8 GB RAM with 500 GB or more of hard disk space is required. A CPU of minimum 2.4 GHz and a display dimension of 1920X1080 is needed. Forus Health recommends using a CE-certified laptop or desktop. |
