An innovation in ultrasound you can see and touch

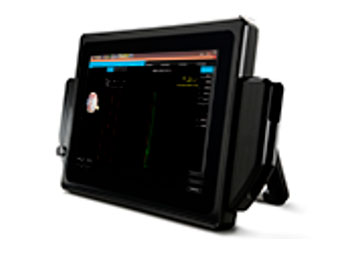

The best of the best. Made better. Sonomed Escalon has been the leader in ophthalmic ultrasound for over 30 years. Our systems set the standards by which all others are measured. The new VuPad™ is no exception. This revolutionary portable device delivers exceptional image quality in a wide range of applications. It’s also remarkably easy to use, thanks to intuitively designed touch screen controls. With VuPad™, you can bring advanced ultrasound to more places – and more patients – than ever before.
The better the image, the more accurate the diagnosis. VuPad's superior UBM and B-scan image quality with Enhanced Focus Rendering™ and ultra high resolution touch screen allows you to capture both crisp still images and record video that can be carefully reviewed frame-by-frame.
 |
 |
Concentrate on your patients, not on the controls. With an intuitive graphic interface, VuPad™ makes ultrasound simple and straightforward. The multi-touch screen puts important functions easily at your fingertips. You can also take advantage of innovative, smartphone-inspired features like pinch zoom. VuPad™ also includes time saving pre-set scan settings to automatically optimize image quality depending upon area of viewing interest.
Multi-touch touchscreen for features like pinch zoom
Preset scan modes with settings optimized for areas of interest
Easy graphical selection of scan orientation for all modes

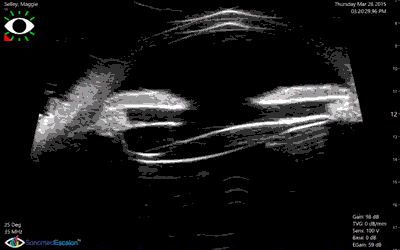

Frame-by-frame, full speed, and slow motion review of video clips
Concentrate on your patients, not on the controls. With an intuitive graphic interface, VuPad™ makes ultrasound simple and straightforward. The multi-touch screen puts.
Simple to use measurement and annotation tools
Use VuPad to measure sulcus-to-sulcus and utilize built-in Daugherty or Kojima algorithms to determine proper ICL sizing - the first time
Optional angle analysis tool provides automated measures for monitoring angle condition over time
In ophthalmic practices, there’s no such thing as an “ordinary day”. The compact, ergonomic VuPad is designed to adapt. You choose the modalities that you want – UBM, B-scan, and/or A-scan. Dual-Band WIFI, Ethernet, USB, and Bluetooth allow you connect to other devices or your network. There’s also plenty of room onboard to store images, with a hard drive that’s 60% larger than other portable ultrasound devices.
 |
Compact ergonomic form factor, adjustable table top back stand or VESA mount to cart or articulating arm |
 |
Choice of 35 or 50 MHz UBM transducers, 12 or 20 MHz B-probes, and immersion or soft-touch A-probes |
 |
Dual-band WIFI, Ethernet, USB, and Bluetooth interface |
 |
 |
 |
A-SCAN |

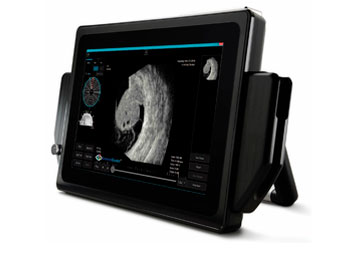

B-SCAN |

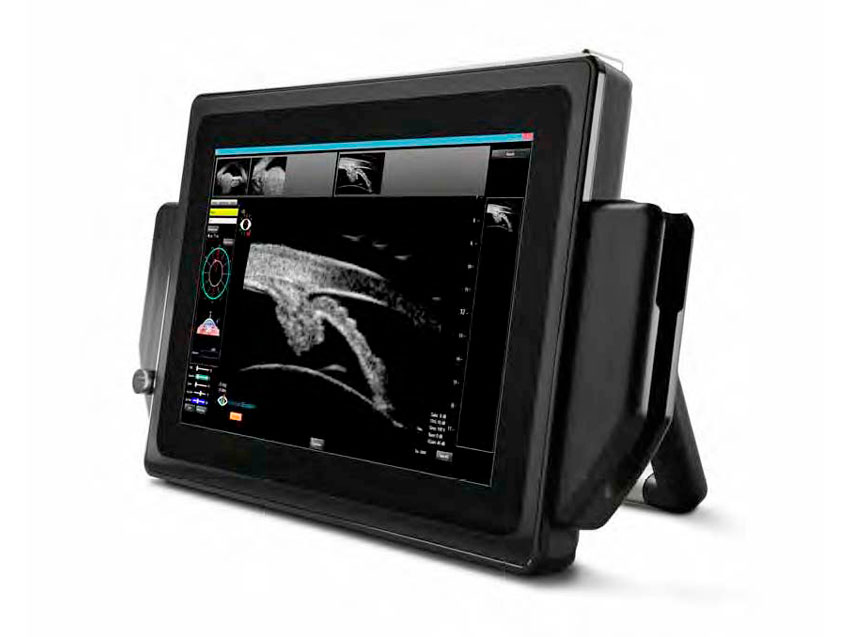

UBM |
|
Immersion or direct contact A-scan Manual or automatic capture (cataract, dense cataract, aphakic, silicone oil, and pseudophakic modes) Auto calculation of axial length, anterior chamber depth, lens thickness, and vitreous, with axial length average and standard deviation provided for up to 10 scans per exam Standard IOL formulas: Binkhorst, Regression-II, Theoretic/T, Holladay, Hoffer-Q, and Haigis Post-refractive IOL formulas include Latkany Myopic Regression, Latkany Hyperopic, and Aramberri Double-K |
Unparalleled image quality with proprietary Enhanced Focus Rendering™ 12 and 20 MHz frequency transducers available for posterior B-scan 256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep) Capture 50-frame video clips at up to 20 frames per second Store unlimited images and up to 12 video clips in each exam |
Unparalleled image quality with proprietary Enhanced Focus Rendering™ 35 and 50 MHz frequency transducers available for UBM 256 ray scan with 2048 sample points for each ray (over a half-million sample points per transducer sweep) Capture 50-frame video clips at up to 20 frames per second Store unlimited images and up to 12 video clips in each exam UBM scan cap kit compatible with ClearScan®device for direct contact UBM scanning |
| VuPad (A-scan only) | Portable A-scan Tablet includes 10MHz A- Probe, Footpedal, A/C Adaptor, and Operator Manual |
| VuPad (B-Scan only) | Portable A-scan Tablet includes 12MHz B- Probe, Footpedal, A/C Adaptor, and Operator Manual |
| VuPad (A/B-scan) | Portable A/8-scan Tablet includes 10MHz A- Probe, 12MHz 8-Probe, Footpedal, A/C Adaptor, and Operator Manual |
| VuPad (USM only) | Portable High-Frequency UBM Tablet includes Water-Path Probe, 35MHz Transducer, Footpedal, A/C Adaptor, and Operator Manual |
| VuPad (B-Scan/UBM) | Portable B-Scan/UBM Tablet includes Water-Path Probe, 35MHz Transducer, 12MHz B-Probe, Footpedal, A/C Adaptor, and Operator Manual |
| VuPad (A/B-scan/ UBM) | Portable A/B/UBM Tablet includes Water-Path Probe, 35MHz Transducer, 12MHz B-Probe, 10MHz A-Probe, Footpedal, A/C Adaptor, and Operator Manual |
