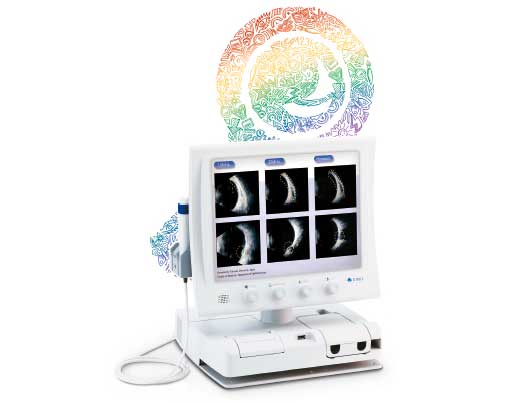

UD-8000 MODULAR B-SCAN SYSTEM

Description.

• Unique Probe and Component
• High-resolution
• Versatile Functions
• 60MHz (UBM)
• Membrane cap (Disposable)

UD-8000 SPECIFICATIONS

[15MHz Probe]

• Focus: Dynamic Focus.
• Frame rate: Basic mode 22 frame / sec
• Frame rate: High Sensitive mode 11 frame / sec
• Maximum number of pages in a movie: 400 pages x 2
• Images display range: Standard 42mm / 52˚   (at ultrasound velocity=1550 m/sec), Wide 54mm / 52˚ (at ultrasound velocity=1550 m/sec)
• Color scale: 256 scale level
• Scan type: Sector scanning
• Transducer type: Annular array
• Transducer frequency: 15MHz

[60MHz Probe]

• Frame rate: Basic mode 10 frame / sec
• Frame rate: High Sensitive mode 7 frame / sec
• Maximum number of pages in a movie: 100 pages x 2
• Images display range: 9mm(W) x 7mm(D) (at ultrasound velocity=1550 m/sec)
• Color scale: 256 scale level
• Scan type: Linear scanning
• Transducer type: Single
• Transducer frequency: 60MHz

Dimensions and weights

• Dimension  398(W)x359(D)x456(H)mm
• Weight  15.0kg

Display

• TFT LCD  15 inches, color touch screen

Power source

• Input Voltage: 100-120V / 220-240VAC
• Frequency: 50/60Hz
• Power Cousumption: 125/125 VA
