Optical Coherence Tomography

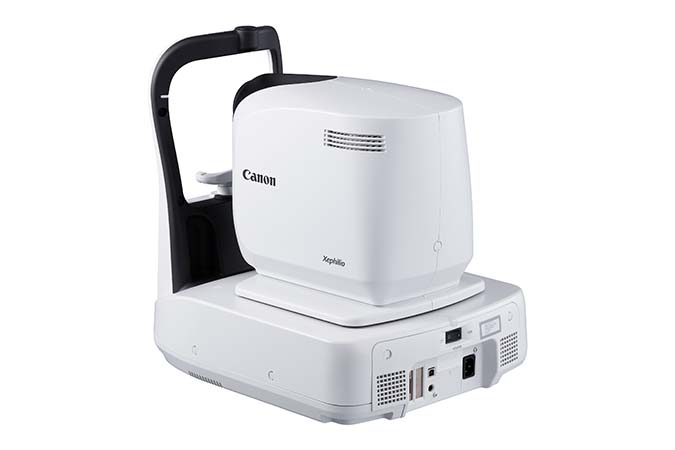

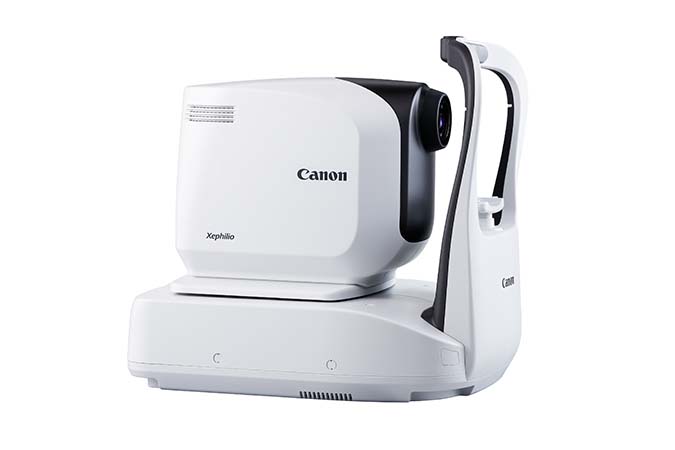

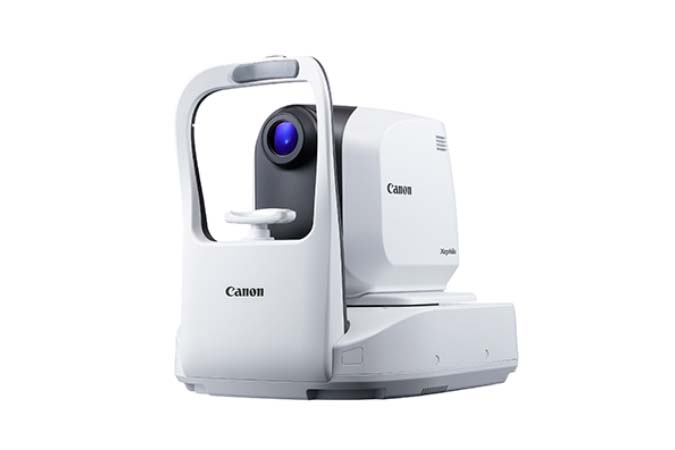

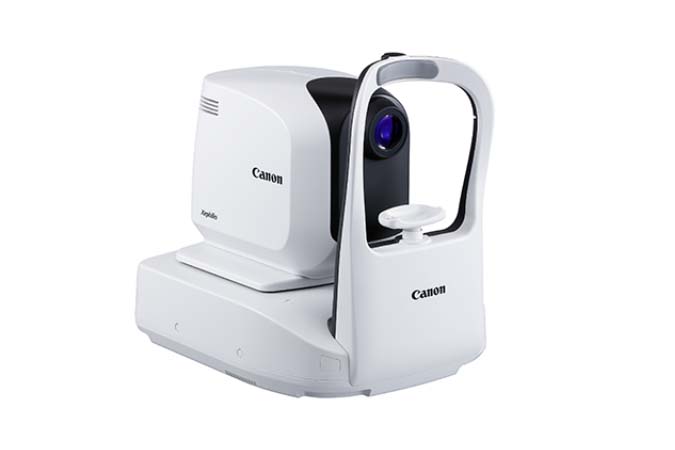

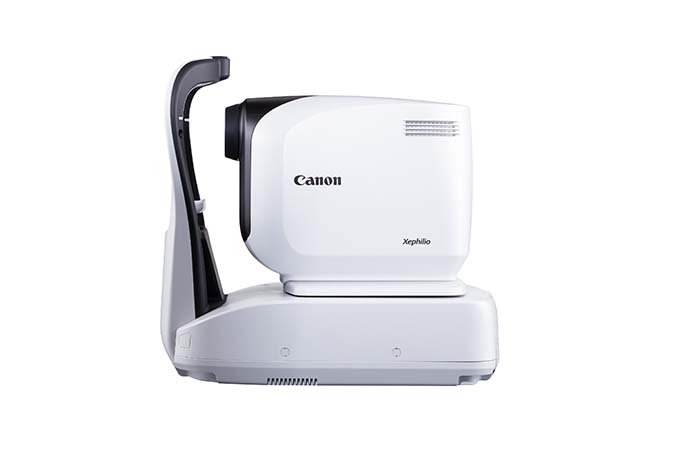

The Xephilio OCT-A1 Optical Coherence Tomography is Canon's Optical Coherence Tomography for the in-vivo imaging and measurement of the retina, retinal nerve fiber layer, and optic disc.
The Xephilio OCT-A1 System, which offers 1.6 μm Axial digital resolution in combination with the ability to average multiple scans, can help provide excellent image quality with detailed resolution.
The System’s integrated Scanning Laser Ophthalmoscope (SLO) contributes significantly to scan quality and ease of use. By providing real-time retinal tracking, it makes monitoring of the examination easy.
The SLO also assists with followup examinations by automatically adjusting to the same scan position as used in the previous exam. To ease comparison, the software automatically selects identical scan parameters.
With the Xephilio OCT-A1 System, you can average up to 50 cross scans* to achieve an image resolution that allows impressive detail of both the layer and the vitreous pleated structures. For optimal imaging, the System offers special scan modes for vitreous and choroid imaging in addition to a wide scan width of up to 13 mm.
The Xephilio OCT-A1 System can automatically detect and distinguish 10 layers of the retina— including Bruch’s membrane (BM)—thanks to its excellent image quality and resolution.
Xephilio OCT-A1 |
|
|
GENERAL |
|
| SCAN RATE | 70,000 A-scan per second |
| AXIAL RESOLUTION | Digital/Optical: 1.6/3.4 μm |
| TRANSVERSAL RESOLUTION | 20 μm |
| WAVE LENGTH | 855 nm ** |
| MINIMUM PUPIL DIAMETER | 3.0 mm |
| WORKING DISTANCE | 35 mm |
| FUNDUS IMAGING METHOD | Scanning Laser Ophthalmoscope (SLO) SLO Size (H x V): 13 mm x 10 mm OCT Width: 3-13 mm OCT Depth: 2.0 mm |
| INTERNAL FIXATION LIGHT | 1 mm x 1 mm or 6 mm x 6 mm |
| EXTERNAL FIXATION LIGHT | EL-1 (optional, sold separately) |
| DIMENSION and WEIGHT | OCT-A1 Device (without EL-1) Dimension (W x D x H) 387 mm x 499 mm x 474 mm Weight: 64 lb./29 kg |
|
OCT SCAN PARAMETERS |
|
| RETINA SCAN MODE | Vitreous and Choroidal Modes Available C-gate Direction: Normal/Inverse lmaging Position (fixation light position) Macular/Disc/Posterior |
| MACULA 3D | 1024 A-scan (H) x 128 B-scan Scanning Area: 10 mm x 10 mm |
| GLAUCOMA 3D | 1024 A-scan (V) x 128 B-scan Scanning Area: 10 mm x 10 mm |
| DISC 3D | 512 A-scan (H) x 256 B-scan Scanning Area: 6 mm x 6 mm |
| CUSTOM 3D | 1024 A-scan (H/V) x 128 B-scan Scanning Area: 3 mm to 10 mm (adjustable range) |
| MULTI CROSS | Horizontal: 1024 A-scan (H) x 5 B-scan Vertical: 1024 A-scan (V) x 5 B-scan |
| SCANNING AREA | Horizontal: 3 to 13 (adjustable range) Vertical: 3 to 10 (adjustable range) Number of Averaging: 1 (no averaging), 5, 10 |
| CROSS | Horizontal: 1024 A-scan (H) x 1 B-scan Vertical: 1024 A-scan (V) x 1 B-scan |
| SCANNING AREA | Horizontal: 3 to 13 (adjustable range) Vertical: 3 to 10 (adjustable range) Number of Averaging: 1 (no averaging), 5, 10, 20, 50 |
| RADIAL | 1024 A-scan x 12 B-scan Scanning Area: 3 to 10 mm (adjustable range) Number of Averaging: 1 (no averaging), 5, 10 |
|
SOFTWARE: CANON RX CAPTURE SOFTWARE |
|
| COMPUTER | CPU: Intel Core i7 (3.3GHz or more, 6 core or more) GPU Using 3D: NVIDIA Video Card (Quadro 4000 or better) memory 1GB or larger Using 3D: Full-HD, 24/32-bit color- compatible GPU Memory: Basic 6GB or larger |
| HDD | Local: 2TB or larger (RAID-1 mirroring) Remote: 100GB or larger USB Port: 4 port or more LAN: 1000Base-T or more OS: Windows 10 Pro (x64, Version1607-) English/Japanese |
| MONITOR | Display: Size: 21.5” or larger 1920 x 1080 (24 or 32 bit color) |
|
FOOTNOTES |
|
| * 1 (no averaging), 5, 10, 20, or 50 scans. ** Output on cornea <2.67 mW (scanning beam controlled by the laser safety system). |
|
