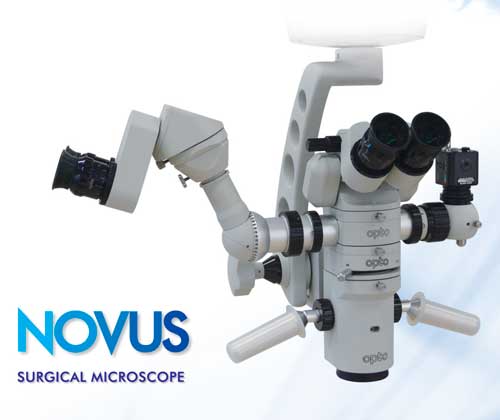

Opto Novus Surgical Microscope

Technical Specifications

Optical

• Optical System: Apochromatic with all optical aberration correction (seven)
• Objetive: f=200mm
• Eyepieces: 12,5x
• Focus: motorized
• Field of view: Ø 10-60 mm
• Working distance: 200mm
• Diopter adjustments: -6D to + 6D
• Microfocus adjustments range: ± 20mm
• XY adjustment range: X= +22.5 mm; Y= ±22.5mm
• Interpupillary lenght adjusment: 55 to 110mm and 48 to 78mm (binocular head fixed at 45°) / (inclinable binocular head)

Magnifications

• Manual Mode: 5x, 8x, 12x, 20x and 30x
• 5x to 30x continuos

Illumination

• Conduction: Optical fiber cable
• Light source: Halogen 21 V / 150 Watts
• Field of illumination: Ø 0.60mm
• Light intensity: 80,000 lux with continuous adjustment
• Anti UV. anti-heat, green and blue

Arm

• Type: Pantographic
• Maximum vertical shift: 0.70m
• Reach: 1.24m
• Maximum rotation allowed: 285°

Base

• Wheels: With integrated breaking system
• DImensions: 700mm x 700mm

Power Supply

• Voltage: 90-240V ~, 50-60Hz - Automatic
• Power Comsumption: 200W

Optional Accesories

• X-Y
• Binocular for 2nd Observer
• Beam Splitter
• Video camera adapter
• Photographic camera adapter
• Video camera 1/2" and 1/3"
• Objetives: 175, 200,250, 300, 350 and 400
