Optional Accessories
|
Big Objective Lens |
Total Magnifications |
Diameter of Field (mm) |
|
F=250mm |
4.2X , 6.4X , 9.6X |
47.5 , 31 , 21 |
|
F=300mm |
3.5X , 5.4X , 8X |
57 , 38 , 25 |
|
F=350mm |
3X ,4.6X , 6.8X |
67 , 44 , 30 |
|
F=400mm |
4X , 4X , 6X |
76 , 50 , 34 |

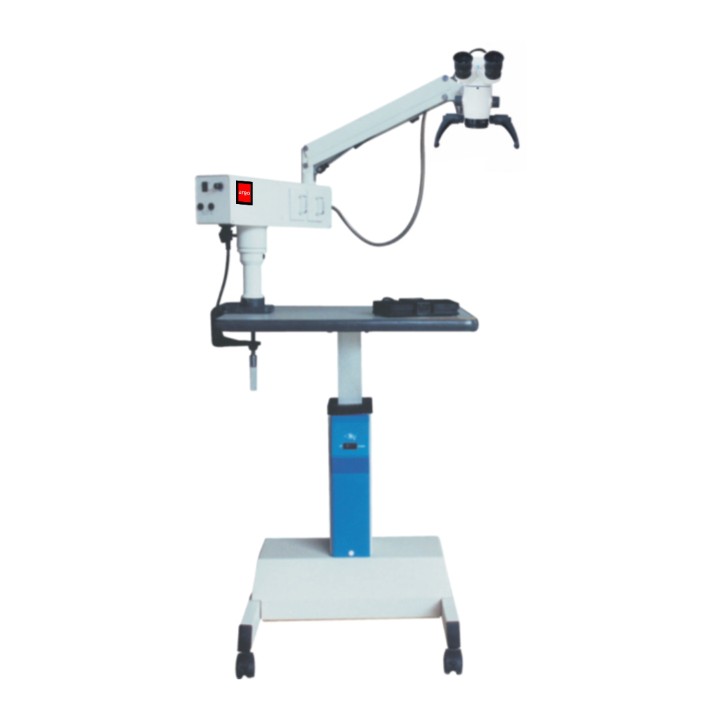

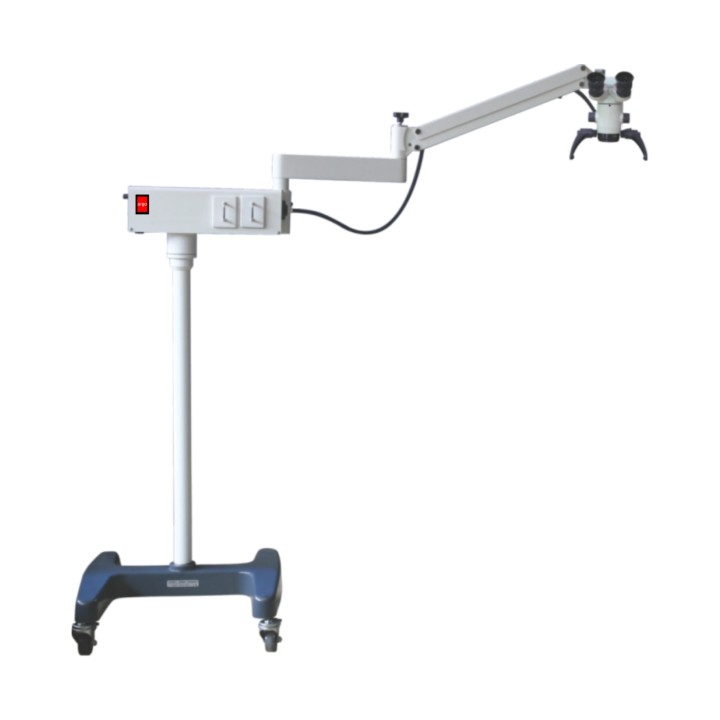

Column stand can be refitted to holding stand. It can also be customized according to various operation requirements.
Specifications
|
Eyepiece Magnification |
12.5 x |
|
Objective Lens |
F=200mm |
|
Working Distance |
190mm |
|
Magnifications for Main Microscope |
5.3x , 8x , 12x |
|
Diameter of Field |
ɸ 37mm, ɸ 25mm, ɸ 16.7mm |
|
Adjustable Diopter |
± 6D |
|
Adjustable range of Pupil Distance |
50mm ~ 80mm |
|
Illumination Source |
12v/100w, medical cold reflection halogen lamp |
|
Illumination Type |
6° +0° Coaxial cold light source illumination |
|
Coaxial illumination |
≥30000lx |
|
Reaching Radius of Arm |
870mm |
|
Adjustable Vertical Range |
700mm ~ 1100mm |
|
Fine Focusing Range |
30mm |
|
Power Supply |
AC110V/220V ± 10% 50Hz/60Hz |
|
Power Consumption |
120Va |
|
Fuse |
T1.25AL 250V T2.5AL 125V |
|
Packing Volume |
0.2m3 , 1carton |
|
Total Gross Weight |
41Kg |
