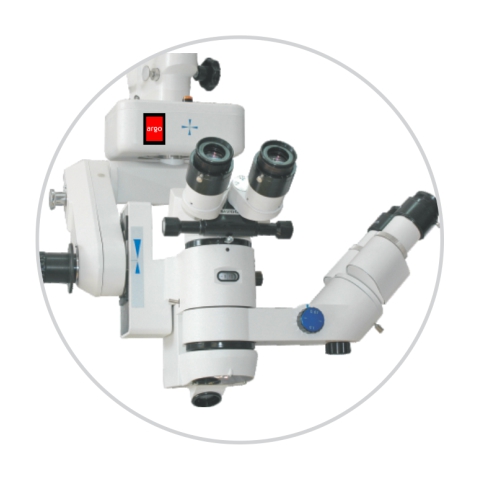

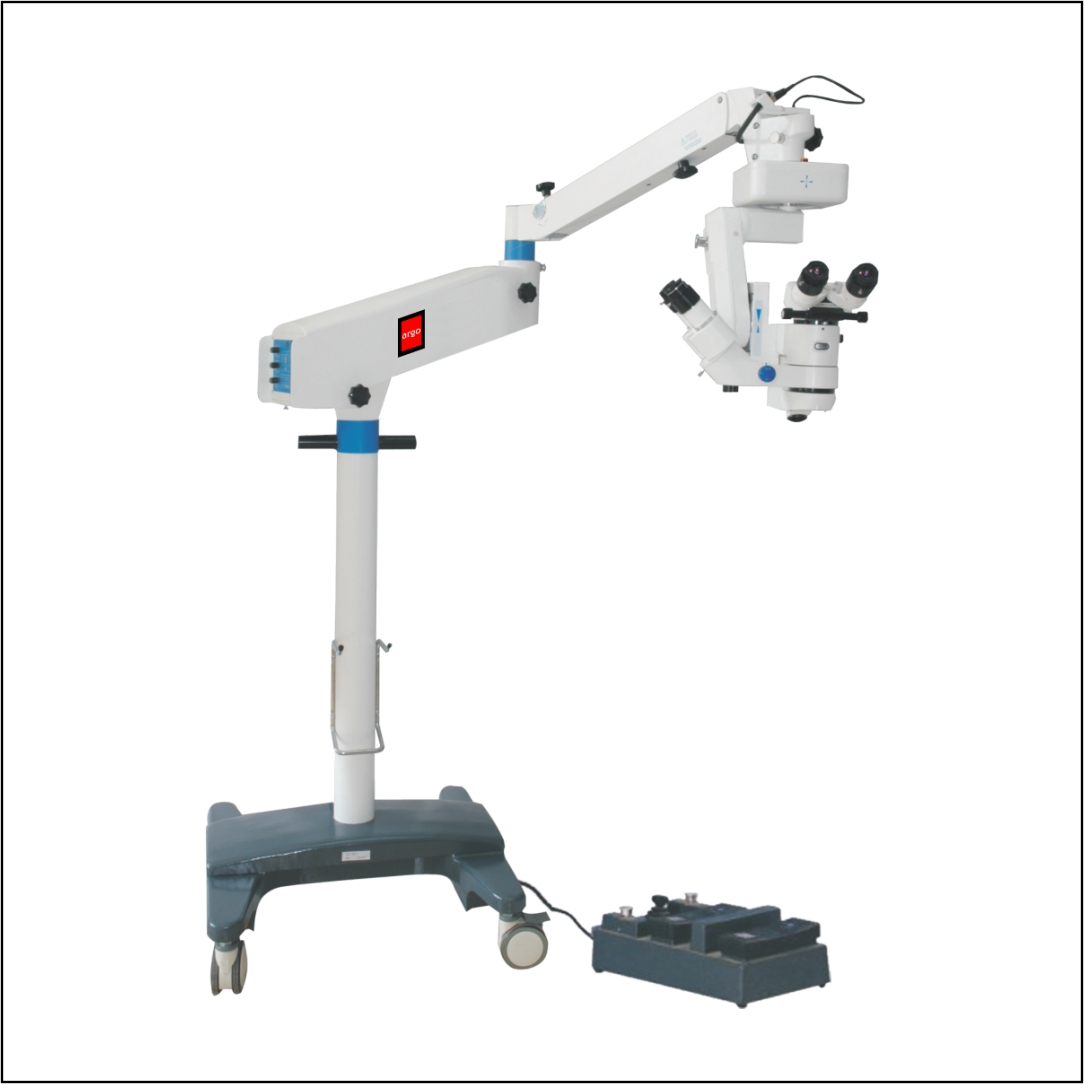

AOM8211D

Eyepiece Magnifications

12.5X

Objective Lens

f=200mm

Working Distance

170mm

Magnifications for Main Microscope

4.6X ~ 27X motorized and manual control continuous magnification

Magnifications for Assistant Microscope

6X , 10x , 16x

Diameter of Field

ɸ46mm ~ ,ɸ8.5mm

Adjustable Diopter

±5D

Adjustable range of Pupil Distance

55mm ~ 75mm (main microscope is 45mm ~80mm)

Focus for Assistant Microscope

≥30mm

Illumination Source

12V/100W, Cold reflection halogen lamp  for medical use

Illumination Type

6° +0° coaxial illumination of cold light source, 26° Oblique Illumination.

Coaxial Illumination

≥60000lx, 1~9 level, panel operated

Oblique Illumination

≥60000lx,1 ~9 level, panel operated

Reaching Radius of Arm

1230mm

Adjustable Vertical Range

880mm ~ 1420mm

Fine Focusing Speed and Range

≤2mm/s, 50mm

Speed for X/Y and Range

≤2mm/s, 50mmx50mm

Power Supply

AC 110/220V ±10%, 50Hz/60Hz

Power Consumption

170VA

Fuse

T4.0AL 250V, T8.0AL 125V

Packing Volume

0.756m³ , 5catons

Total Gross Weight

215Kg
