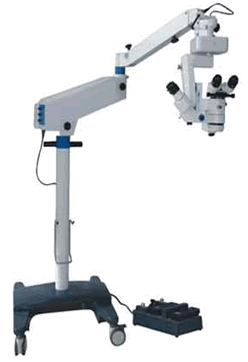

AOM 8211 OPERATION MICROSCOPES

Features:

• Modularized and individualized design
• 4.5x-25x zoom magnification
• Suitable for all kinds of ophthalmic operations
• Digital multi-channel electronic control system
• Main scope with zoom magnification and assistant microscope with three steps magnification

Specifications:

• Magnification of eyepiece:12.5X/18B
• Visual angle of eyepiece:60º ~90º
• Work distance: 170mm
• Magnification: 4.5X~25X
• Visual´s field diameter: 38mm- 90mm
• Illumination: 6º+0º coaxial illumination, 26º oblique illumination
• Light source: 12V/100W halogen lamp
• Illumination control: continuously digital adjustable
• Lux on objective plane: 100,000LX
• Focusing range and speed: 40mm, speed continuously adjustable
• X-Y range and speed: 50mm, 50mm.
• Speed continuously adjustable.

Optional accessories:

• Assistant scope
• Beam Splitter
• Teaching tube.
