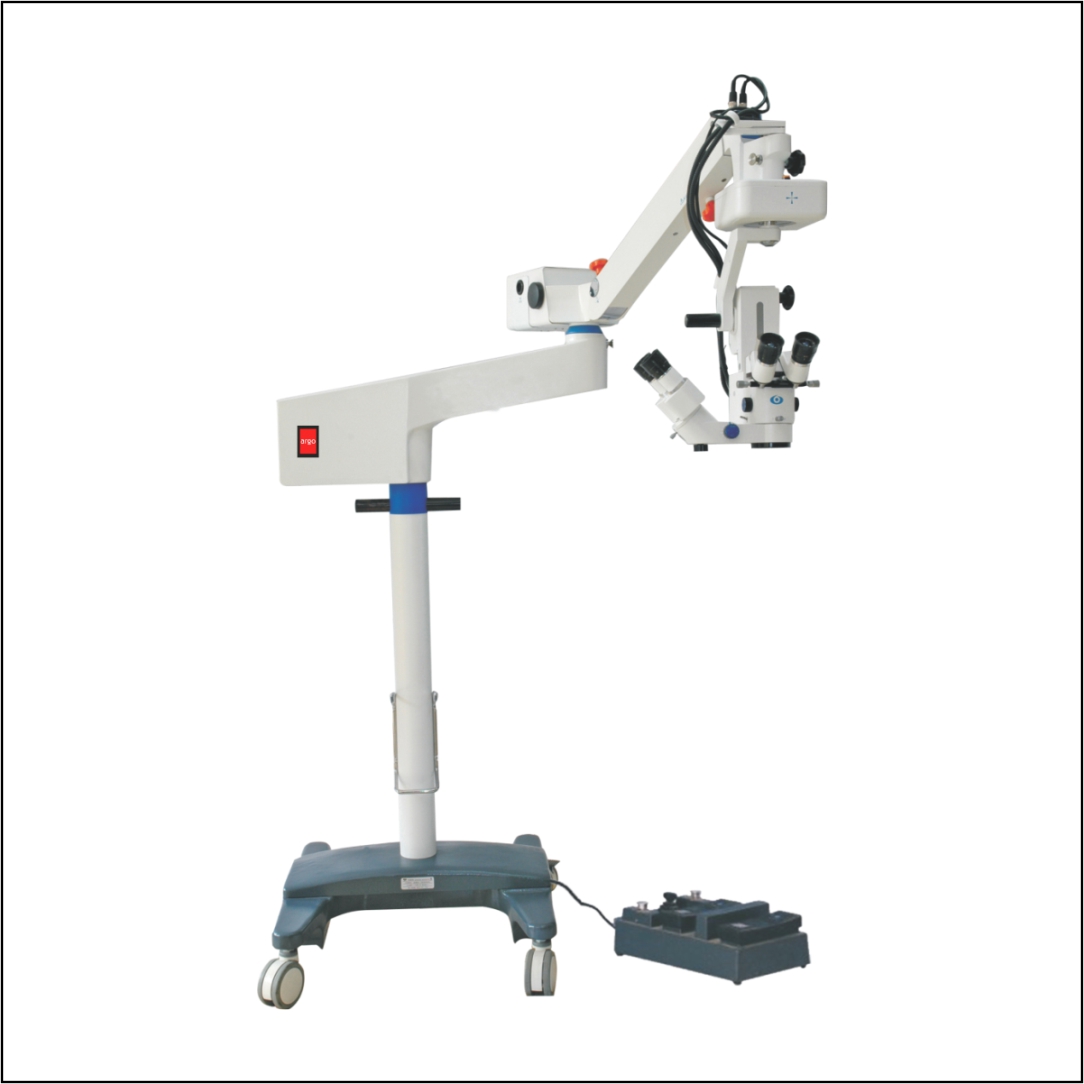

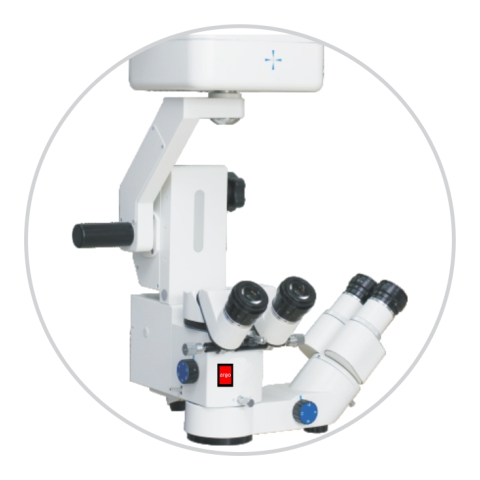

AOM 8210 OPERATION MICROSCOPES

Eyepiece Magnifications

12.5X

Objective Lens

f=200mm

Working Distance

190mm

Magnifications for Main Microscope

4X , 6X , 10X , 16X , 25X

Magnifications for Assistant Microscope

6X , 10x , 16x

Diameter of Field

ɸ58mm , ɸ38mm , ɸ 23mm , ɸ 14mm , ɸ 9mm

Adjustable Diopter

±5D

Adjustable range of Pupil Distance

55mm ~ 75mm

Focus for Assistant Microscope

≥30mm

Illumination Source

12V/100W, Cold reflection halogen bulb for medical use

Illumination Type

6° +0° coaxial illumination of cold light source and 20° Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable.

Coaxial Illumination

≥50000lx

Oblique Illumination

≥45000lx

Reaching Radius of Arm

1240mm

Adjustable Vertical Range

850mm ~ 1350mm

Fine Focusing Speed and Range

≤2mm/s, 50mm

Speed for X/Y and Range

≤2mm/s, 50mmx50mm

Power Supply

AC 110/220V ±10%, 50Hz/60Hz

Power Consumption

330VA

Fuse

T4.0AL 250V, T8.0AL 125V

Packing Volume

0.786m³ , 5catons

Total Gross Weight

213Kg
