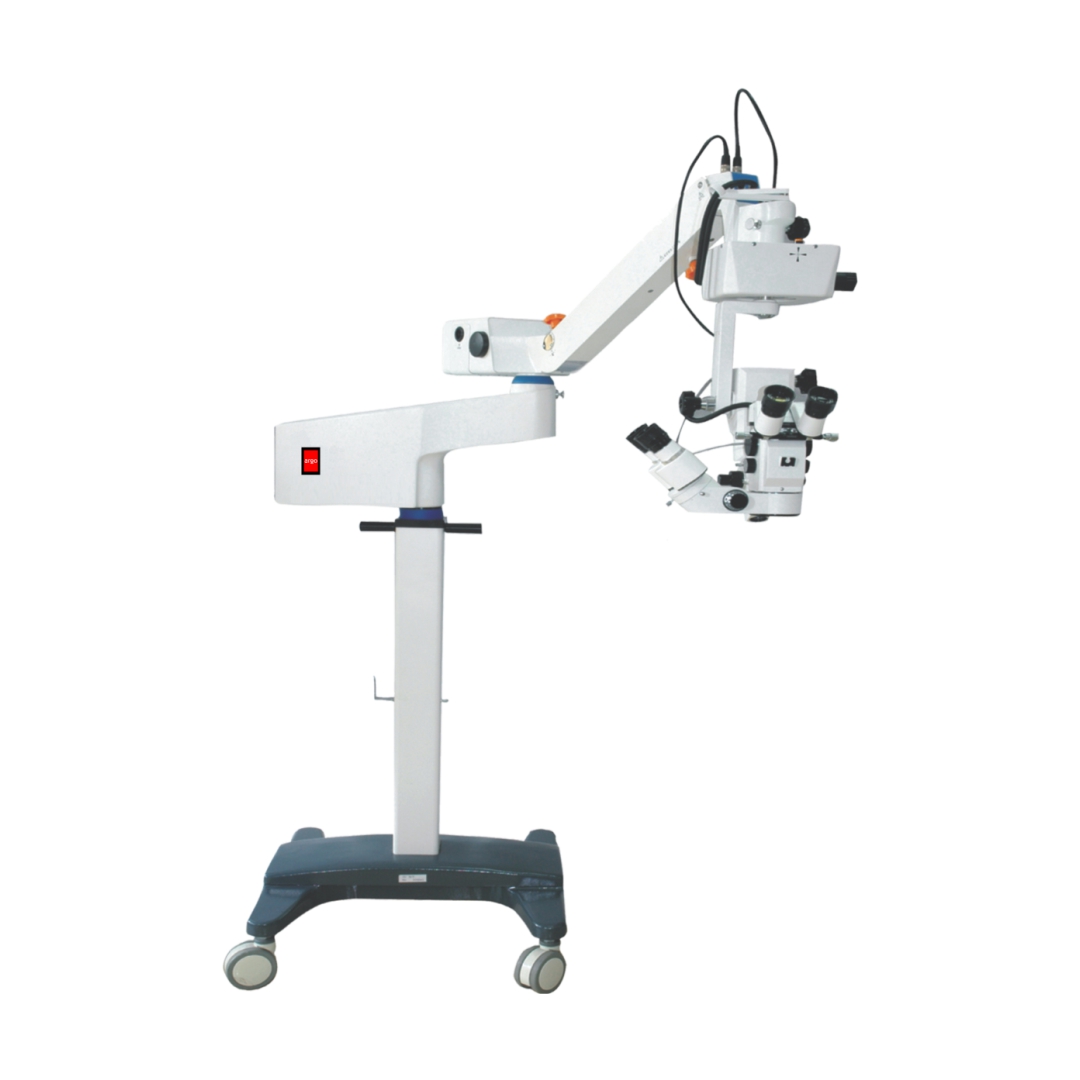

AOM 8209 OPERATION MICROSCOPES

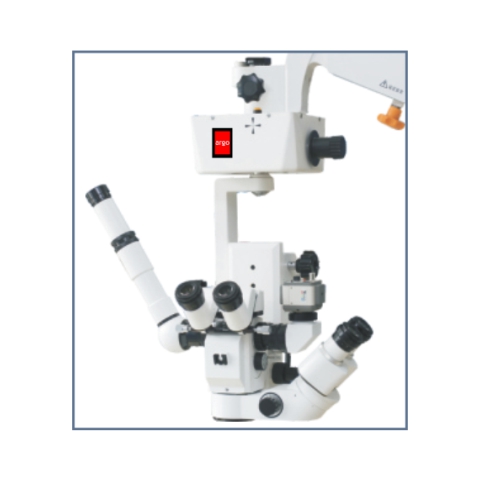

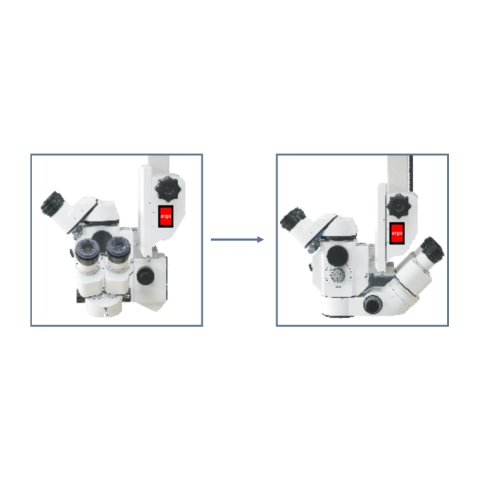

Assistant microscope can be rotated to opponent microscope.

Internal beam splitter can be connected with teaching tube and CCD system.

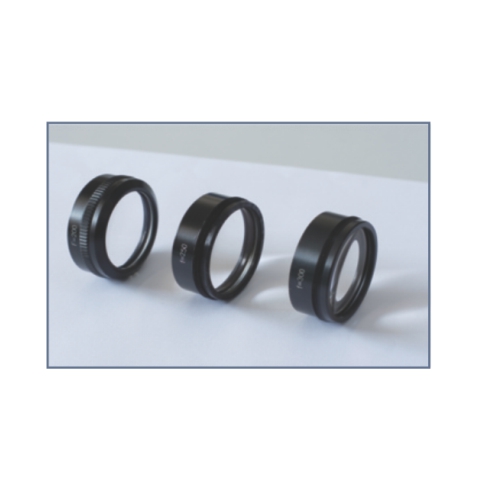

Equipped with three different objective lenses (f200/f250/f300) which can be applicable in ophthalmic surgery, orthopedic surgery and hand surgery.

Oblique illumination can also be used as slit illumination and slit width is adjustable.

Specifications: AOM8209

Eyepiece Magnifications	12.5X
Magnifications for Main Microscope	F=200: 4X 6X 10X 16X 25X F=250: 3.2X 5X 8X 12.8X 20X F=300: 2.7X 4.2X 6.7X 11X 17X
Working Distance	F=200: 190mm F=250: 240mm F=300: 290mm
Magnifications for Assistant Microscope	F=200: 6X 10X 16X F=250: 5X 8X 12.8X F=300: 4.2X 6.7X 11X
Adjustable Diopter	±5D
Adjustable range of Pupil Distance	55mm ~ 75mm
Illumination Source	12V/100W, Cold reflection halogen bulb for medical use
Illumination Type	6° +0° coaxial illumination of cold light source and 25° Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable and its angle is 360° rotatable.
Coaxial Illumination	≥50000lx
Oblique Illumination	≥45000lx
Reaching Radius of Arm	1040mm
Adjustable Vertical Range	850mm ~ 1350mm
Fine Focusing Speed and Range	≤2mm/s, 50mm
Speed for X/Y and Range	≤2mm/s, 50mmx50mm
Power Supply	AC 110/220V ±10%, 50Hz/60Hz
Power Consumption	330VA
Fuse	T4.0AL 250V, T8.0AL 125V
Packing Volume	0.727m³ , 5catons
Total Gross Weight	210Kg
