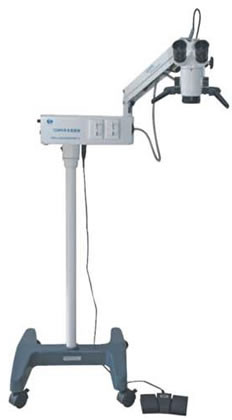

AOM 8208-OPERATION MICROSCOPES

Optional accessories:

• 1/2" or 1/4" CCD camera
• CCD adaptor
• Beam Splitter and relevant cables
• straight binocular tube
• universal structure( for ENT)
• five objectives: f175mm, f250mm, f300mm, f350mm, f400mm(12.5X eyepiece), 10X eyepiece.
• Desktop parts (holding bracket, column)
• portable package (including three canvas bags and a buggy) at customer´s option.

Features:

• Magnification adjustable to best suit for different operation
• The coaxial illumination to offer the best image of either anterior chamber or posterior chamber
• Foot control for automatic focus, and the maximum focusing range is 30mm
• Built-in spare bulb makes the bulb change more quickly
• The microscope is portable and the height can be flexible adjusted. The total weight is only 33kg.

Specifications:

• Focus of objective lens: F200(175, 250, 300, 350, 400)mm
• Magnification of eyepiece: 12.5X/18B
• Visual angle of eyepiece: 45º, 90º (f200)
• Magnification (f200): 5.3X, 8X, 12X (f200)
• Diameter of visual field(f200): 38, 25, 17(mm)
• Illumination: 6º+0º coaxial illumination
• Light source: 12V/100W halogen lamp
• Illumination control: continuously adjustable
• Lux on objective plane. 30,000Lx; range and speed of focusing: 30mm, 2mm/s
• Ophthalmology operation microscope objective focus:200mm
• oblique binocular scope
• 60+00 coaxial illumination ensuring the best red spectrum reflection
• Optional table/hanging fixation
• hand/foot control
• standardized column and arm
• XYZ control system.
