XL Advantage Binocular Loupes

Name: Mercoframes Optical Corp – Xl Advantage Binocular Loupes
Brand: Mercoframes Optical Corp

Medical lighting and binocular loupes Get More Information Inquiry About this product

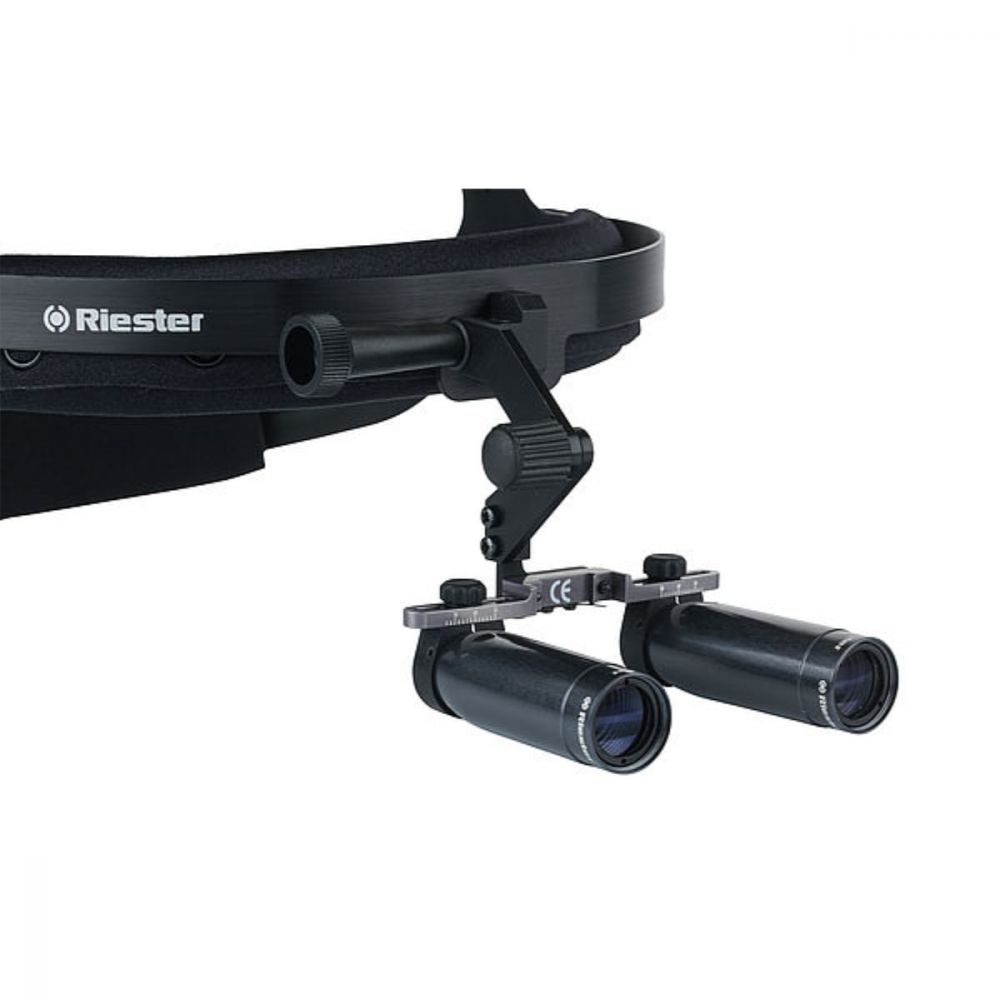

XL Advantage Binocular Loupes

The XL Advantage Binocular Loupes are a magnification system offering 3.5x, 4.5x and 5.5x magnification.

Excellent clarity for the experienced loupe users

XL Advantage Binocular Loupes feature a sophisticated lens and prism system that offers greater magnification and the optical path extension at surgical working distances. Excellent clarity for the experienced loupe users can be achieved by the XL Advantage Binocular Loupes. It is suitable for cardiovascular, neurosurgery, ophthalmology and dentistry: Endo, crown, bridge, lab work, technician.

XL Advantage Binocular Loupes details

Binocular Loupes	Magnification	Working distance	Field of view
XL Advantage Binocular Loupes 3.5x	3.5 x	34 cm	5.5 cm
	3.5 x	42 cm	7.1 cm
	3.5 x	46 cm	7.9 cm
XL Advantage Binocular Loupes 4.5x	4.5 x	34 cm	4.6 cm
	4.5 x	42 cm	6.1 cm
	4.5 x	46 cm	6.9 cm
XL Advantage Binocular Loupes 5.5x	5.5 x	34 cm	3.5 cm
	5.5 x	42 cm	4.7 cm
	5.5 x	46 cm	5.3 cm

Features and benefits

3.0 x magnification
High resolution loupe
5-element loupe offers a 15% increased field of view, and visually flat field from edge to edge
Ideal for ophthalmologists

Specifications: xl-Advantage-binocular-Loupes

Product details

XL Advantage Binocular Loupes

Ambient temperature	+ 10 °C to + 35 °C
Relative humidity	30 % to 90 % non-condensing
Air pressure	800 hPa - 1060 hPa
Shock (without packing)	10 g, duration 6 ms
Storage/ Transport temperature	- 10 °C to + 55°C
Storage/ Transport relative humidity	10 % to 95 % non-condensing
Storage/ Transport Air pressure	700 hPa - 1060 hPa
Vibration, sinusoidal	10 Hz to 500 Hz: 0.5 g
Shock	30 g, duration 6 ms
Bump	10 g, duration 6 ms
