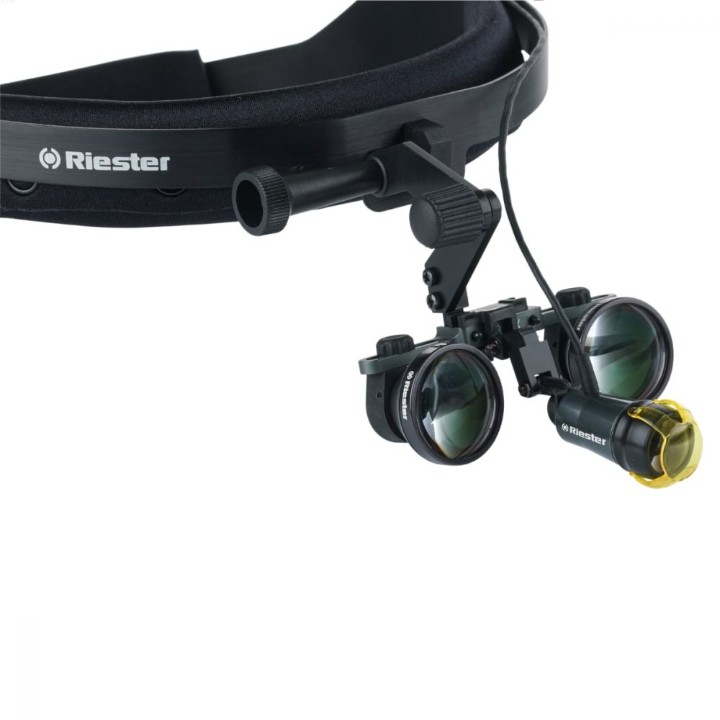

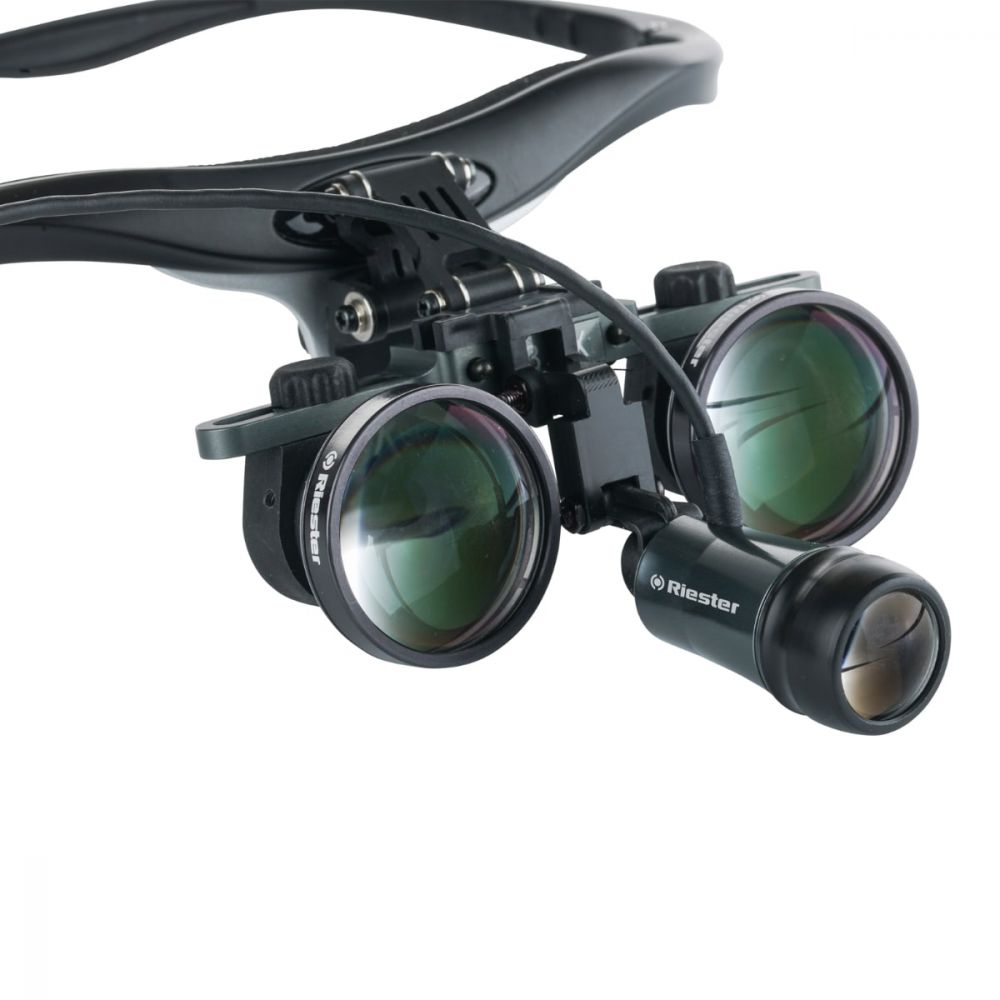

K-LED loupe portable light system is an additional accessory for use with the SuperVu loupe systems. K-LED loupe portable light system provides homogeneous light with a brightness of up to 34.000 lux, while coaxial illumination ensures shadow free viewing.

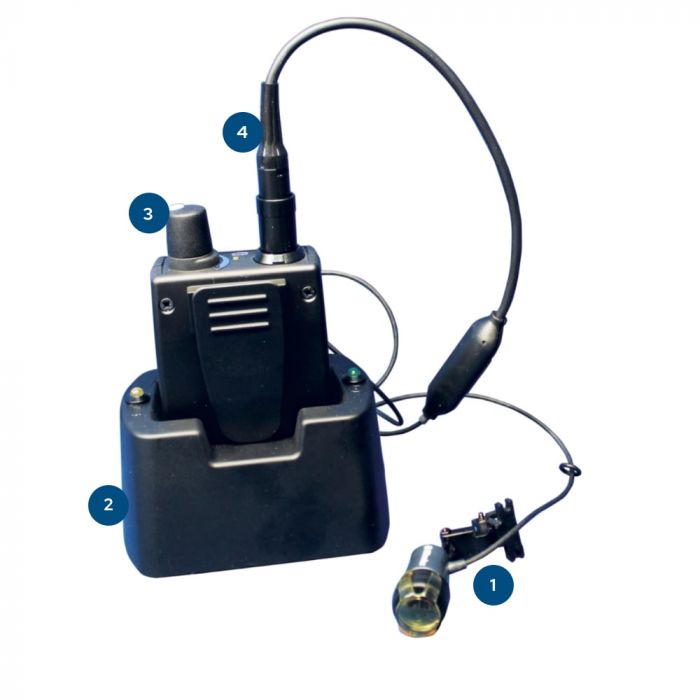

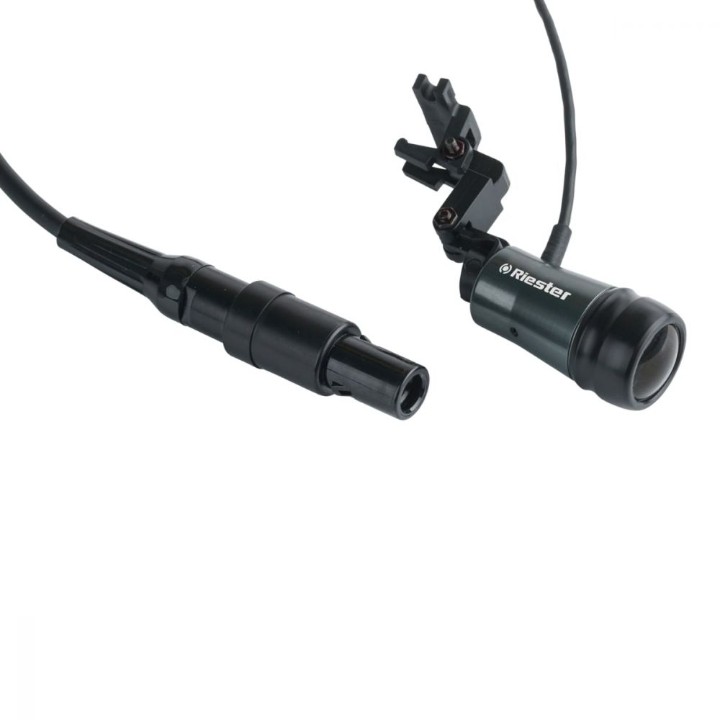

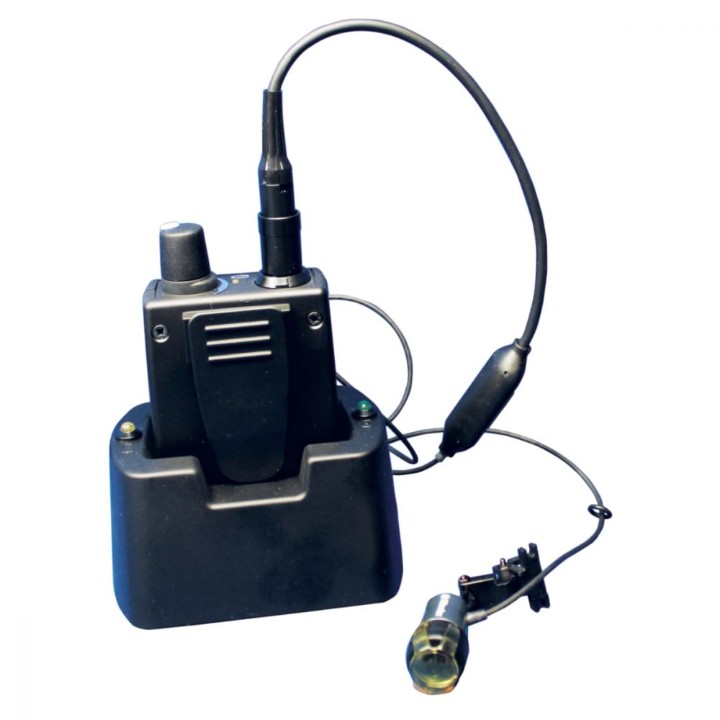

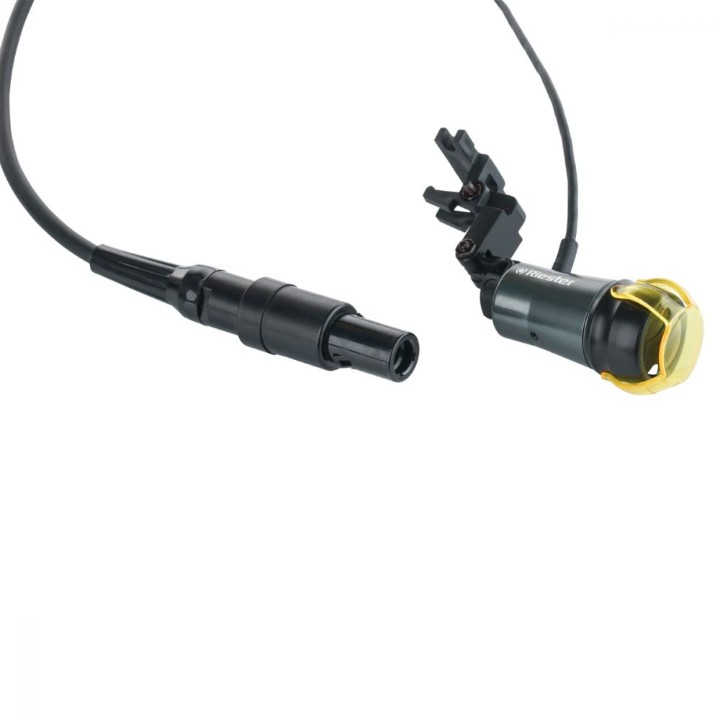

The K-LED loupe portable light system is intended to be used at working distances in the range 340 mm to 500mm, ideal for both surgical and dental use. The 3W LED is coaxially attached to the frame and operates with a Li-ion battery pack, enabling permanent operation of up to approx. 4 hours.
| Input mains data | 100-240V – 50/60Hz 700mA |
| Power supply rating | 12 V: 2.5 amps |
| Working distance | 340-500 mm |
| Ambient temperature | + 10 °C to + 35 °C |
| Relative humidity | 30 % to 90 % non-condensing |
| Air pressure | 800 hPa - 1060 hPa |
| Shock (without packing) | 10 g, duration 6 ms |
| Storage/ Transport temperature | - 10 °C to + 55°C |
| Storage/ Transport relative humidity | 10 % to 95 % non-condensing |
| Storage/ Transport Air pressure | 700 hPa - 1060 hPa |
| Vibration, sinusoidal | 10 Hz to 500 Hz: 0.5 g |
| Shock | 30 g, duration 6 ms |
| Bump | 10 g, duration 6 ms |
