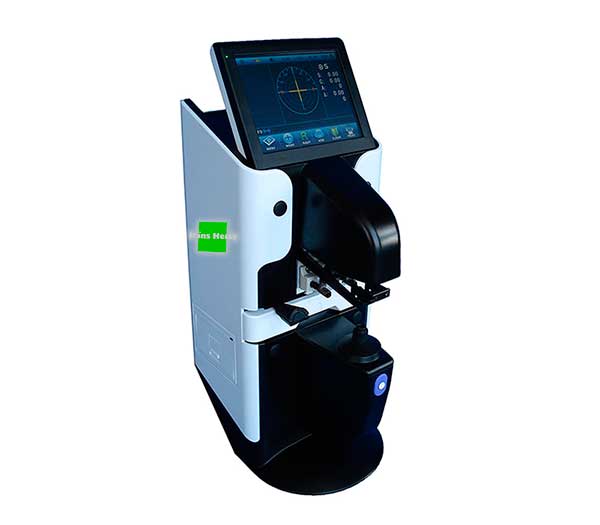

Automatic recognition of single and progressive lens, as a new generation auto lensmeter, HANS HEISS HLM6045 design is based on Hartmann Sensor Technology.
Advanced simultaneous measurement of 108 points provides a faster measurement with greater accuracy and reliability.
Easy to use with recognizable icons, HANS HEISS HLM6045 provides a user-friendly graphical interface for an immediate understanding.
Tilting color screen provides you with clear view from any position such as sitting and standing.
Just touch the screen can finish your measurement. Your operation could be easier and more convenient.
Automatic measurement of progressive lenses, a graph helps the operator to improve accuracy and speed in the measurement of near and far vision.
Just holding the lens through the sensor, the display will easily indicate the UV measurement by the progress bar.
Quick data print with built-in printer. Easy to reload printing paper
Range of measurement
|Sphere||0 ~ ±25D 0.01/0.12/0.25D steps|
|Axis||~ 180° (1° steps)|
|ADD||0 ~ ±9.99D 0.01/0.12/0.25D steps|
|Prism Degree||0 ~ 15A 0.01/0.12/0.25A steps|
|Cylinder||+, +/-, -|
|Measuring Mode||Single/progressive/automatic recognition|
|Diameter of Lens||20-108mm|
|PD||40~90mm, 0.5mm steps|
|Speed of measurement||0.1s|
|Display||TFT LCD (5.6”) 640*480|
|Dimension||222(L) * 161(W) * 372 (H) mm|
|Package||390(L) * 320(W) * 515(H) mm|
|Power Supply||100-240V 50-60HZ|
