ri-scope® F.O. Tongue Blade Holder

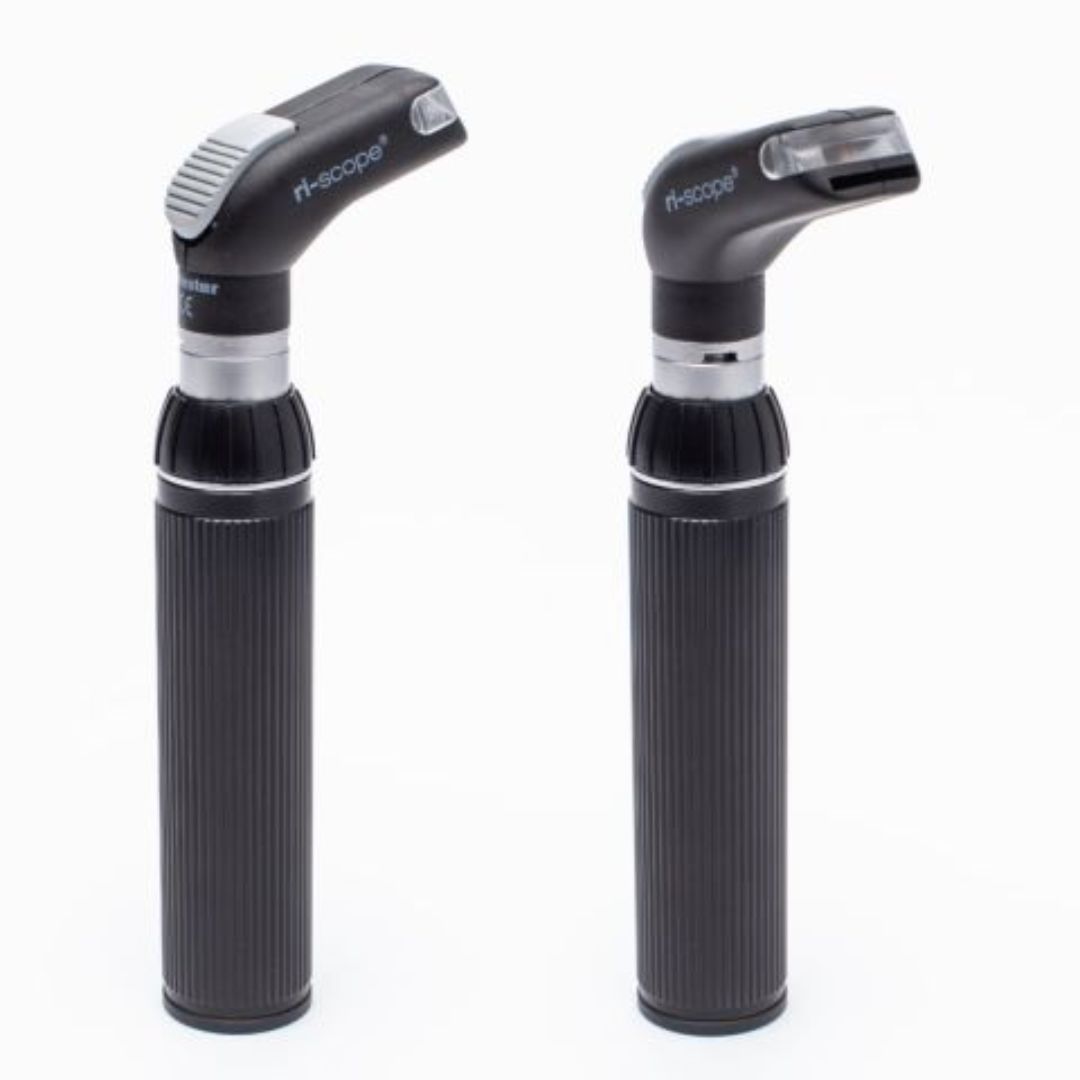

One of the many accessory heads available for the ri-scope® L handle, this is the fibre optic Xenon or LED illumination tongue blade holder. ri-scope® fibre optic tongue blade holder is hand-held instrument for diagnosis of the throat with fibre optic.

Designed for use with ri-former Diagnostic Station

ri-scope® F.O. tongue blade holder head is also designed for use with the ri-former® Diagnostic Wall System and features an anti-theft device. It has a slide attachment for inserting and removing wooden tongue depressors for a firm hold.

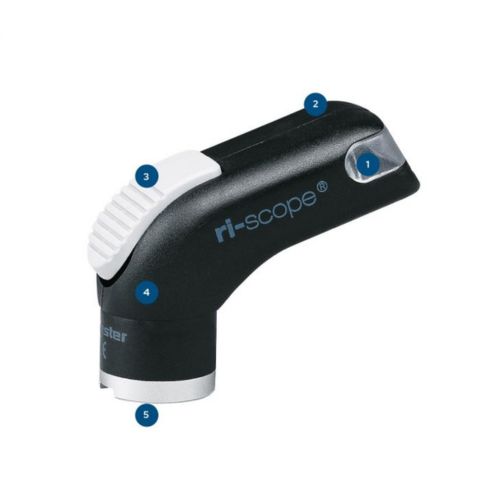

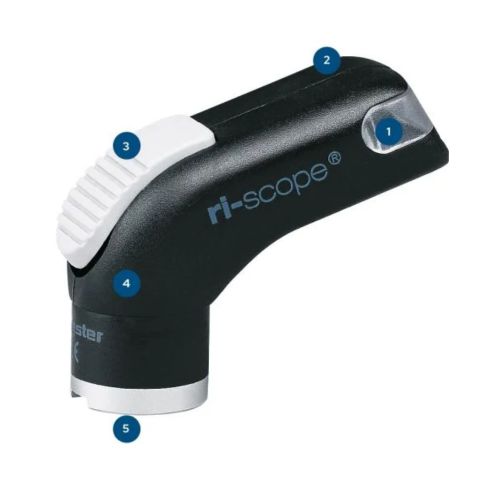

ri-scope F.O. Tongue Blade Holder details

Light guide
Plastic housing
Sliding mechanism for spatulas
Internal fibre optics
Bayonet fitting to quickly switch instrument heads

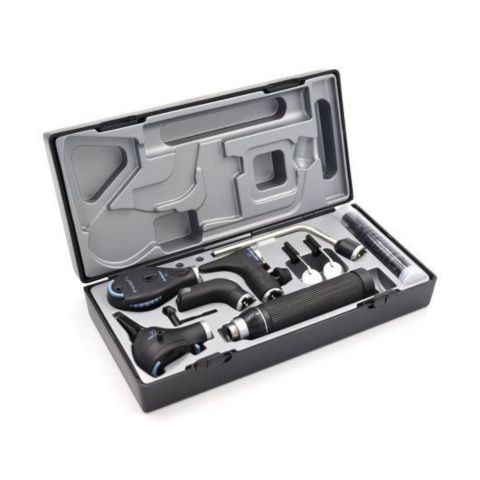

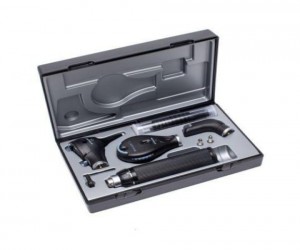

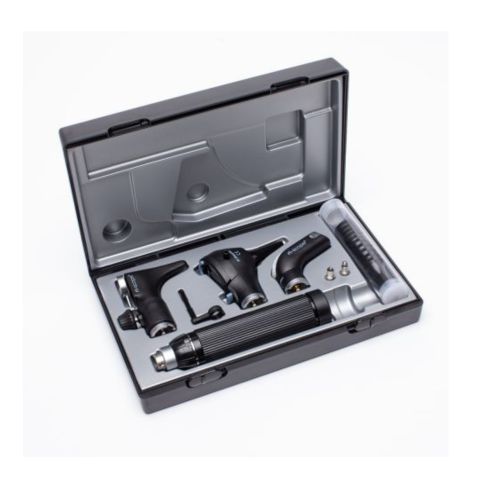

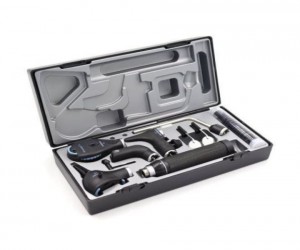

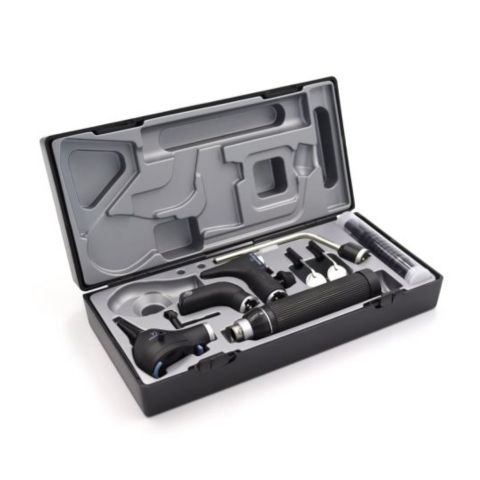

ri-scope F.O. Tongue Blade Holder, sets and accessories

ri-scope® E.N.T

ri-scope® praktikant

ri-scope® de luxe

ri-scope® perfect

Features and benefits

With XL 2.5 V, XL 3.5 V xenon lamps or 3.5 V LED
High-quality fibreoptic light wave conductor for optimal beaming and transmission of the light. In combination with the lamp this provides cool examination light like daylight
Slide attachment for fixing and detaching wooden tongue depressors for a firm hold
Sturdy, very light casing made of ABS plastic for a long service life

Specifications: ri-scope FO Tongue Blade Holder

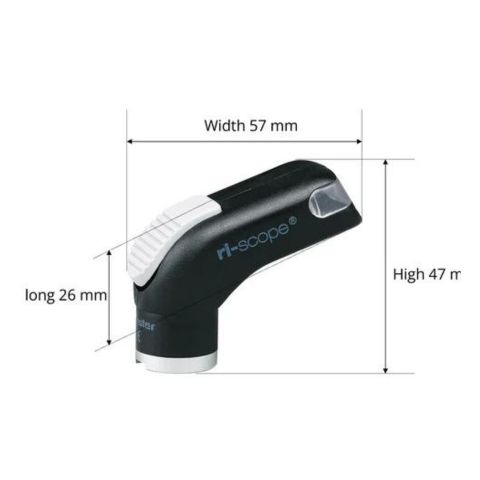

Dimension

The lamp for ri-scope® F.O. tongue blade holder	Tongue depressor XL 2.5 V
	2.5 V 750 mA mean life span 15 h
	Tongue depressor XL 3.5 V
	3.5 V 720 mA mean life span 15 h
	Tongue depressor LED 2.5 V
	2.5 V 280 mA mean life span up to 50,000 h1
	Tongue depressor LED 3.5 V
	3.5 V 280 mA mean life span up to 50,000 h1
Ambient temperature	0° to +40° C
Relative humidity	30% to 70% non-condensing
Storage/ Transport ambient temperature	-10° to +55°C
Storage/ Transport relative humidity	30% to 85% non-condensing
Air pressure/ Transport relative humidity	800 hPa - 1100 hPa
