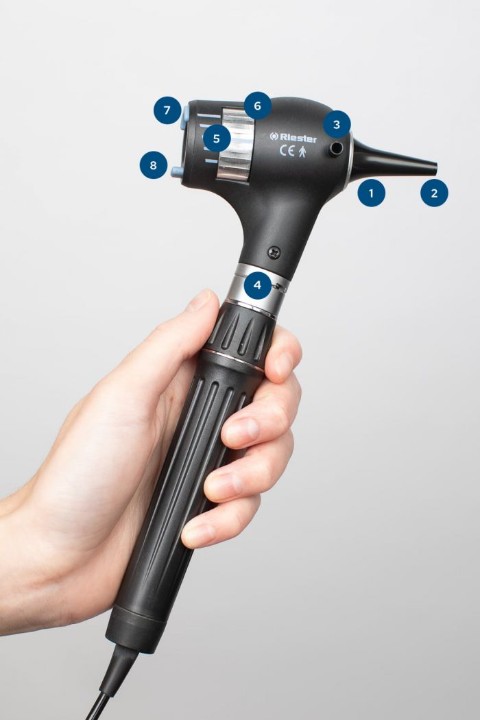

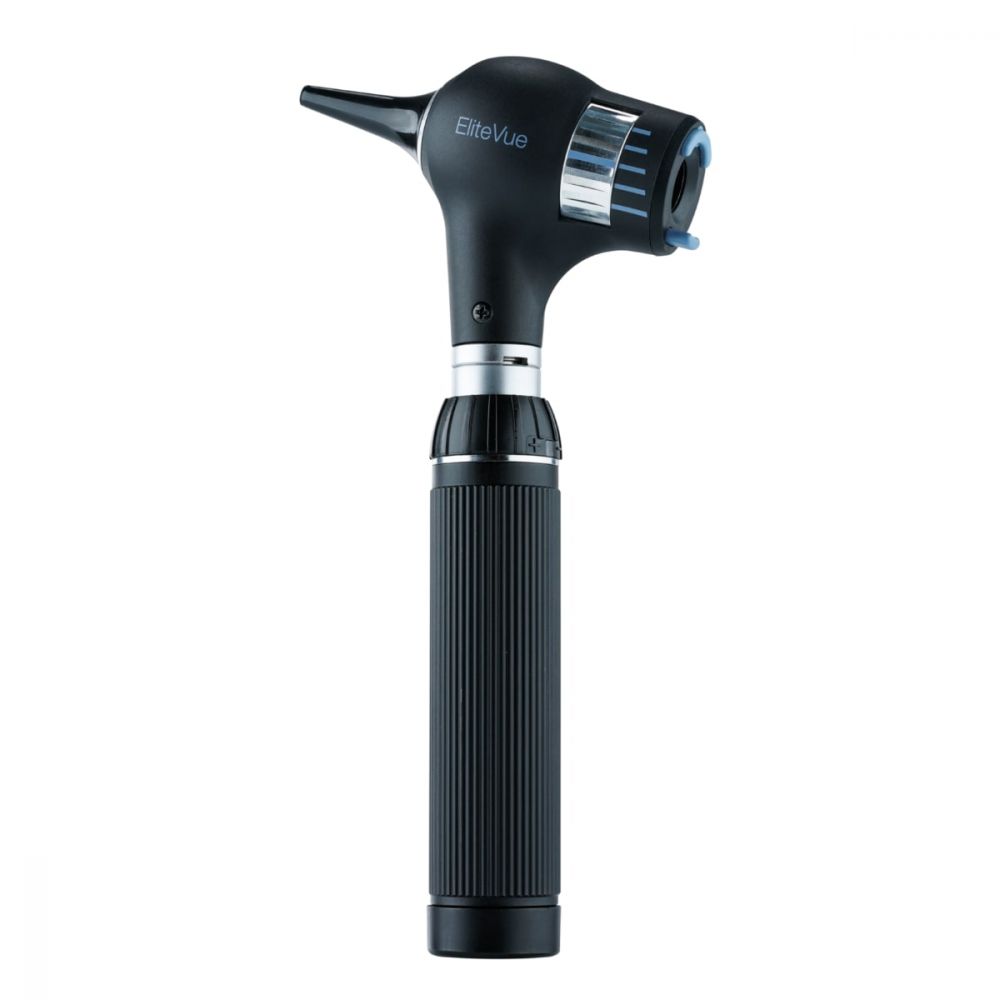

The EliteVue Macro Otoscope is our top of the line, premium otoscope option. The otoscope has 5x magnification and a wheel to adjust focal depth, a specula ejection feature and your choice of battery power. Charging and battery options include, C cell alkaline batteries, a USB plug in charger with Lithium Ion batteries or a desk top charging base for use with Lithium Ion batteries. The C cell size handles are sturdy and robust. The collar on the handle has a +/- to turn the otoscope on, as well as brighten or dim to your liking. The otoscope also comes equipped with an auto shut off feature after 180 seconds to preserve battery and bulb life. The two options for illumination are LED or Xenon.
EliteVue offers a 5x magnification and a field diameter of 11 mm. Twice the field of view provides a complete view of the auditory canal and tympanic membrane and eliminates the need for panning the otoscope, supporting a more efficient diagnosis.

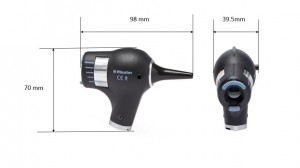

| Dimensions |
 |
| 5 x magnification | The lens system offers 5 x magnification and a field of view of 11 mm in diameter at a distance of about 20mm. |
| The lamp for EliteVue XL | XL 2.5 V, 2.5 V, 750 mA, average life span 15 h XL 3.5 V, 3.5 V, 750 mA, average life span 15 h |
| The lamp for EliteVue LED | LED 2.5 V, 2.5 V, 280 mA, average life span 10,000 h LED 3.5 V, 2.5 V, 280 mA, average life span 10,000 h |
| Ambient temperature | 0 ° to +40 °C |
| Relative Humidity | 30% to 70% noncondensing |
| Storage/ Transport Ambient temperature | -10° to +55°C |
| Storage/ Transport relative Humidity | 10% to 95% noncondensing |
| Air pressure | 800 hPa - 1100 hPa |
