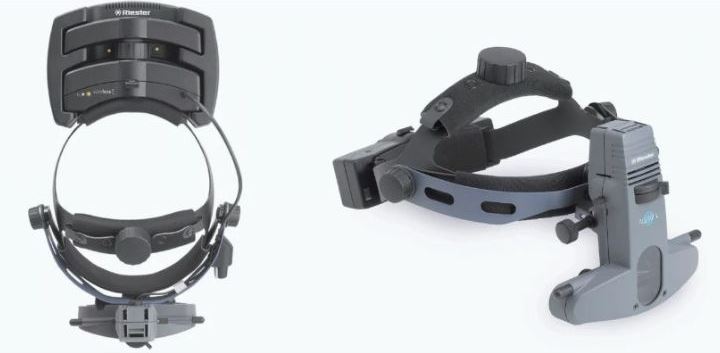

All Pupil II Indirect Ophthalmoscope

The All Pupil II Indirect Ophthalmoscope offers high-contrast, clear images with the world’s leading Keeler optics. The All Pupil II has ergonomically adjustable lighting; in addition to the xenon version available up to now, it is currently available also in an innovative and high-performance LED version that is setting the standard.

Available in many versions

Available with either wall attachment and cable connected power supply for stationary use, or as a mobile version with high-performance battery pack attached to the belt or as a completely wireless version for absolute freedom of movement without compromise. In this version a balanced Li-ion battery pack is attached to the rear of the browband for best comfort while maintaining full lighting performance.

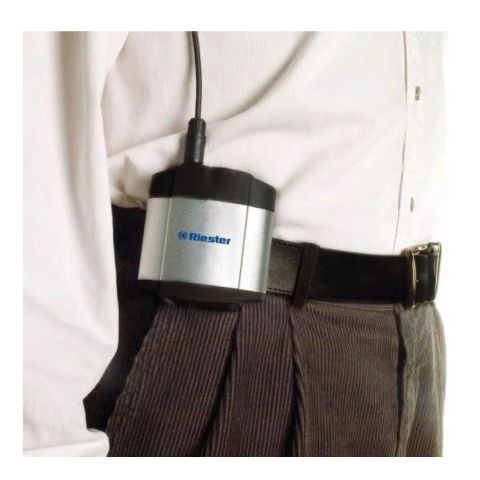

High-performance battery pack attached to the belt.

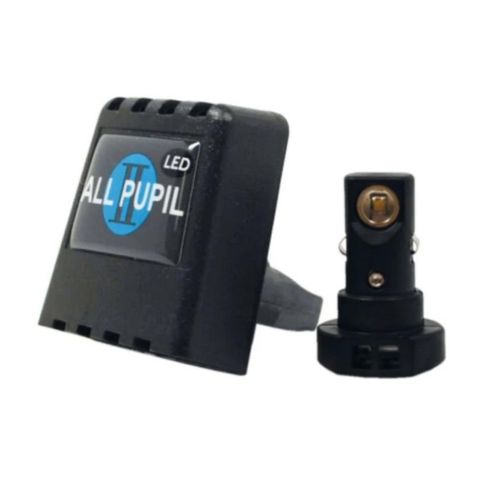

All Pupil II LED and power conversion.

Features and Benefits

Riester’s All Pupil II uses specially coated and individually laser-cut lens for best sight
Comes equipped with an especially soft and comfortable upholstered headband
An IR and UV filter is integrated for the patient’s best possible protection
Easily accessible xenon bulb or LED for working with as few interruptions as possible
LED bulb offers life expectancy of 10,000 hours
Adjustable light intensity
Includes high-performance lithium-ion battery
Cable connection or wireless power supply
5 year warranty
The wide-angle diffuser eliminates shadows at the edge of the lens which enlarges the field of vision considerably (shown in image below)

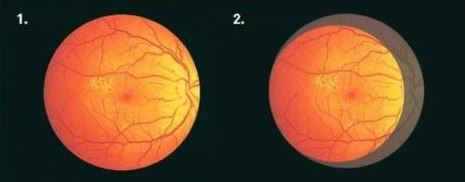

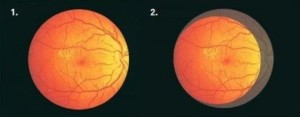

Fundus display with a Vilk lens: 1 with diffuser, 2 without diffuser

Pupil distance: 47 – 75 mm

Specifications: all-pupil-ii-indirect-ophthalmoscope

All Pupil II

Input mains data	100-240V – 50/60Hz
Power supply rating	12V: 2.5amps

API II LED

Voltage	6V DC
Light output	Minimum 1500 LUX 1
Ambient temperature	+10 ° to +35 °C
Relative humidity	30% to 90% non-condensing
Air pressure	800 hPa - 1060 hPa
Shock (without packing)	10 g, duration 6 ms
Storage ambient temperature	-10° to +55°C
Storage relative humidity	10% to 95% non-condensing
Storage Air pressure	700 hPa - 1060 hPa
Vibration, sinusoidal	10 Hz to 500 Hz: 0.5g
Shock	30 g, duration 6 ms
Bump	10 g, duration 6 ms
