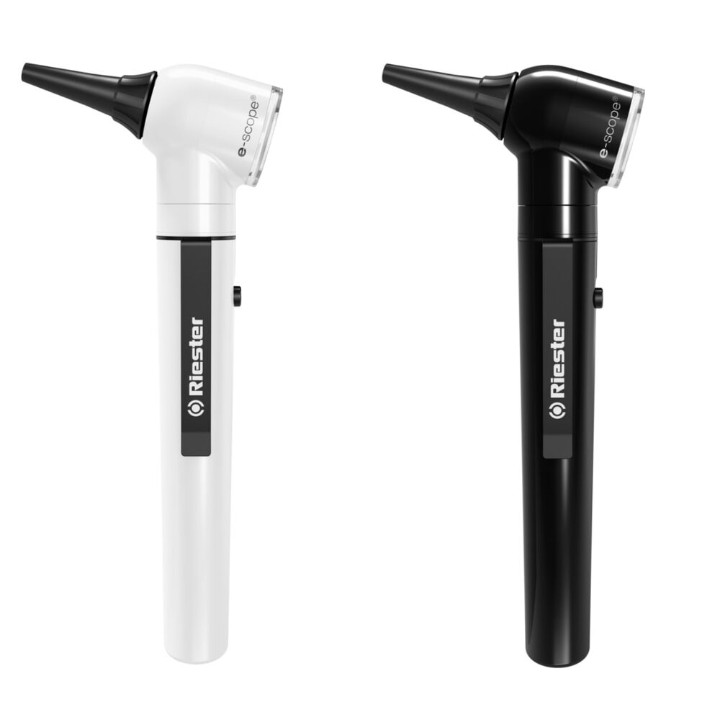

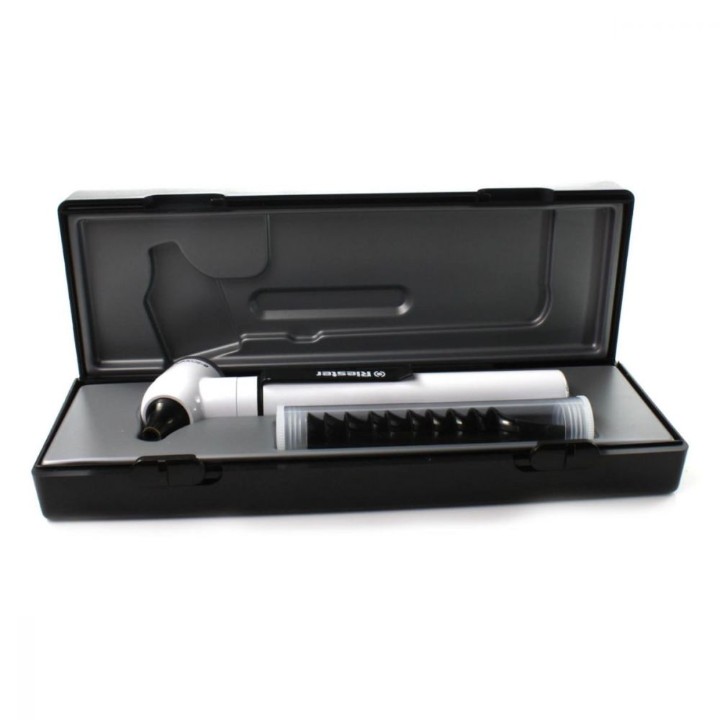

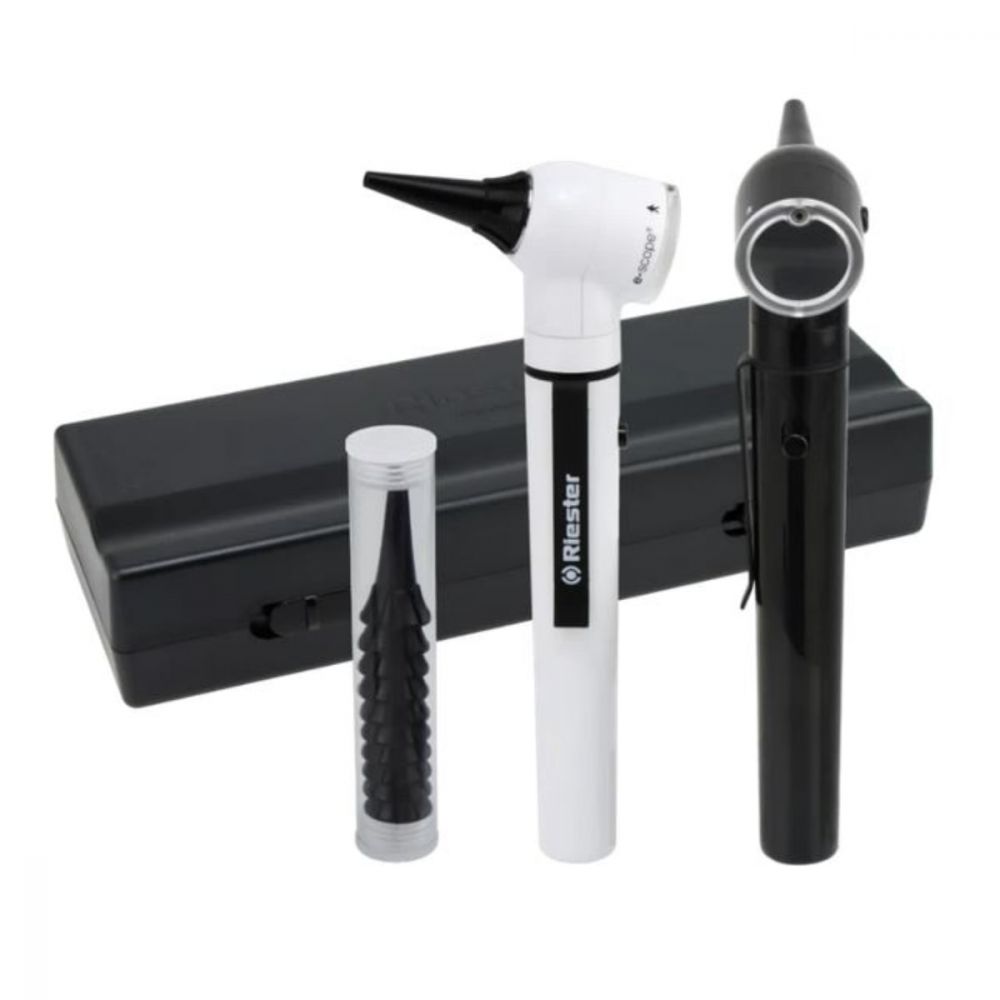

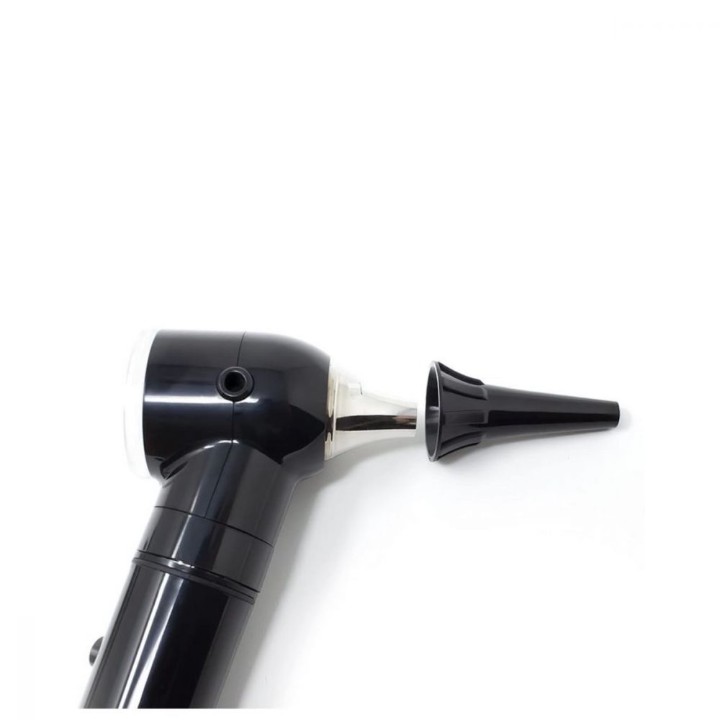

The e-scope® pocket otoscope is lightweight, economical otoscope at a perfect size and weight for you to carry in your pocket all day. The otoscope has AA size handles for use with alkaline batteries (sold separately), a pen clip to easily keep it in place, and LED or Xenon illumination. The instrument comes in a hook and loop closure case with a pack of 10 disposable specula.
<

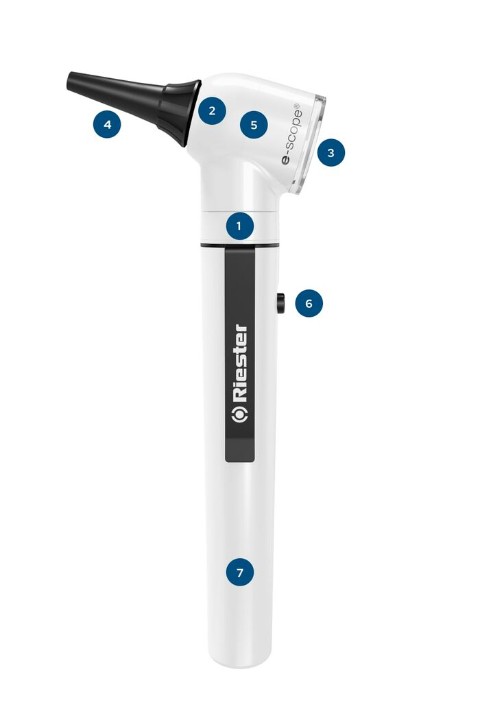

e-scope® otoscopes are available with vacuum direct illumination, F.O. xenon or F.O. 3.7 V LED. The otoscope has sealing precision optics pivotable to both sides with 3 x magnification for optimum view with sturdy ear specula receptacle in hardwearing hygienic metal.

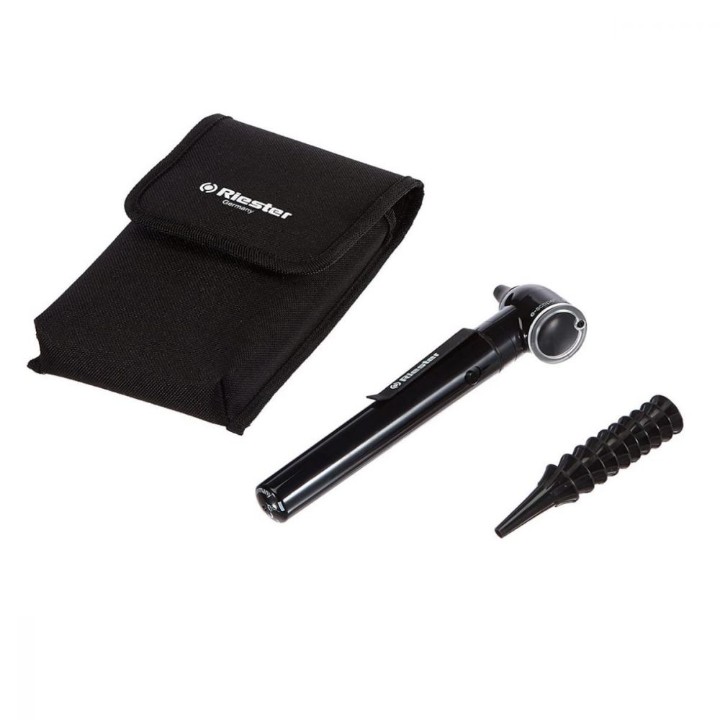

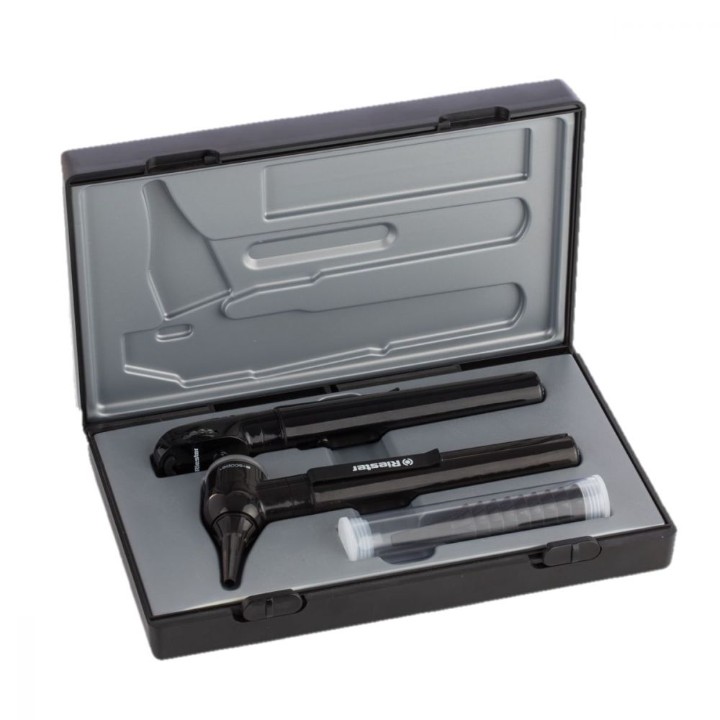

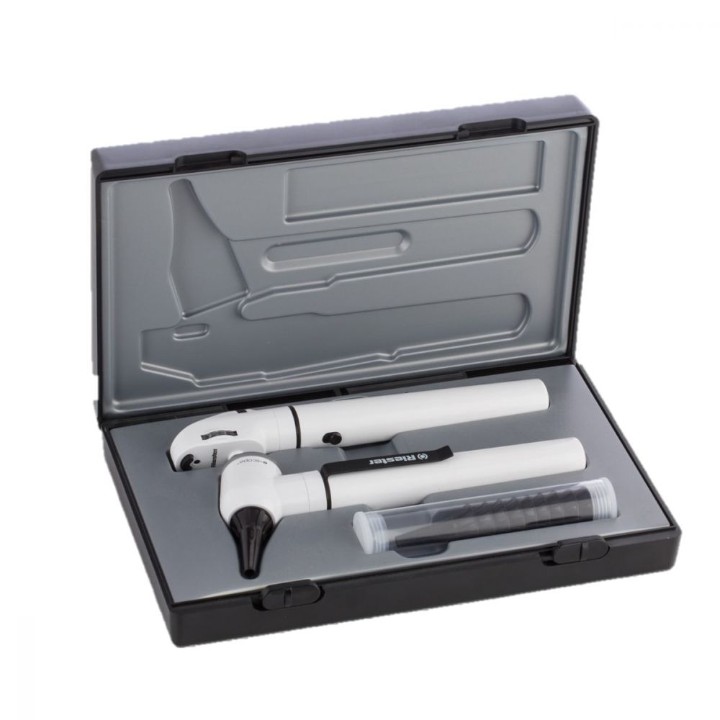

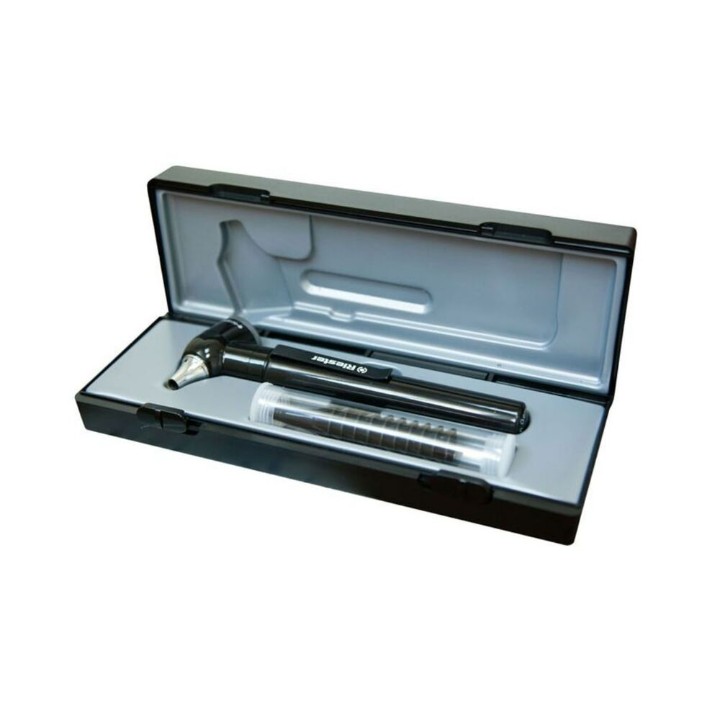

| Dimensions | 16.9x 4.9 x2.9 cm; 160 g 23 cm x 14 cm x 4,5 cm in hard case (set) 23 cm x 8,2 cm x 4,5 cm in hard case (single) 18 cm x 10,5 cm x 4 cm in pouch |

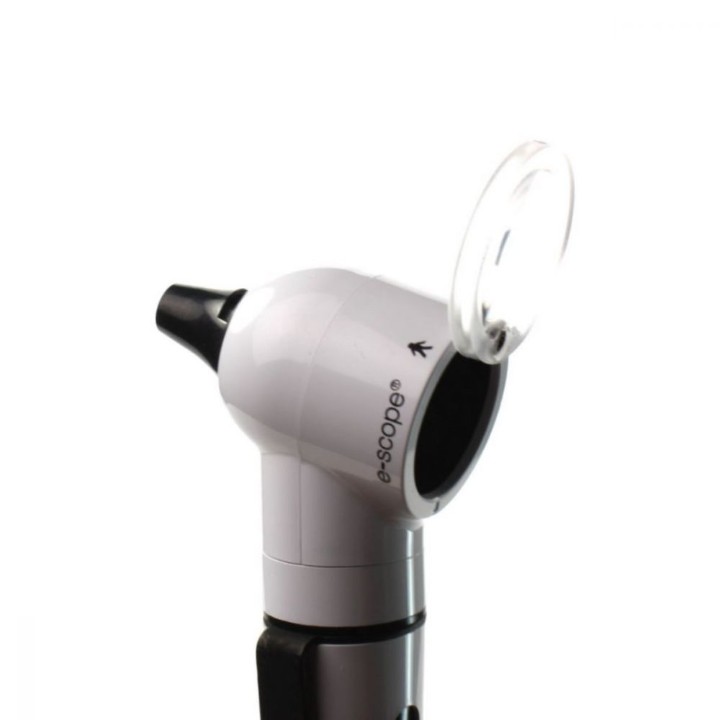

| 3x magnification lens | The 3x magnification lens can be rotated 360 °, 180 ° for instrument interventions through the open otoscope. |
| The lamp for e-scope® otoscope with direct illumination | Vacuum, 2.5 V 300 mA mean life span 15h XL, 2.5 V 750 mA mean life span 16.5h |
| The lamp for e-scope® F.O. Otoscope | XL 2,5 V 750 mA mean life span 15h LED 3,7 V 52 mA mean life span 20,000h |
| Battery | 2 Alkaline AA 1.5V batteries. |
| Ambient temperature | 0 ° to +40 ° C |
| Relative Humidity | 30% to 70% noncondensing |
| Storage/ Transport Ambient temperature | -10° to +55° |
| Storage/ Transport relative Humidity | 10% to 95% noncondensing |
