ri-former® Modular Diagnostic Station

A modular diagnostic system offering the optional modules which can measure blood pressure (NIBP), temperature, and with centralised electricity power supply it can support up to 5 instrument-handles with choice of heads; ophthalmoscope, otoscope, dermatoscope, retinoscope, tongue blade holder or nasal speculum.

Diagnostic station with flexible, modular design

The flexible, modular design is available as a mobile base, wall design or rail design, offering many configurations to suit the needs of hospitals, medical practices and clinics.

ri-former^® diagnostic station provides the healthcare professional (HCP) with the ability to assess their patient’s eyes, ears, nose, tongue and skin making it suitable for use across ENT and Dermatology.

Features and benefits

Design options

ri-former is available in the following design options:

Rail design is designed to attach to a rail, either horizontally or vertically. It comes with 2 handles and ri-spec^® ear specula dispenser.

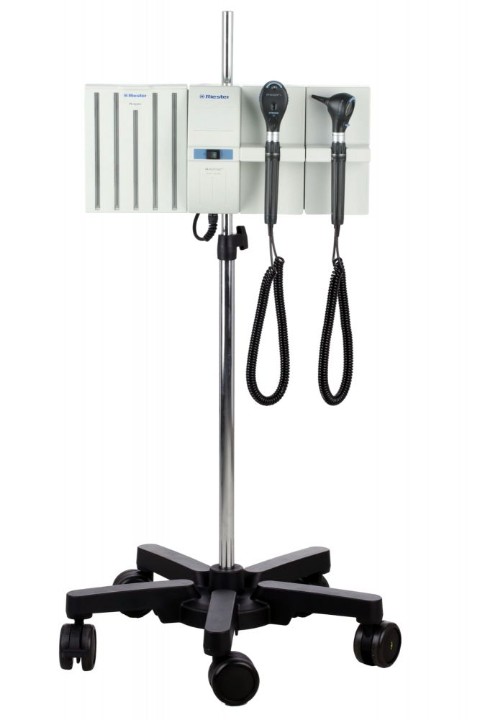

Mobile base is made of fibreglass and a chrome plated pole, which is height adjustable (105 – 130 cm / 41.3 – 51.2 in), is easy to move due to low friction, anti-static, lockable castors. Diameter (54 cm / 21.3 in). It comes with 2 handles and ri-spec ear specula dispenser.

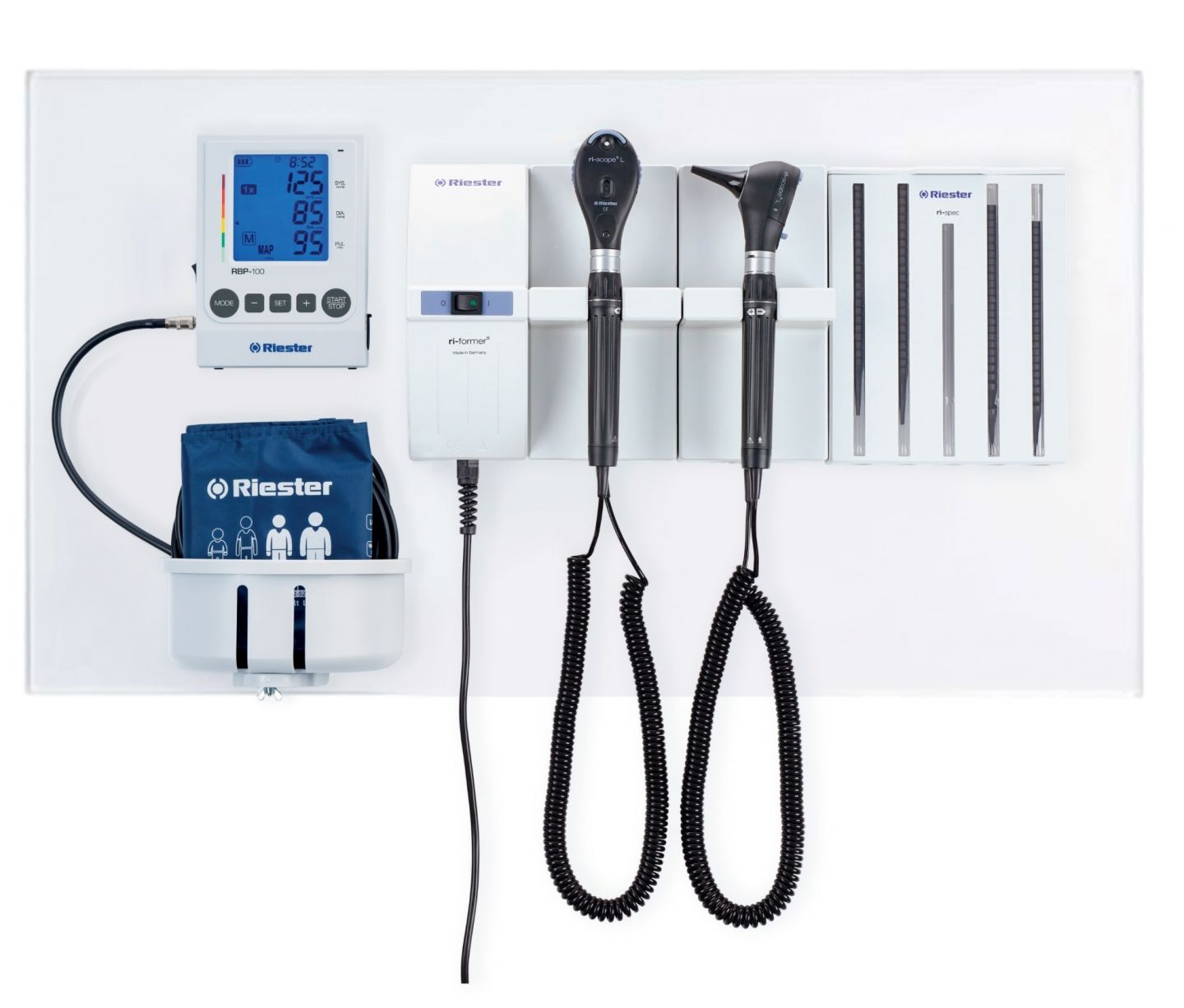

Wall design is designed to be attached to the wall. It comes with a choice of 1 or 2 handles and includes a wall mounting plate, plugs and screws.

Optional thermometry modules:

RPT-100 (Filac 3000) predictive probe thermometer
ri-thermo^® N infrared tympanic thermometer

Optional blood pressure modules:

Big ben^® aneroid sphygmomanometer (sphyg)
ri-medic automated and manual clinical-grade blood pressure monitor

Diagnostic handels

Centralised power supply supports up to 3 diagnostic handles which are ergonomically designed with rheotronic^® which provide continuously adjustable brightness as well as manual switching on and off.

The diagnostic handles are available with a choice of Riester ri-scope^® L and EliteVue instrument heads with a choice of LED or Xenon bulbs:

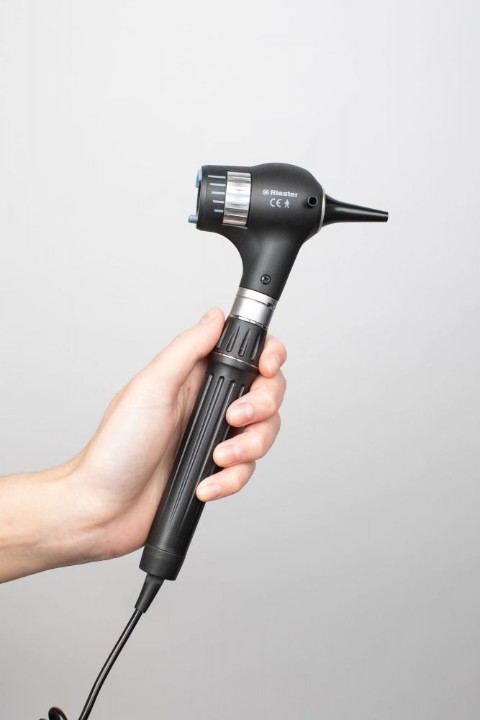

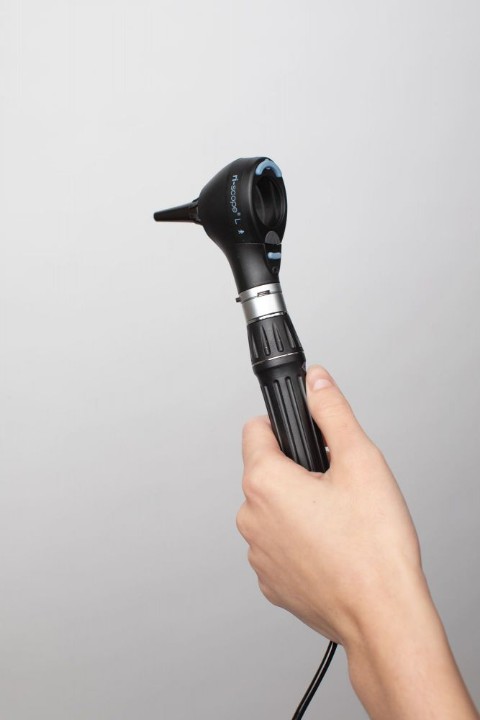

Otoscopes

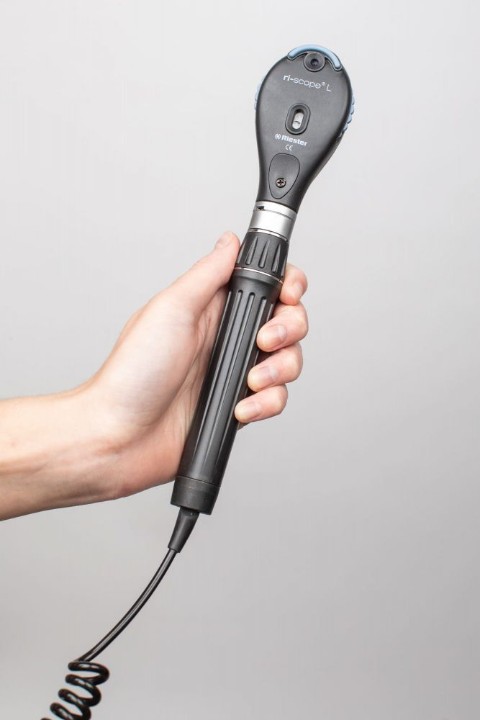

Ophthalmoscopes
Retinoscopes
Dermatoscopes
Tongue Blade Holders
Nasal Speculums
Bent Arm Illuminators

Accessories

ri-spec integrated ear specula dispenser for the otoscope and nasal specula has 5 tubes for 5 different sizes of specula, dispenses a new specula for each examination and is easy to re-fill and disinfect.
