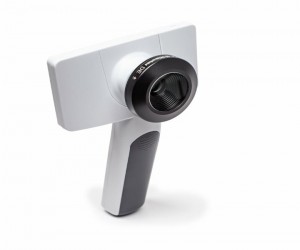

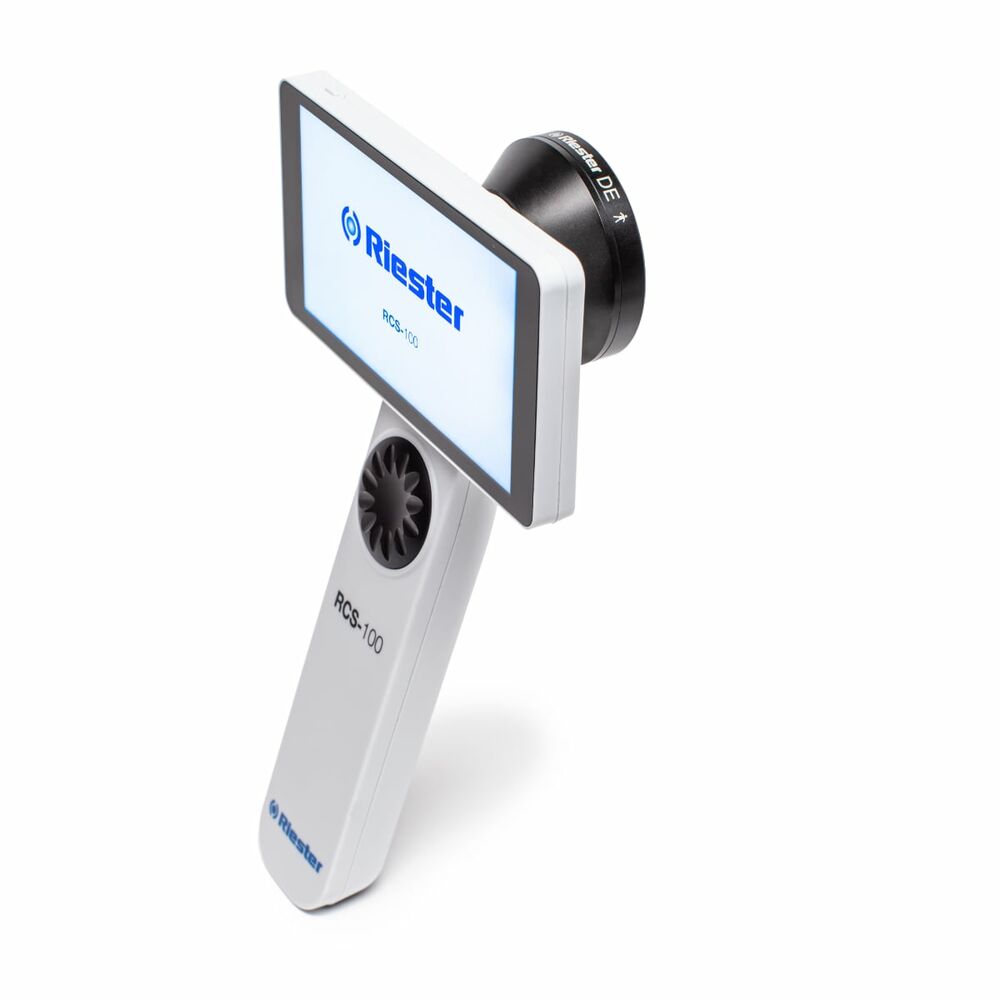

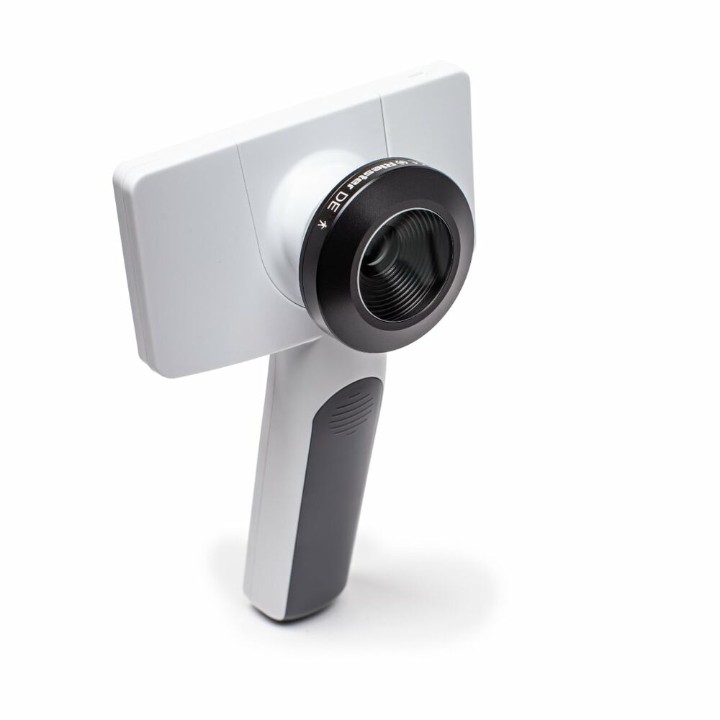

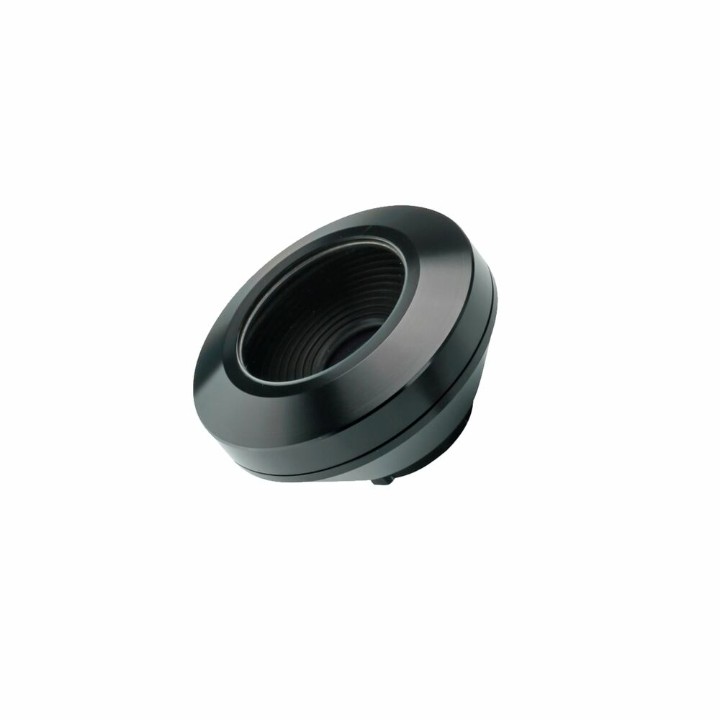

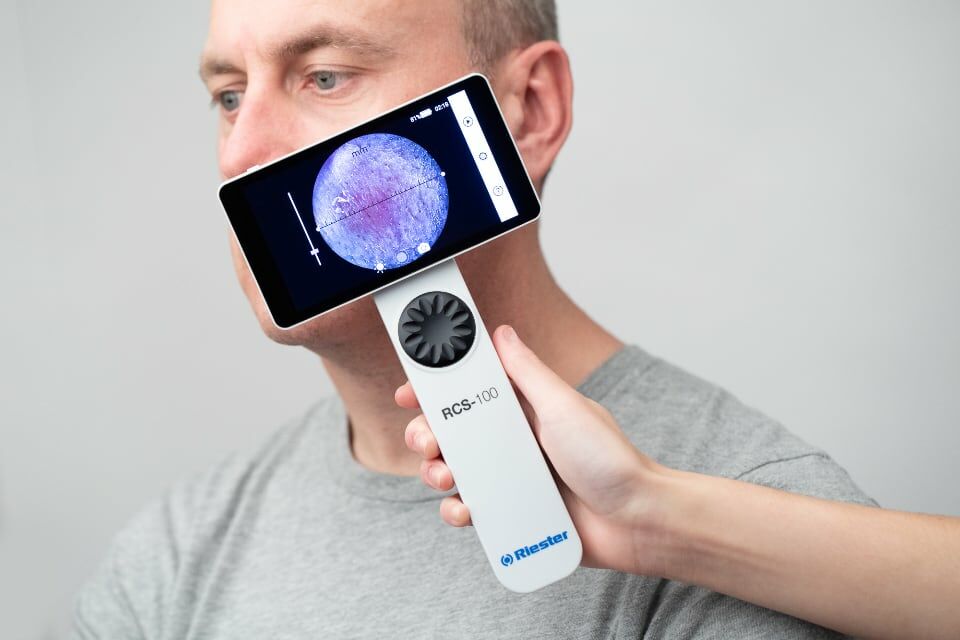

RCS-100 medical camera with dermatoscope lens can substitute or replace the traditional dermatoscopy devices, providing the additional benefit of capturing and sharing the digital photograph or video of the epidermis and dermis of the skin.

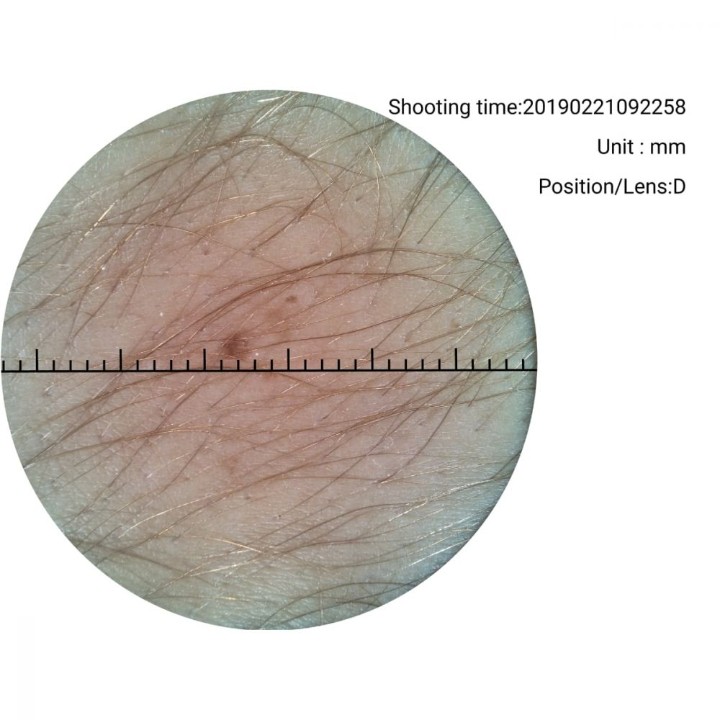

Utilising RCS-100 with dermatoscope lens can support accurate identification and measurement of skin lesions with a digital movable ruler without the need for immersion.
Images are particularly important because dermatology is a medical specialty where most of the diagnoses are made with visual observation. Like in many other medical specialties, in dermatology too clinical photography has become an integral part of standard care. Furthermore, photos are widely being used for documenting changes in pathology or healing process over time, as an effective communication tool, to make accurate and timely diagnosis, and as the most accurate tool in medical record.
| Dimensions in mm / in | 62.1mm x 62.1mm x 36.0mm 24.4 in x 24.4 in x 1.42 in |
| Weight | 108.5g, 3.83 oz |
| F/# (focal length/width) | 2.2 |
| Polarisation | Dermis / Epidermis |
| Object distance | 0mm |
| Field of view | 30mm Ø |
| Photography source | Natural light LED |
| LED colour temperance | 4000k |
| Optical magnification | 2x |
| Digital magnification | 4x |
| Displayed magnification | 2x - 8x |
| Cleaning optical lenses | Cleaning cloth or a lens cleaning tissue (e.g. THORLABS) |
| LCD screen | 5“ full HD colour TFT-LCD display 1.280 x 720 pixel including scratch proof cover |
| Focus | Automatic/manual |
| Image/Video format | Picture: JPEG / Video: MP4 |
| Battery | 3.6 V 2600 mAH 1S1P 18650-li-battery |
| Adaptor | Input: 100 ~ 240 V50 ~ 60 Hz, 0.3 A Output: DC 5 V/2 A |
| CMOS sensor | 8 MP (megapixels) |
| USB | OTG type C USB, UVC |
| RAM | 2 GB LPDDR3 |
| ROM | 16 GB |
| Optional | Extended memory 16 GB Wifi SD Card |
| Start time | < 30 sec. |
| Wake up time | < 5 sec. |
| Stand by time approx. | 7 days |
| Ambient temperature | + 10° C to + 40° C |
| Operating time | Video 3.5 hours |
| Charging time | 3 hours |
| Relative humidity | 15 % to 95 % rel. non condensing |
| Storage | 0° C to + 45° C |
| Cleaning control unit and charging adaptor | Soft cloth with alcohol (70 % ethyl alcohol) |
| Cleaning optical lenses | Cleaning cloth or a lens cleaning tissue (e.g. THORLABS) |
| Handset weight | 292 g |
| Handset dimensions mm (in) | 225 x 135 x 45 (8.86 x 5.31 x 1.77) |
