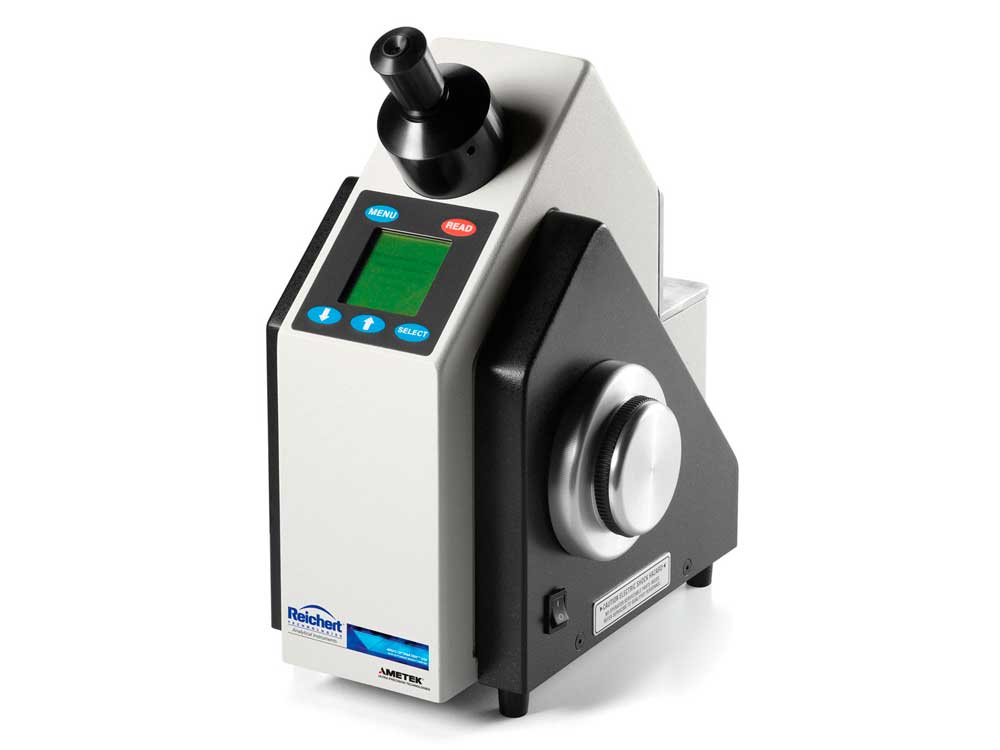

ARIAS OptiMatrix™ 500 Refractometer

Clinical & Diagnostic Instrument Inquiry About this product

Exclusive, world-class precision in a dual-array system

The Arias OptiMatrix™ 500 is the world's first transmitted light refractometer with precision comparable to high-end automatic reflected light refractometers.

This dual-array, automatic refractometer eliminates the need for shadowline intersect interpretation and delivers consistently repeatable results. The Arias OptiMatrix™ 500 compensates for temperature and delivers the results on an easy-to-read digital display.

Details:

Key Features

Dual linear scanned array detectors
Electronic interpretation of shadowline intersect
Direct reading of refractive index, temperature compensated refractive index, percent solids, temperature compensated percent solids, and temperature
Measurement of refractive index to 5 significant places and percent solids to 2 significant places
Range 1.30000 to 1.70000 Refractive Index and 0.00 to 95.00 % Solids
Accuracy +/- 0.00005 Refractive Index and +/- 0.03 % Solids
Precision to +/- 0.00002
Illumination using 589nm internal LEDs
Operating temperature range from 10°C to 80°C
Internal memory can store 14 custom measurement scales
Automatic Temperature Equilibration Detection
Multi-lingual on-screen instructions - English, German, French, and Spanish

Technical Specifications:

Catalog Number	1310499SA (110v to 240v with US, EU, and UK power cords)
Operation	Semi-automatic, transmitted light laboratory refractometer
Automatic Reading Range	Shadowline within the field of view
Sample Types	Transparent and translucent liquids and solids
Illumination	6 high intensity long life LEDs, 589nm
Reading Range	1.30000 to 1.70000 Refractive Index and 0.00 to 95.00 % Brix (ICUMSA)
Reading Accuracy	+/- 0.00005 Refractive Index and +/- 0.03 % Brix
Calibration	Set point with distilled water and span point with NIST oils
Temperature Control Method	Ports for external circulator
Temperature Control Range	10°C to 80°C
Temperature Precision	0.01°C
Prism Assembly	Glass prism sealed with epoxy to 416 grade stainless steel housing
Display Graphic	LCD display, 44mm W x 44mm H (1.75" x 1.75")
User Interface	Simple, effective 5-button operation with on-screen instructions
Data Output	Two 9-pin RS232C serial ports
Baud Rate	User-definable up to 57,600 bps
Channels	Channel 1 is Brix (ICUMSA) and channel 2-15 is user defined (numerous scales available)
Calibration	History Record Maintains hundreds of the most recent calibration records
Automatic Temperature Equilibration Detection	Automatically detects temperature equilibrium point between the sample and the instrument
Password	Setup and menu parameters can be password protected
Languages	English, German, French, and Spanish
Net Weight	7.84 kg (17.25 lb)
Warranty	2 Years
