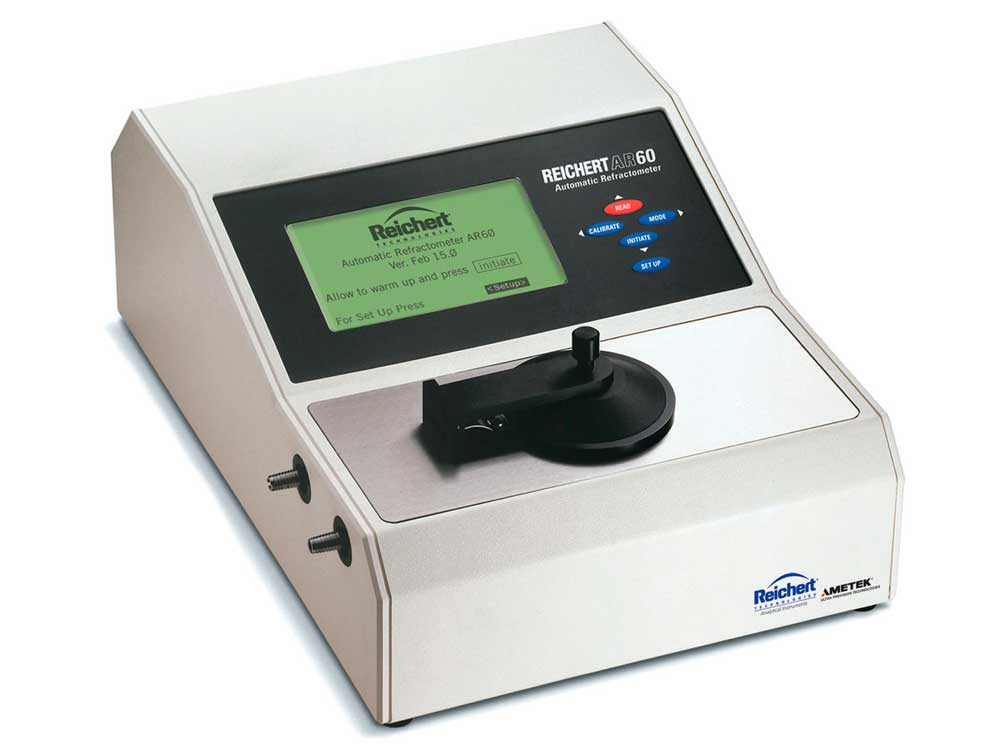

AR60 Automatic Digital Refractometer

Clinical & Diagnostic Instrument Inquiry About this product

The Reichert AR60 Automatic Digital Refractometer offers superior accuracy, repeatability, and ease of use. It is ideally suited for quality assurance and research applications. The AR60 offers automatic temperature compensation. For demanding applications that require temperature control, the AR60 is supplied with external ports to allow attachment to an external circulator. The AR60 measures opaque, translucent, and transparent samples.

The instrument features a refractive index measurement range from 1.3200 to 1.5200. The AR60 is used for concentration measurements, purity determination, and chemical identification. The instrument is ideal for a variety of industries including food and beverage, cosmetic, pharmaceutical and chemical applications.

Details:

Key Features

Sapphire prism for incredible durability
Refractive Index range of 1.3200 to 1.5200
Brix range of 0.0 to 90.0%
User-definable calibration points throughout the reading range ensure accuracy at every point
Accommodates sample types that are transparent, translucent or opaque
Simple calibration, NIST certified oils included
Calibration history log
Accessories enhance repeatability, accuracy and reliability for special applications that call for them

Reading Precision

AR60 has precision to 0.1% Brix or 0.0001 Refractive Index

Technical Specifications:

Operation	Automatic, Reflected Light Refractometer
Catalog Number	13106600 (110 to 220v with US, EU and UK power cords)
Sample Types	Transparent, translucent, and opaque liquids
Reading Range	1.3200 to 1.5200 Refractive Index;0.0 to 90.0% Brix
Precision	0.0001 Refractive Index, 0.1% Brix
Illumination	Halogen lamp, 589 nm
Calibration	Set Point or Set Point/Span user definable
Temperature	External Water Bath
Control Method Temperature	10° to 60° Celsius
Control Range Temperature	0.01° Celsius
Prism Assembly	Sapphire prism mechanically sealed with Teflon gasket to 416-grade stainless steel sample well
Display Graphic	LCD Display
User Interface	Simple, effective 5-button operation
I/O	2 RS-232-C serial ports

Warranty	2 years
Software Features	Calibration history record, programmable with up to 14 custom scales, password protected set-up, automatic sample equilibration detection, restore to factory option.
