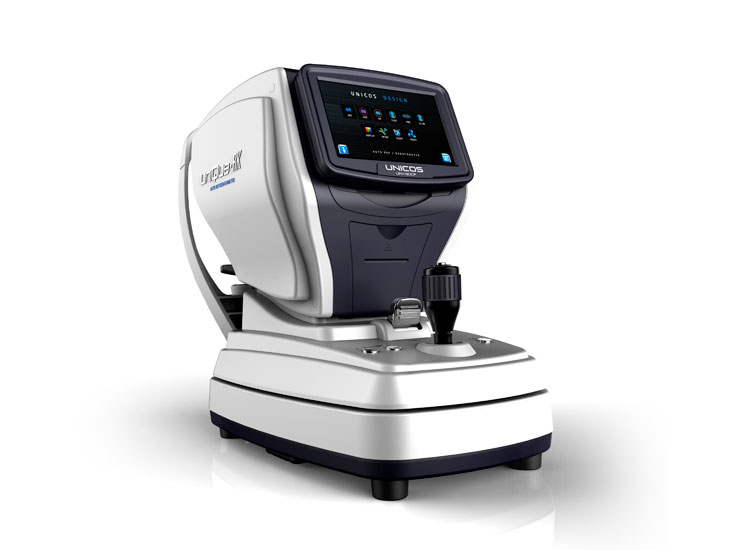

Auto Refracto - Keratometer URK-800F

Auto Refractor/Keratometer

The user could operate the equipment more convenient with full touch screen, clearer and larger screen size.

Precise temperature sensor compensates the temperature variation in measurement data

User can move new chin rest just by pressing the button and new designed sensor make you avoid wrong operation in advance.

Position sensor avoids wrong operation

The user can lock the equipment just by pushing and pulling the knob.

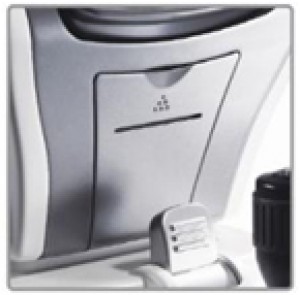

The printing paper with data result is cut automatically at high speed.

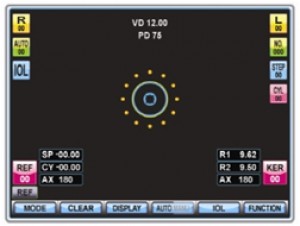

7 inch color TFT Touch LCD : Clearer and wider Graphic User Interface(GUI)
Convenient function for LCD monitor : 20° tilting monitor display for user convenience
Automatic cutting printer paper with high speed for user convenience
Enhanced measurement speed : Through specially designed image chips, speed improvement for REF measurement and more accurate measurement data
Convenient Lock Knob : Easy-to-use Lock function only using knob for user convenience
Measurement for Iris and Pupils diameters : By function of image capture, user can easily measure Iris and Pupils diameters.
Function of temperature compensation : Regardless of inner temperature, function of temperature compensation supports highly accurate measurement data.
Electric powered Chinrest
Wireless system via Bluetooth : It allows perfect data transmission with UDR-800 and ULM-800 regardless of working environment.

Specifications: URK-800F

Ref.	Vertex Distance (D)	0, 10, 12, 13.5, 15 mm
	Sphere(SPH)	- 25.00 ~ + 22.00 d (0.12, 0.25 d)
	Cylinder(CYL)	0.00 ~ +/- 10.00 d (0.12, 0.25d )
	Axis	1 ~ 180°
	Cylinder Form	-, +, +/-
	Pupil Distance	10 ~ 85 mm
	Min. Pupil Dia.	ø 2.0 mm
Ker.	Radius of Curvature	5.0 ~ 10.2 mm
	Corneal Power	33.00 ~ 67.50 d
	Corneal Astigmatism	0.00 ~ -15.00 d (0.05/0.12/0.25 d)
	Axis	1 ~ 180°
	Corneal Dia.	2.0 ~ 12.0 mm
Other	Internal Printer	Thermal Printer
	Display	7.0 inch TFC Color LCD Monitor, Touch
	Power Supply	AC 100 ~ 240 V, 50/60 Hz, 60-90VA
	Dim./Weight	275(W) x 525(D) x 450(H) mm / 18 Kg
