You can check how much crystalline lens are blurred by cataract and cornea is injured.
At the same time, Save 2 cuts for each eye (Max.4 cuts for one patient), Furthermore may compare the captured data.
The image chips to be specially designed allow REF measuring speed to be faster to get a more accurate and stable measurement data.

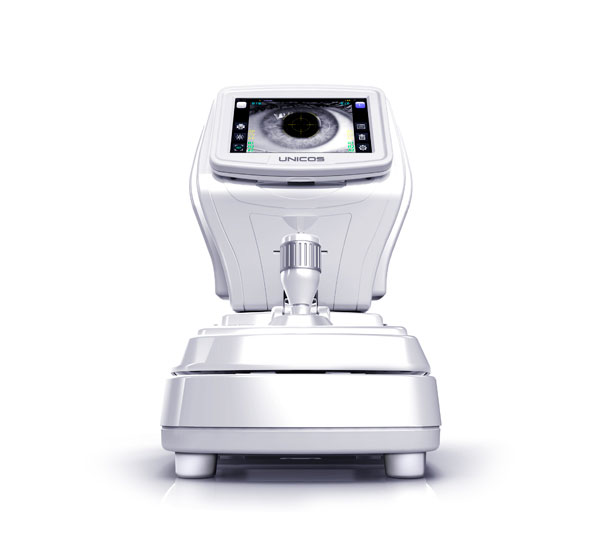

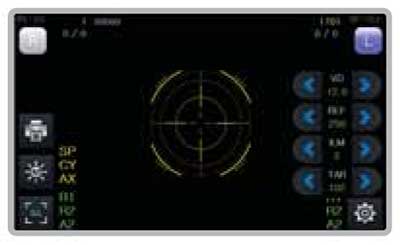

User can enjoy more clear images with specially designed image chips and 8 inch color TFT LCD. It serves swiveling and tilting to allow a convenient communication between examiners and examinees.

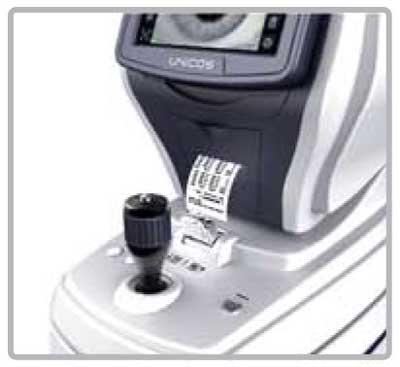

The printing paper with data is cut automatically with high speed.
User can move new chin rest just by pressing a button and new designed sensors prevent an user from doing wrong operation in advance.
The operator may alter set-up easily and faster by an unique design.
By image capture function, user can check Iris & Pupil diameters with ease to reinforce the accuracy of optometry.
You can check abnormal crystalline lenses, cataracts and scratches of corneas helping you to see how healthy patient’s eyes are.
With an enforced REF power, you can check SPH, CYL, and Axis that could not be measured in a normal mode.
It may measure periphery of cornea both horizontally and vertically from the center of cornea to get curvature and eccentricity value of all points.
It may allow the best fitting for contact lenses.
It serves many languages, basically 10 languages. (English, Spanish, Chinese, Japanese, German, French, Italian, Portuguese, Russian and Korean)
Various languages besides the above may be served according to the requirement of customer.
| Measurement Mode | R/K mode | Successive Refractometry & Keratometry |
| Ref mode | Refractometry | |
| Ker mode | Keratometry | |
| CLBC mode | Contact lens base curve measurement | |
| Ref. | Vertex Distance (D) | 0, 10, 12, 13.5, 15 mm |
| Sphere(SPH) | - 25.00 ~ + 22.00 d (0.12, 0.25 d) | |
| Cylinder(CYL) | 0.00 ~ +/- 10.00 d | |
| Axis | 1 ~ 180° | |
| Cylinder Form | -, +, +/- | |
| Pupil Distance | 10 ~ 85 mm | |
| Min. Pupil Dia. | ø 2.0 mm | |
| Ker. | Radius of Curvature | 5.0 ~ 10.2 mm |
| Corneal Power | 33.00 ~ 67.50 D | |
| Corneal Astigmatism | 0.00 ~ -15.00 D (0.12/0.25 D) | |
| Axis | 1 ~ 180° | |
| Corneal Dia. | 2.0 ~ 12.0 mm | |
| Other | Internal Printer | Thermal Printer / Auto Cutting |
| Power Saving | 1 ~ 10 minutes (Step 1 Minute) | |
| Display | 7 Inch LCD Colored Monitor | |
| Power Supply | AC 100 ~ 240 V, 50/60 Hz, 60-90VA | |
| Chinrest Movement | Max, 65mm, Motorized Operating | |
| Data Output | RS-232 Interface, Video Output, USB (for service) | |
| Dim./Weight | 275(W)mm x 525mm(D) x 440mm(H) / 18 Kg |
