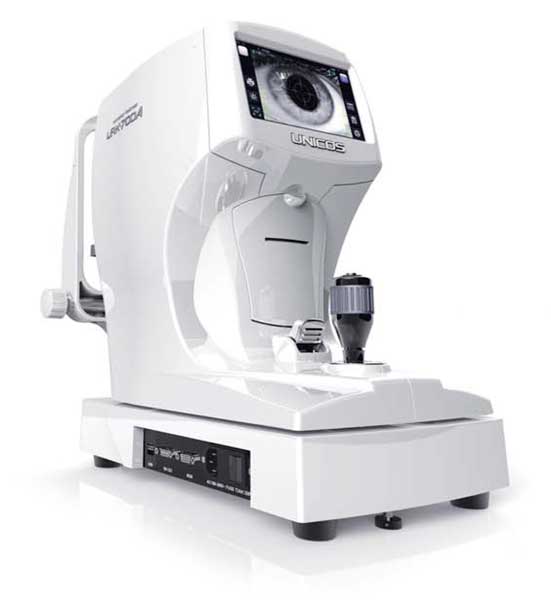

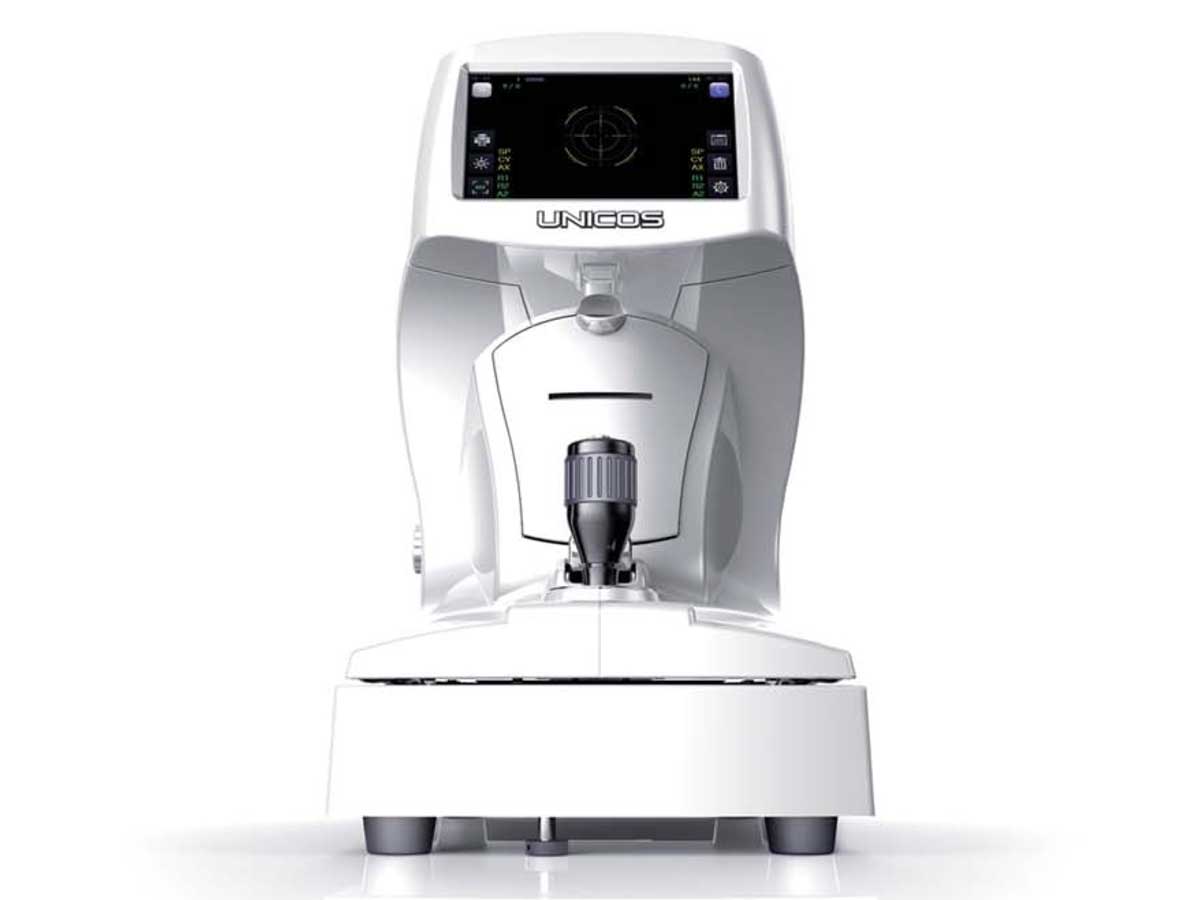

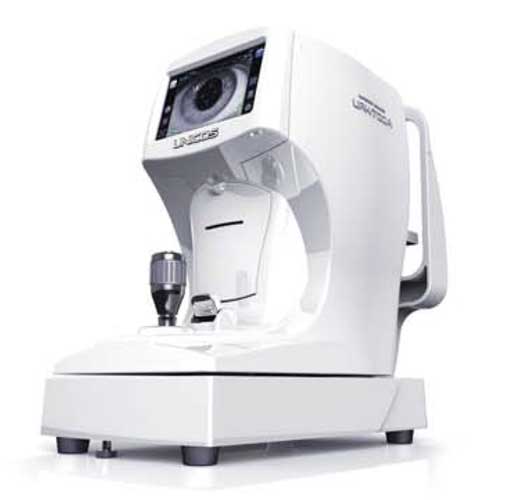

7″ LCD Wide Touch Screen is applied to URK-700A to allow an easy operation and to make an accurate diagnosis more quickly.
A measurement data and various functional program appear in color on a high clear and precise 7 inch Touch Wide LCD screen.
Mechanically, the main body moves smoothly right to left and forward to backward by an improved design for a base sliding structure.
A data communication is available among the related diagnostic devices by RS-232 and USB.

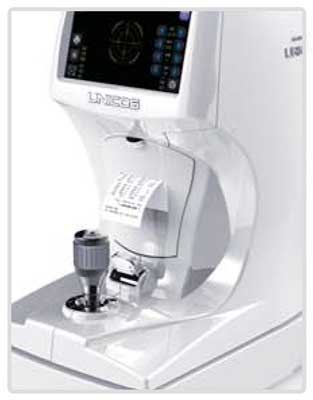

Convenient paper provision and paper replace-ment with a minimized printer problem.
The operator may alter set-up easily and faster.
S/W update could be done by USB memory easily and conveniently.
It serves many languages, basically 10 languages.(English, Spanish, Chinese, Japanese, German, French, Italian, Portuguese, Russian and Korean)
Various languages besides the above may be served according to the requirement of customer.
| Measurement Mode | R/K mode | Successive Refractometry & Keratometry |
| Ref mode | Refractometry | |
| Ker mode | Keratometry | |
| Refractometer | Vertex Distance (D) | 0, 10, 12, 13.5, 15 mm |
| Sphere(SPH) | - 25.00 ~ + 22.00 D (0.12, 0.25 D) | |
| Cylinder(CYL) | 0.00 ~ +/- 10.00 D | |
| Axis | 1 ~ 180° | |
| Cylinder Form | -, +, +/- | |
| Pupil Distance | 10 ~ 85 mm | |
| Min. Pupil Dia. | ø 2.0 mm | |
| Keratometer | Radius of Curvature | 5.0 ~ 10.2 mm |
| Corneal Power | 33.00 ~ 67.50 d | |
| Corneal Astigmatism | 0.00 ~ -15.00 D (0.12/0.25 D) | |
| Axis | 1 ~ 180° | |
| Corneal Dia. | 2.0 ~ 12.0 mm | |
| Other | Internal Printer | Thermal Printer |
| Power Saving | 1 ~ 10 minutes (Step 1 Minute) | |
| Display | 7 Inch LCD Colored Monitor | |
| Power Supply | AC 100 ~ 240 V, 50/60 Hz, 60-90VA | |
| Chinrest Movement | Manual, Max, 65mm | |
| Data Output | RS-232 Interface, USB (for service) | |
| Dim./Weight | 248(W) x 476(D) x 473(H) mm / 21 Kg |
